GMPCII communication driver for GIPAM-2200 T

GMPC II communication driver is the driver to communicate with power meter GIMAC/GIMACII/GIMACIII/GIPAM-2200 T model of LSIS Co., Ltd.  in Korea.

GIPAM-2200 T model communicate with GMPC controller( GMPC I, GMPC II, GMPC III, GMPC V, ... ) and computer read and write GMPC's data.

Note) Setting of GIPAM-2200 FM model

1. Read settings

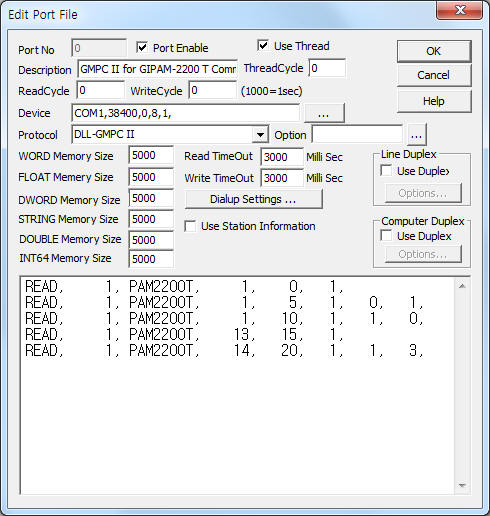

<Figure 1> is read setting example of GMPC II communication driver for GIPAM-2200 T model.

<Figure 1>  Read setting example of GMPC II communication driver for GIPAM-2200 T model

Device part of  <Figure 1> input Com Port(COM1 or TCP/IP, UDP/IP, etc), Baud Rate(38400), Parity Bit(0), Data Bit(8), Stop Bit(1) respectively according to setting of GMPC.

Baud rate, parity bit, data bit, stop bit can set by using switch of rear or front panel(GMPC controller).

GMPC II communication driver read schedule for GIPAM-2200 T

Read schedule setting parameters are as follows:

1) STATION – GIPAM-2200 T controller station number = 0 ~ 255.

2) Controller Model – Model = PAM2200T (when using GIPAM-2200 T model).

3) Read data type – Data type = 0, 1, 2, 3.... ( Cmd - 10h, refer to reference manual of GIPAM-2200 T )

4) Save Start Address for Communication Server – saveing start address of Communication Server.

5) Read Size – Read size.  Fixed according to read data type. ( Refer to <Table 1> ~ <Table 2> )

6) Sub1 command - Input Sub1 command according to controller model.

7) Sub2 command - Input Sub 2 command according to controller model.

Read schedule example)

READ,     1, PAM2200T,     1,    0,   1,

READ,     1, PAM2200T,     1,    5,   1,   0,   1,

READ,     1, PAM2200T,     1,   10,   1,   1,   0,

READ,     1, PAM2200T,    13,   15,   1,

READ,     1, PAM2200T,    14,   20,   1,   1,   3,

<Table 1> is data saving address and contents for each read command.

<Table 2> is each bit value for I/O status read command and  <Table 3> is relay status contnets for Relay config 1.

Note) Data type = Cmd number - 10h. Please refer to GIPAM-2200 T reference manual for more information about Cmd, Sub1, Sub2, etc.

GMPC II communication driver store the same data in WORD, DWORD, FLOAT memory, but the data format are different.

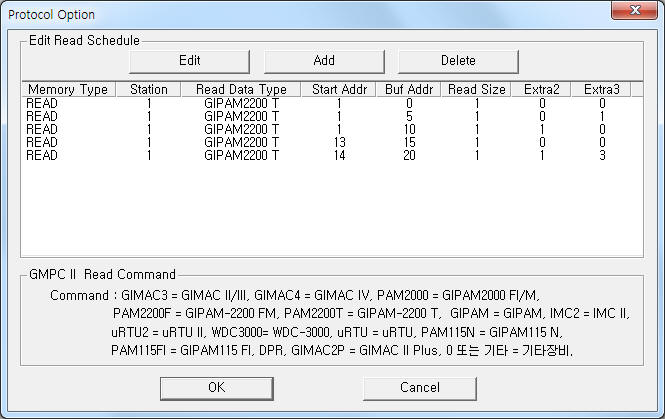

If you click the icon  in protocol option part, you can see the dialogue box such as <Figure 2>. you can also set read schedule by using this part.

<Figure 2> Example of GMPC II communication driver’s Option dialogue box

 You can set read schedule by using , , button and listbox of <Figure 2>.

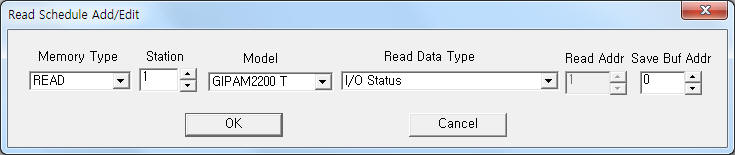

<Figure 3> Example of GMPC II communication driver’s read schedule Add/Edit dialogue box

When you click Add button or Edit button in dialogue box of <Figure 2>, dialogue box of <Figure 3> is shown.

2. Writing settings

You can write GIPAM-2200 T equipment's setting value by using write settings.

Note) Write for GIPAM-2200 T can control when the equipment's setting is 'remote'.

Digital Write

Digital write setting parameters are as follows:

1)  PORT                   Port no. (0 ~ 255)

2)  STATION             GIPAM-2200 T controller station number = 0 ~ 255.

3)  ADDRESS          Control command number(hex-decimal unit), refer to <Table 4>.

4)  Extra1                   Model name = PAM2200T. ( GIPAM-2200 T model )

5)  Extra2                   Selection of Control or Reset command.

0 – Control command,

1 – Reset command.

Write example 1)

PORT : 0  Station : 1,  ADDRESS : 0001,  EXTRA1 : PAM2200T,  EXTRA2 : 0

The setting parameter shown above is CB ON control example for 1 controller station GIPAM-2200 T.

CB ON write command can control when the controller's setting is 'remote'

Write example 2)

PORT : 0  Station : 1,  ADDRESS : 0002,  EXTRA1 : PAM2200T,  EXTRA2 : 0

The setting parameter shown above is CB OFF control example for 1 controller station GIPAM-2200 T.

CB OFF write command can control when the controller's setting is 'remote'

Write example 3)

PORT : 0  Station : 1,  ADDRESS : 0025,  EXTRA1 : PAM2200T,  EXTRA2 : 0

The setting parameter shown above is Control Contact 1 ON write example for 1 controller station GIPAM-2200 T.

Control Contact 1 ON write command can control when the controller's setting is 'remote'

Write example 4)

PORT : 0  Station : 1,  ADDRESS : 002D,  EXTRA1 : PAM2200T,  EXTRA2 : 0

The setting parameter shown above is Control Contact 1 OFF write example for 1 controller station GIPAM-2200 T.

Control Contact 1 OFF write command can control when the controller's setting is 'remote'

Write example 5)

PORT : 0  Station : 1,  ADDRESS : 0000,  EXTRA1 : PAM2200T,  EXTRA2 : 1

The setting parameter shown above is CB Run Time reset example for 1 controller station GIPAM-2200 T.

CB Run Time reset write command can control when the controller's setting is 'remote'

Write example 5)

PORT : 0  Station : 1,  ADDRESS : 0023,  EXTRA1 : PAM2200T,  EXTRA2 : 1

The setting parameter shown above is  Io2 max reset example for 1 controller station GIPAM-2200 T.

 Io2 max reset write command can control when the controller's setting is 'remote'

Analog Write

GMPC II communication driver for GIPAM-2200 T model don't support analog write.

3. Connection of main power and communication cable

 Connection of main power and communication cable are as follows.

Connection of main power

Please connect 120 V AC main power to 24, 25 connector at GIPAM-2200 T controller's rear panel.

Note) GIPAM-2200 T Password input method : you can input 'password' by using 'UP' and 'Down' button of frong panel. ( Inital(default) Password : 0000 )

Connection of I-NET communication cable

Please connect I-NET RS-485 communication cable to 94 or 99 ( Rx0 ),  95 or 100  ( Rx1 ), 92 or 97  ( Tx0 ), 93 or 98  ( Tx1 ) connector such as <Figure 4>.

Note) When you connect GIPAM-2200 T and GMPC, you have to connect Rx = Tx, Tx = Rx respectively. ( I-NET cable = offered by LSIS Co., Ltd. when you buying GMPC or GIPAM-2200 T)

4. Setting of GMPC V

Connection of GMPC V almost equal with GMPC III. So you can refer to connection of GMPC III part.

<Figure 4> is apperance of GMPC V controller.

<Figure 4> Apperance of GMPCV controller

Note) Password input method : you can input 'password' by using 4 button of frong panel. ( Inital(default) Password : press 'FUNCTION', 'SELECT', 'UP', 'ENTER' button 2 times by turns )

Setting of GMPC V)

1. Time & Date   :  Date and Time setting of GMPC V.

2. Model   :  Model, protocol and communication method of  GMPC V.

Model | Protocol  : select GMP(I-NET protocol of GMPC) or MODBUS protocol,

Model | Media   : select communication media of GMPC V.

Model | Main Port :  select Primary(P) or Secondary(S).

3. Serial   :  select Com1 or Com2 port of GMPC V.

4. Network(This)  : select LAN1, LAN2 Ethernet port.

Network(This) | Ethernet Port  : select primary ethernet port of GMPC V.

Network(This) | IP_0  :  input IP Address of Primary Ethernet,

Network(This) | Port_0 No_0  :  input Port number of Primary Ethernet,

Network(This) | Netmask_0  :  input Subnet mask of Primary Ethernet,

Network(This) | Gateway_0  :  input Gateway IP Address of Primary Ethernet,

Network(This) | Host_IP0   :  input Host(PC, etc) IP Address of Primary Ethernet.

After setting GMPC V controller, save the setting by using 'ENTER' button.

Also, you have to reset(power off and power on) in order to apply the setting value. (don't reset, GMPC V use the old setting value)

Note) When you using the 'Ethernet' communication, you have to set Host(PC, etc) IP address at GMPC V controller.

Also if you don't use gateway at network, please set 'Gateway' IP address to '0.0.0.0'.

Note) You must input power for the first time of GIMAC-IV, etc, and input power GMPC V.

If you input power GMPC V the first and input GIMAC-IV, etc, GMPC V can't find connected equipment. So it may not be able to communicate with connected equipment.
