If you select the Modify Server Properties from Server menu, dialog box will come up like <Figure 1>.
Also, it makes same result to select Modify Server Properties from Server short menu at Server/Group/Item display area.

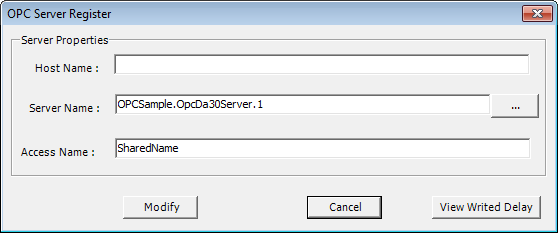

<Figure 1> OPC Server Register dialogbox for Modifying OPC Server
Host Name : Input the Host Name or IP address. (In case of same PC, it is possible to skip)
Server Name : Input the OPC Server Name.
Access Name : This is used instead of Server Name at LocalMain/Plc_Scan. (It doesn't need to input)
View Writed Delay : It shows the status of output time delay which OPC Client print out.
Notice) You can connect to LocalMain/Plc_Scan, by using the Server Name or Access Name
But, if you don't input the Access Name, just use the Server Name.
If you press
button, Server Browse dialog box will come up. You
can select the OPC Server to use, at this dialog box.
Relate items)
