Example for Writing User Menu

You can write user menu as follows by using menu script and default menu, etc.

Menu format you want

Add the 'Screen by floor' menu next File menu of default menu, and insert the movable menu to 1F ~ 5F graphic screen.

Assumption

Assume that menu was written as follows.

1F SCREEN = 1F.modx,

2F SCREEN = 2F.modx,

3F SCREEN = 3F.modx,

4F SCREEN = 4F.modx,

5F SCREEN = 5F.modx

Writing menu script

At 'File|Script|Menu Script...' of studio, write the script at MENU_SCRIPT_000 as follows.

@LoadModule("1F.modx");

At 'File|Script|Menu Script...' of studio, write the script at MENU_SCRIPT_001 ~ 004 as follows.

@LoadModule("2F.modx"); // MENU_SCRIPT_001

@LoadModule("3F.modx"); // MENU_SCRIPT_002

@LoadModule("4F.modx"); // MENU_SCRIPT_003

@LoadModule("5F.modx"); // MENU_SCRIPT_004

Writing user menu

Add the 'Screen by floor' menu to Startup.mnu as follows. (Refer to <Figure 1>)

…

POPUP, "Menu by floor"

BEGIN

MENUITEM, "1F SCREEN", MENU_SCRIPT_000

MENUITEM, "2F SCREEN", MENU_SCRIPT_001

MENUITEM, "3F SCREEN", MENU_SCRIPT_002

MENUITEM, "4F SCREEN", MENU_SCRIPT_003

MENUITEM, "5F SCREEN", MENU_SCRIPT_004

END

…

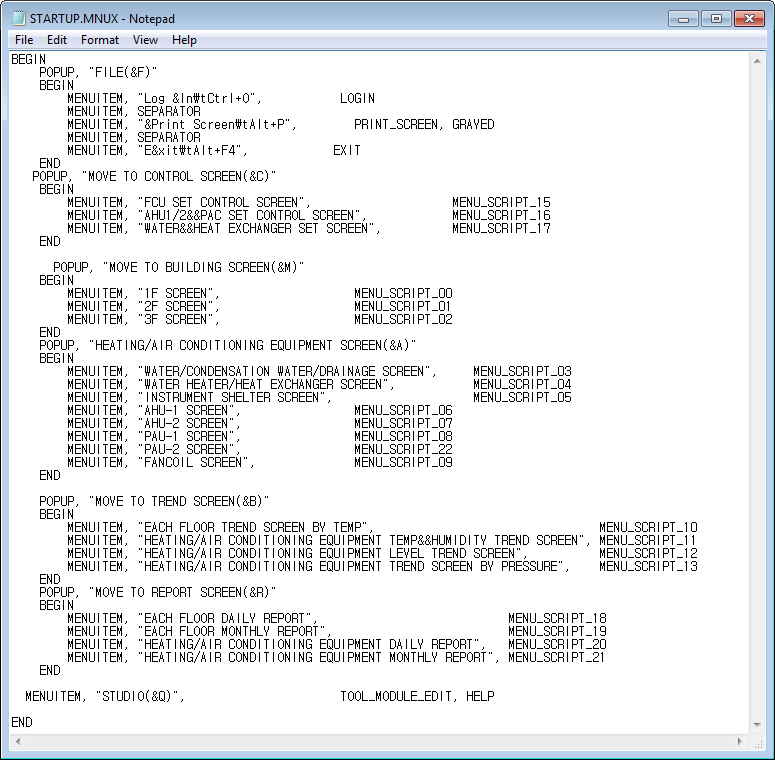

<Figure 1> Example for writing user menu

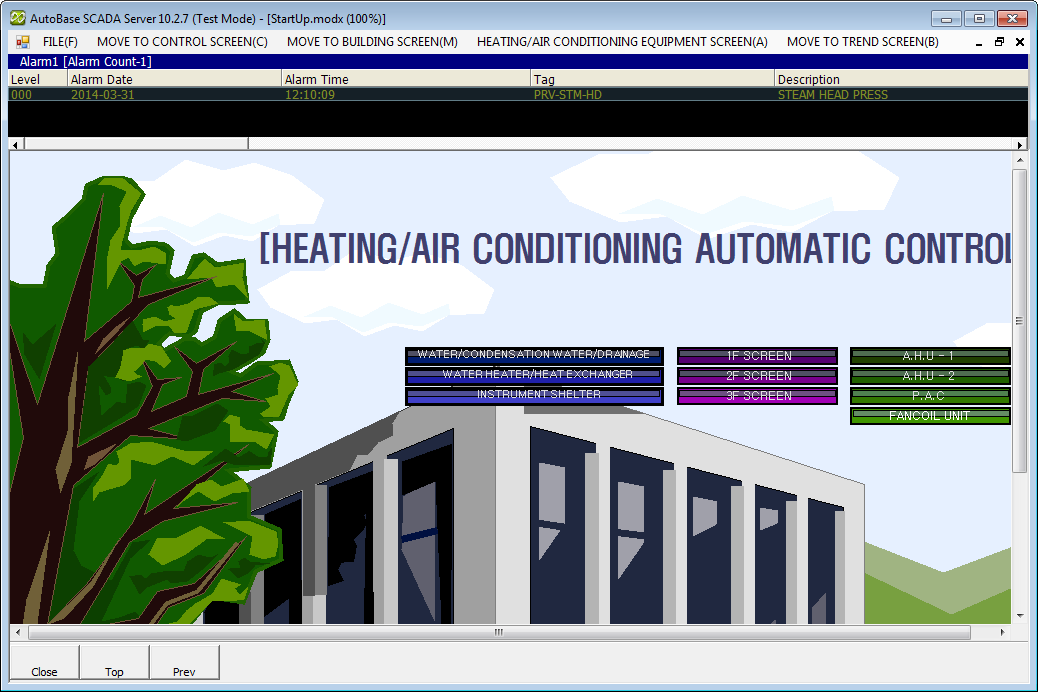

<Figure 2> is example for LocalMain program's menu screen, after writing user menu as above.

<Figure 2> LocalMain program in case of using user menu

Relate items)

Default Menu of LocalMain
