Lighting Control

Lighting Control has a purpose of managing lighting of the whole building. The monitoring screen supervises the total 7 floors in general, and the each section is operated by the related floor.Users are able to control lighting at a time by putting every light in an office into a group basically based on individual lighting control. According to the schedule, it is programmed to operate ON/OFF automatically, and to reserve schedule. Several PLC is connected to a telecommunication line in parallel using 485 Link functions of PLC.

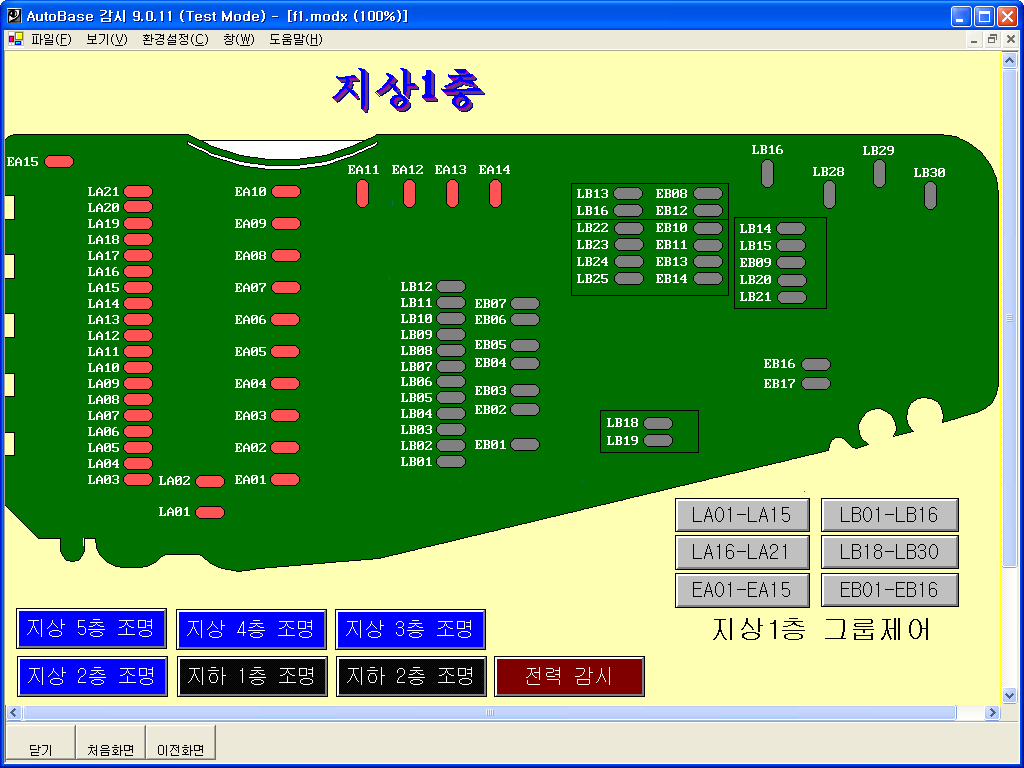

Control Screen for Each Floor

• Available to monitor/control each floor.
• Able to control every lighting in each office at a time by putting all of it into a group.
• Displays the lighting locations in detail, and helps to manage it efficiently.

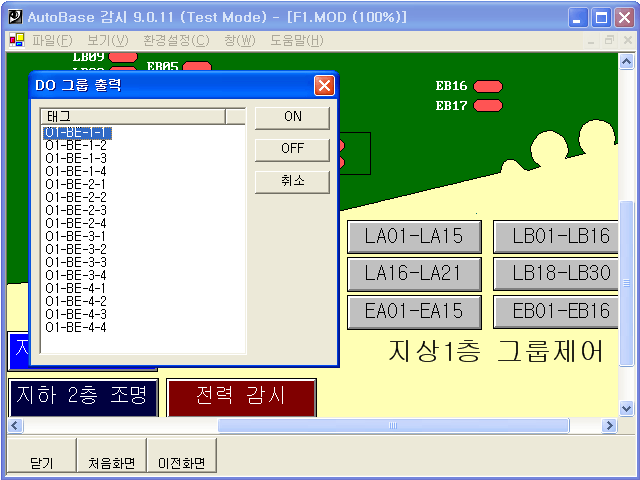

Group Control Screen

• Available to control groups simply by putting all lighting in offices on the same floor together.
• Functions to control ON/OFF of several lighting fixtures at a time.

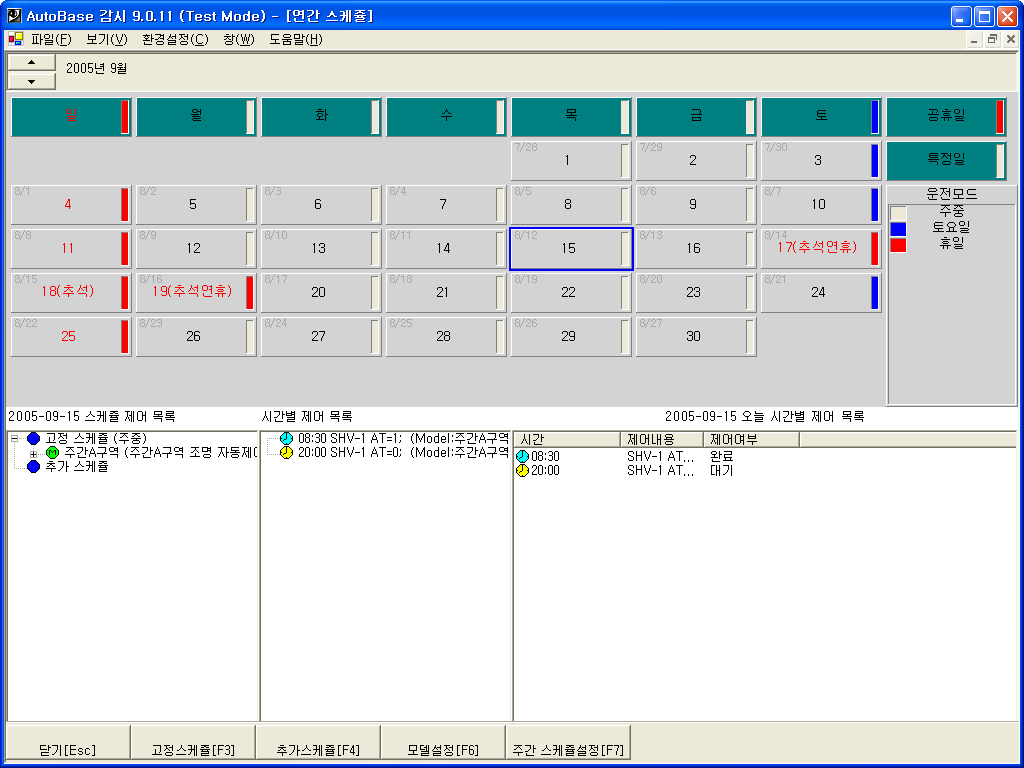

Annual Reserved Schedule

• Screens to change/confirm annual reserved schedule
• Able to use all tags.
• Can operate automatically script or ON/OFF at a specified time.
• Available to add schedule.

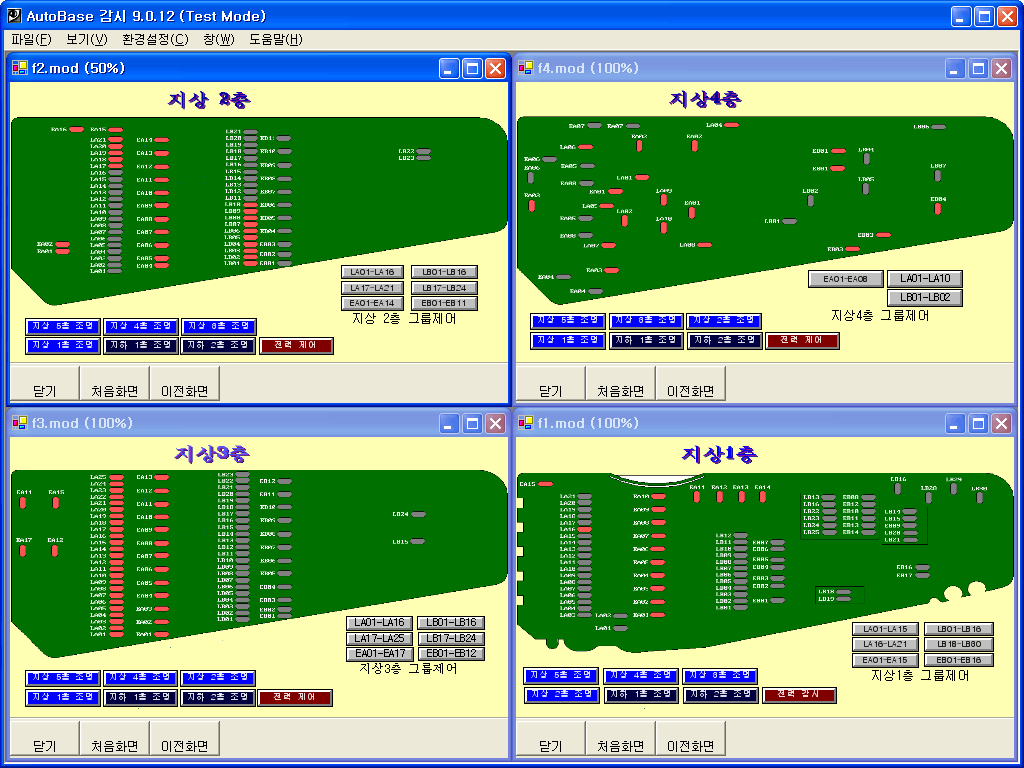

Simultaneous Monitoring of Several Areas

• Functions to monitor various floors at the same time.
• Easy to manage entire floors due to control ones in a screen

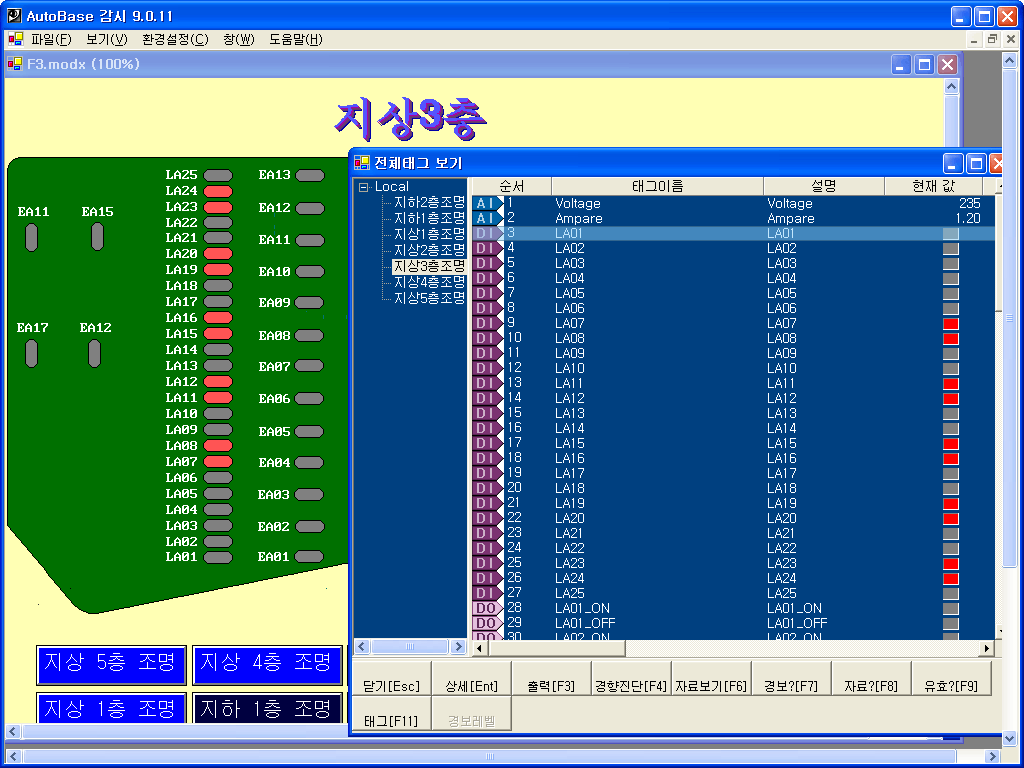

Group Tag Screen

• Monitors generally tags by putting ones in a specific area in a group.
• Monitors and controls by joining different kinds of tags into a group.

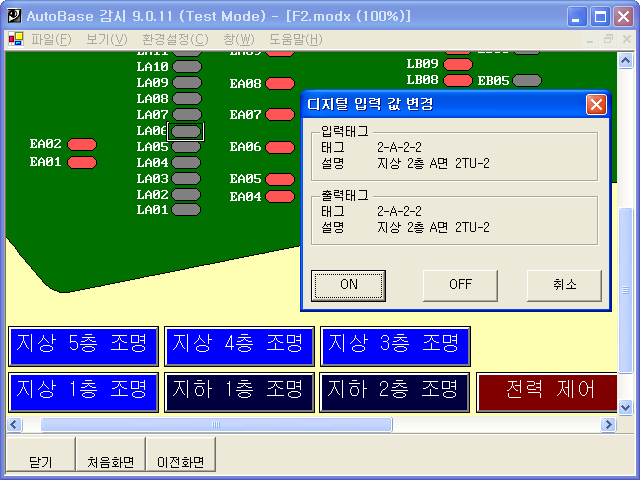

Individual Control for Each Light

• Individual Control Screen as a basic function for lighting
• Feasible to use dialog boxes, and to set up to control lighting at a time according to the present status on the screen
