It is data object to display the current value of string tag.
Select tag dialogue box is displayed, when you select the 'ST current' at 'Insert Basic Data' dialogue box.
<Figure 1> Example of inserting data object for ST current data object
If you double click the ST current data object, dialogue box comes up such as <Figure 2>.

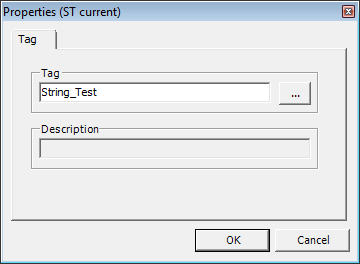

<Figure 2> Properties (ST current) dialogue box
<Figure 3> is example of 'View as run mode' for <Figure 1> at LocalMain or Reporter Editor.
<Figure 3> Example of 'View as run mode' for <Figure 1>
You can edit ST current data object, in cell text edit box, as following ther order.
1) Letter for data start(=),
2) Data command(StCurr),
3) String tag(String_Test etc),
Example of editing a cell text) =StCurr, String_Test,
Notice) It displays normal value, when LocalMain is run. (in case of LocalMain not run, it always not display anything.)
