CI Line Display Communication Driver is the driver to communicate with 6 digit display.

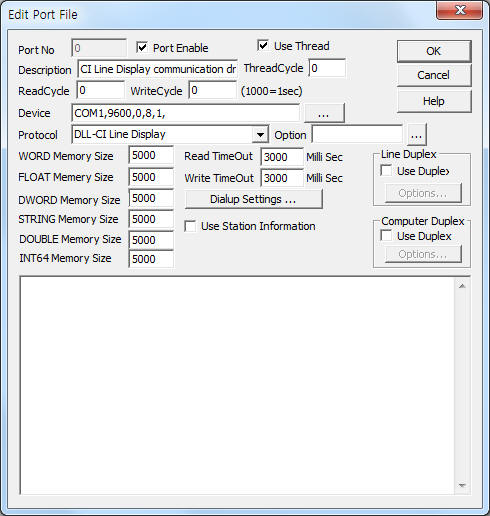

<Figure 1> is read setting example of CI Line Display communication driver.
|
|
| <Figure 1> Read setting example of CI Line Display communication driver |
Device part of <Figure 1> input Com Port(COM1), Baud Rate(9600), Parity Bit(0), Data Bit(8), Stop Bit(1) respectively.
CI Line Display controller's baud rate, parity bit, data bit, stop bit are fixed to 9600, 0, 8, 1.
You can set CI Line Display controller by using write settings.
Bit Write
CI Line Display communication driver don't support bit write.
Word Write
Word write setting parameters are as follows:
1) PORT Port no. (0 ~ 255)
2) STATION Line number : 1 ~ 9.
3) ADDRESS Don't care.
4) Extra1 Don't care.
5) Extra2 Don't care.
Write example 1)
PORT : 0 , STATION : 3, ADDRESS : 0000, EXTRA1 : , EXTRA2 : , out put value = :123456
The setting parameter shown above is an example of word write data '123456' value to 'SDI' line.
Line number
LINE 1 : TOTAL
LINE 2 : Electronic CO., LTD.
LINE 3 : SDI
LINE 4 : Corning
LINE 5 : Electric CO., LTD.
LINE 6 : TR #1
LINE 7 : TR #2
LINE 8 : TR #3
LINE 9 : TR #4
