JEM10 Poly Phase Meter communication driver is the driver to communicate with phase controller of SCIENTIFIC COLUMBUS in U.S.A.

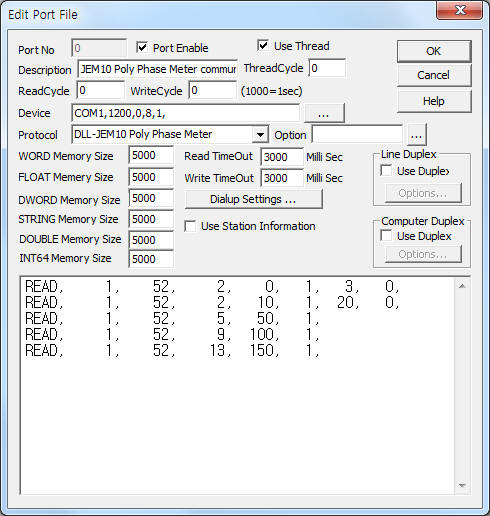

<Figure 1> is read setting example of JEM10 Poly Phase Meter communication driver.
|
|
| <Figure 1> Read setting example of JEM10 Poly Phase Meter communication driver |
Device part of <Figure 1> input Com Port(COM1), Baud Rate(1200), Parity Bit(0), Data Bit(8), Stop Bit(1) respectively, according to controller.
In protocol option part, you can set the following: high, low level password(Defualt = 000000,000000). Each argument is a comma-delimited.
JEM10 Poly Phase Meter communication driver read schedule
Read schedule setting parameters are as follows:
1) Station – 0 ~ 255 controller station number.
2) Read command – Command = 52(read of register), .... Please refer to JEM10 technical manual for more read command.
3) Extension number – extension number = 1 ~ .
4) Save start address for Communication Server – Saving start address of Communication Server.
5) Read Size – Read data size. ( 52 read command and read size greater than 2 = read of all register data )
6) Register number – Read register number when 52 read command.
7) Password level – 0 or space = don't use password, 1 = high level password, 2 = low level password.
Read schedule example)
READ, 1, 52, 2, 0, 1, 3, 0,
READ, 1, 52, 2, 10, 1, 20, 0,
READ, 1, 52, 5, 50, 1,
READ, 1, 52, 9, 100, 1,
READ, 1, 52, 13, 150, 1,
<Table 1> is contents and format for normal register ID.
| ID | Contents | Format |
| 001 | Time Present | |
| 002 | Date Present | |
| 003 | KWH
|
####.## |
| 004 | KWH REC | ####.## |
| 005 | KVARH
|
####.## |
| 006 | KVARH REC | ####.## |
| 007 | V2H DEL | #####.# |
| 008 | KVARHQ1 | ####.## |
| 009 | KVARHQ2 | ####.## |
| 000 | KVARHQ3 | ####.## |
| 011 | KVARHQ4 | ####.## |
| 012 | MAX KW
|
###.### |
| 013 | Time of Peak KW REC | |
| 014 | MAX KW REC | ###.### |
| 015 | Time of Peak KW REC | |
| 016 | MAX KVAR
|
###.### |
| 017 | MAX KVAR REC | ###.### |
| 018 | MAX KVA
|
###.### |
| 019 | MAX KVA REC | ###.### |
| 020 | Power Factor at KW
|
##.## |
| 021 | Power Factor at KW REC MAX | ##.## |
| 022 | Average Power Factor | ##.## |
| <Table 1> Contents and format for normal register ID | ||
You can control JEM10 Poly Phase Meter by using write settings.
Digital Write
Digital write setting parameters are as follows:
1) PORT Port no. (0 ~ 255)
2) STATION 0 ~ 255 controller station number.
3) ADDRESS Extension number. (11, 12 write command = don't care)
4) Extra1 Writing number.( Extra2 : 11 or 12 = password of 6 digit charater )
5) Extra2 Password level.
0 or space = don't use password, 1 = high level password, 2 = low level password,
3 – high level password activate, 4 – low level password activate,
11 – high level password change, 12 – low level password change.
Analog Write
Analog write setting parameters are as follows:
1) PORT Port no. (0 ~ 255)
2) STATION 0 ~ 255 controller station number.
3) ADDRESS Extension number. ( Extra2 : 11 or 12 = don't care )
4) Extra1 Writing number.( Extra2 : 11 or 12 = password of 6 digit charater )
5) Extra2 Password level.
0 or space = don't use password, 1 = high level password, 2 = low level password,
3 – high level password activate, 4 – low level password activate,
11 – high level password change, 12 – low level password change.
