eRTU Server for KEMCO communication driver is the driver to communicate with eRTU controller for data reading from KEMCO(Korea Energy Management Cooperation) client equipment.
Note) eRTU Client for KEMCO communication driver

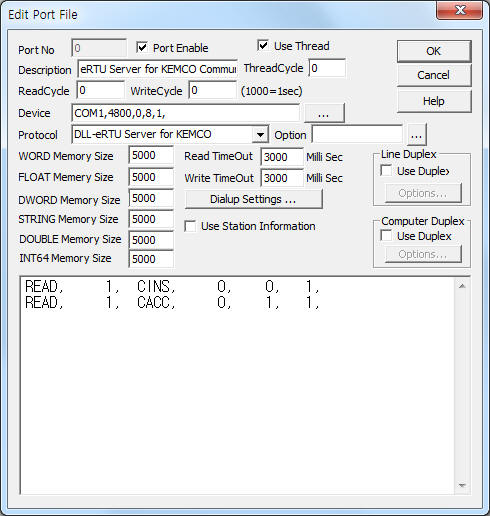

<Figure 1> is read setting example of eRTU Server for KEMCO communication driver.
|
|
| <Figure 1> Read setting example of eRTU Server for KEMCO communication driver |
Device part of <Figure 1> input Com Port(COM1), Baud Rate(4800), Parity Bit(0), Data Bit(8), Stop Bit(1) respectively, according to setting of controller.
eRTU Server for KEMCO communication driverĄ¯s read schedule
Read schedule setting parameters are as follows:
1) Station – Controller station number = 1 ~ 255.
2) Read Command – Command = WINS, WACC, CINS, CACC. ( Refer to <Table 1> )
3) Read Start Address – Don't care.
4) Save start address for Communication Server – Saving start address of Communication Server.
5) Read Size – Fixed to 1. ( Refer to <Table 1> )
Read schedule example)
READ, 1, CINS, 0, 0, 1,
READ, 1, CACC, 0, 1, 1,
<Table 1> is read commands and data saving address of eRTU Server for KEMCO communication driver.
Read Command |
Contents |
Data Saving Address |
Remarks |
WINS |
Read of current power |
Start Add + 0 : value of current power |
DWORD unit data.
Refet to DWORD memory Communication Server |
WACC |
Read of watt-hour power |
Start Add + 0 : value of watt-hour power |
|
CINS |
current amount of heat read |
Start Add + 0 : amount of heat |
|
CACC |
sum amount of heat read |
Start Add + 0 : amount of heat |
|
| <Table 1> Read commands and data saving address of eRTU Server for KEMCO communication driver | |||
eRTU Server for KEMCO communication driver store the same data in WORD, DWORD, FLOAT memory, but the data format are different.
If you click the icon
in protocol option part, you
can see the dialogue box such as <Figure 2>. you can also set read schedule by
using this part.
 |

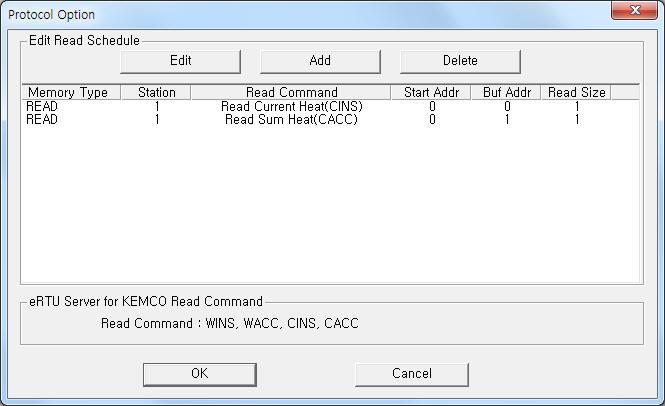

| <Figure 2> Example of eRTU Server for KEMCO communication driverĄ¯s Option dialogue box |
You can set read schedule by using
,
,
button and listbox of <Figure
2>.
 |

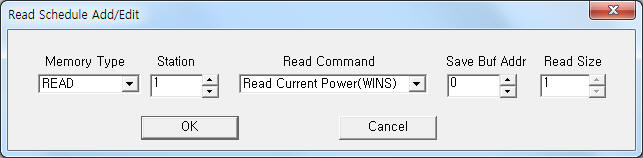

| <Figure 3> Example of eRTU Server for KEMCO communication driverĄ¯s read schedule Add/Edit dialogue box |
When you click Add button or Edit button in dialogue box of <Figure 2>, dialogue box of <Figure 3> is shown.
eRTU Server for KEMCO communication driver don't support 'Writing settings'.

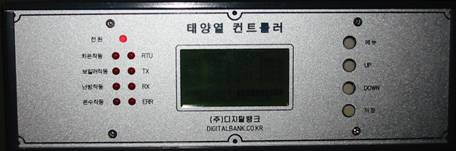

<Figure 4> is appearance of eRTU Server for KEMCO controller. ( can be exist different type or shape )
 |
| <Figure 4> Appearance of eRTU Server for KEMCO controller |
