ZBus-LCMS communication driver



ZBus-LCMS Communication Driver is the driver to communicate with controller of Planet Co.,Ltd. in Korea.



1. Read settings



<Figure 1> is read setting example of ZBus-LCMS communication driver.

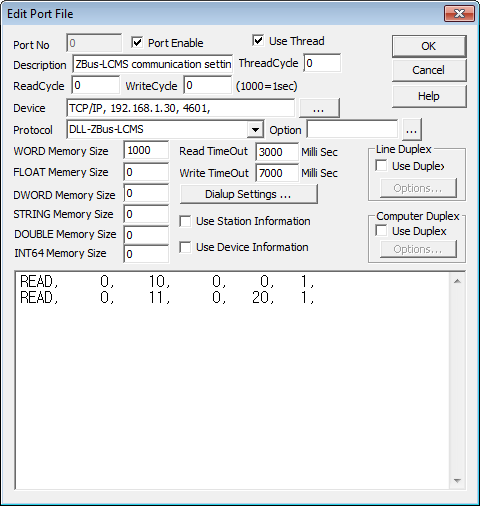

<Figure 1> Read setting example of ZBus-LCMS communication driver

Device part of  <Figure 1> input Device type(TCP/IP), IP address of PLC(192.168.1.30), service port of TCP/IP protocol ( 4601 ),respectively, according to setting of controller.



ZBus-LCMS communication driver read schedule

Read schedule setting parameters are as follows :

1) Station – ZBus-LCMS controller PGW number (0 ~ 65535). But, don't care, in case of LPCU command. (Fixed to 0)

2) Read command – Hexadecimal command number such as 10, 11, 12, 13, 15, A0, 60.1.10, ・ etc. ( Refer to <Table 1>)

3) Read start address – Don't care. (Set as 0)

4) Save Start Address for Communication Server - Saving start address of Communication Server.

5) Read Size – Set as 1. (Read size is decided according to each command, refer to <Table 1>)



Read schedule example)

READ,     0,    10,     0,    0,   1,

READ,     0,    11,     0,   20,   1,



<Table 1> is data saving address and contents of ZBus-LCMS communication driver for each read command.

Command number Contents Data Saving Address and Contents Note
10 Read of All LPCU Set Info

Start Add + (ID-1) * 3 + 0 : State (Refer to <Table 2>),

Start Add + (ID-1) * 3 + 1 : 1st lamp capacity(actual capacity/10),

Start Add + (ID-1) * 3 + 2 : 2nd lamp capacity(actual capacity/10)

LPCU command
11 Read of All LPCU State Info

Start Add + (ID-1) * 4 + 0 : State 1 (Refer to <Table 3>),

Start Add + (ID-1) * 4 + 1 : State2 (Refer to <Table 3>),

Start Add + (ID-1) * 4 + 2 : Lamp1 current used current,

Start Add + (ID-1) * 4 + 3 : Lamp2 current used current

12 Read of All LPCU Schedule

Start Add + 0 : First schedule hour,

Start Add + 1 : First schedule minute,

Start Add + 2 : First schedule Device ID,

Start Add + 3 : First schedule Operating conditions,

(5, 2 bit = 1, 2 lighting On/Off)

・.

13 Read of LMCU date/time

Start Add + 0 : Year (0 ~ 99),

Start Add + 1 : Month (1 ~ 12),

Start Add + 2 : Day (1 ~ 31),

Start Add + 3 : Hour (0 ~ 23),

Start Add + 4 : Minute (0 ~ 59)

15 Read of Wake-up PLC Daemon History

Start Add + 0 : First History Year(0 ~ 99),

Start Add + 1 : First History Month(1 ~ 12),

Start Add + 2 : First History Day(1 ~ 31),

Start Add + 3 : First History Hour(0 ~ 23),

Start Add + 4 : First History Minute(0 ~ 59),

・.

A0 Read of LMCU Version

Start Add + 0 : Version Year(0 ~ 99),

Start Add + 1 : Version Month(1 ~ 12),

Start Add + 2 : Version Day(1 ~ 31)

B0 Read of ZBus I/O State All

Start Add + (ID-1) * 2 + 0 : State,

Start Add + (ID-1) * 2 + 1 : Error ( 0 : Normal, 1 : Error)

・,

60.1.10 Read of group lighting control setting according to illuminance limit value

Start Add + 0 : Setting/Clear(Set : 1, Clear : 0 ),

Start Add + 1 : Group ID(Refer to <Table 4>),

Start Add + 2 : On illuminance limit value(actual illuminance value/10),

Start Add + 3 : Off illuminance limit value(actual illuminance value/10),

PGW Setting
60.1.12.?
( ? = Device ID)
Read of each lighting control setting according to illuminance limit value

Start Add + 0 : Set or not (0x06 : Set : 0x15 : Not set),

             (If there isn't setting, 1 ~ 4 value not exist)

Start Add + 1 : Device ID,

Start Add + 2 : Set/Clear(Set : 1, Clear : 0 ),

Start Add + 3 : On illuminance limit value(actual illuminance value/10),

Start Add + 4 : Off illuminance limit value(actual illuminance value/10),

60.1.14 Read of current illuminace value

Start Add + 0 : Illuminance value(byte),

Start Add + 1 : Illuminance value(byte)

60.1.20.?
( ? = Port No : 0 ~5 )
Read of setting information according to Sensing of Movement/Access Control

Start Add + 0 : Set or not(0x06 : Set : 0x15 : Not set),

             (If there isn't setting, 1~ value not exist)

Start Add + 1 : Port No,

Start Add + 2 : Set/Clear(Set : 1, Clear : 0 ),

Start Add + 3 : Off Timer(1 ~ 59 min),

Start Add + 4 : Number of Device (Max 10),

Start Add + 5 ~ : Number of ID as much as number of Device

60.1.30 Read of PGW date/time

Start Add + 0 : Year(0 ~ 99),

Start Add + 1 : Month(1 ~ 12),

Start Add + 2 : Day(1 ~ 31),

Start Add + 3 : Hour(0 ~ 23),

Start Add + 4 : Minute(0 ~ 59),

Start Add + 5 : Second(0 ~ 59)

60.1.40 Read of lighting reservation information

Start Add + 0 : Number of lighting reservation,

Start Add + 1 : First reservation hour(0 ~ 23),

Start Add + 2 : First reservation minute(0 ~ 59),

Start Add + 3 : First control group ID(Refer to <Table 4>),

Start Add + 4 : First control operating condition,

(5, 2 bit = 1, 2 lighting On/Off)

・.

60.2.0 Read of ZCT State

Start Add + (ID-1) :  Device state, (ID = 1 ~ 55)

(State = 0x11 : On,  0x12 : Off,  0x1F : Fail)



ZCT Series
60.3.F1 Read of RS-485 illuminance value

Start Add + 0 : Illuminance value(byte),

Start Add + 1 : Illuminance value(byte)

RS-485
60.4.10
Port I/O Output Port State

Start Add + 0 : State value. (3 ~ 0 bit : Port 3 ~ 0)

Port I/O
60.4.20 Read of Input Port state

Start Add + 0 : State value. (5 ~ 0 bit : State of Port 5 ~ 0)

              ( 0 : Open,   1 : Close )

60.5.10 Read of Relay state

Start Add + 0 : Relay 7 ~ 0 state ( 7 ~ 0 bit )

              ( Bit, 0 : Open,   1 : Close )

Relay Control
60.5.30 Read of device date/time

Start Add + 0 : Year(0 ~ 99),

Start Add + 1 : Month(1 ~ 12),

Start Add + 2 : Day(1 ~ 31),

Start Add + 3 : Hour(0 ~ 23),

Start Add + 4 : Minute(0 ~ 59),

Start Add + 5 : Second(0 ~ 59)

60.5.40 Read of lighting reservation information

Start Add + 0 : Number of lighting reservation,

Start Add + 1 : First reservation hour(0 ~ 23),

Start Add + 2 : First reservation minute(0 ~ 59),

Start Add + 3 : First control group ID(Refer to <Table 4>),

Start Add + 4 : First control operating condition,

(5, 2 bit = 1, 2 lighting On/Off)

・.

60.5.FD Read of Firmware version

Start Add + 0 : Year,

Start Add + 1 : Month,

Start Add + 2 : Day

<Table 1> Read command number and contents of ZBus-LCMS communication driver

Bit position

Remarks

7 bit

0 : 1 lighting,

1 : 2 lighting

6~4 bit

0 : Sodium,

1 : Metal

3~0 bit

Not use(always 0)

<Table 2> Each bit contents of All LPCU Set Info state byte

Bit position

Remarks

7 bit

0 : 1, 2 lighting Disable,

1 : 1, 2 lighting Enable

6 bit

0 : 1, 2 lighting Off,

1 : 1, 2 lighting On

5 bit

1 : Stabilizer Error

4 bit

1 : Lamp Error

3 bit

1 : Relay Error

2 bit

1 : Electrical Short of Light Pole

1 bit

1 : Electrical Short of Cable

0 bit

-

<Table 3> Each bit contents of All LPCU State Info state 1, 2 byte

Group ID Value

Group Type

0x00

All Device ID

0x20

Even number ID

0x21

Odd number ID

0x30

Devide ID address by 3, a remainder of 0

0x31

Devide ID address by 3, a remainder of 1

0x32

Devide ID address by 3, a remainder of 2

<Table 4> Group Type according to Group ID Value

If you click the icon in protocol option part, you can see the dialog box such as <Figure 2>. you can also set read schedule by using this part.

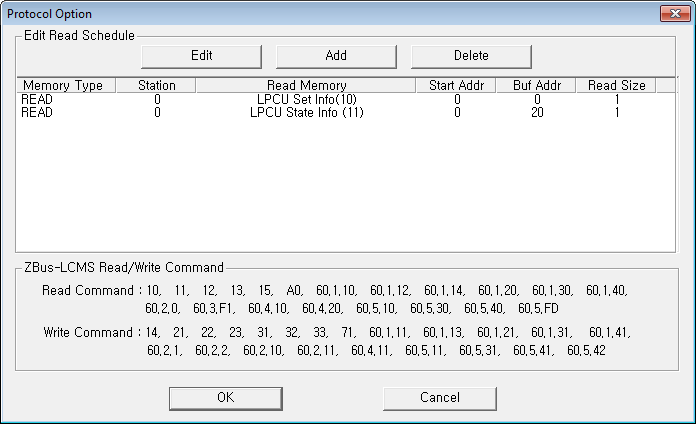

<Figure 2> Example of ZBus-LCMS communication driver's Option dialog box

You can set read schedule by using , , button and listbox of <Figure 2>.

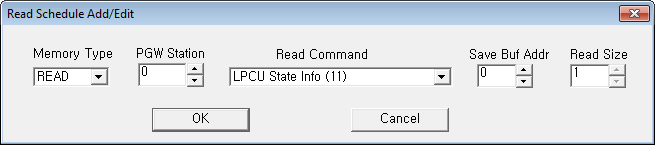

<Figure 3> Example of ZBus-LCMS communication driver's read schedule Add/Edit dialog box

When you click Add button or Edit button in dialog box of <Figure 2>, dialog box of <Figure 3> is shown.



2. Writing settings

You can register/delete the LPCU and PGW equipment setting by using write settings.



Digital Write

Digital write and analog write have the same setting parameters except output value.



Analog Write

Analog write setting parameters are as follows :

1) Port             Connected Port no. (It is not COM no.)

2) Station         Equipment PGW number. ( 0 ~ 65535 ), but it isn't used in case of LPCU command. (Fixed to 0)

3) Address      Group ID etc to output. (It decided use or not, according to command type)

4) Extra1        Hexadecimal command number such as 10, 11, 12, 13, 15, A0, 60.1.10, ・ etc. (Refer to <Table 5>)

5) Extra2        Parameter value to output : Output value and Use or not are decided by command type. (Refer to <Table 5>)



Note) Individual control output(Address 1 or 2) of command number 71 of ZBus-LCMS communication driver writing setting is structured as read a current state value, and then output after calculating bit.

Command No.(Extra1) Contents Station Address

Extra2

Output value

Note
14 Write current time(Synchronize with computer time) - -

-

-

LPCU command
21 Add schedule

Group ID : Hexadecimal top 2 digit (Refer to <Table 4>),

Output value : Hexadecimal sub 2 digit (Refer to <Table 6>)

Hour : Decimal top 2 digit (0 ~ 23),

Min : Decimal sub 2 digit (0 ~ 59)

22 Delete schedule



Hour : Decimal top 2 digit (0 ~ 23),

Min : Decimal sub 2 digit (0 ~ 59)

23 Delete all schedules





31 Add LPCU  ID to Add

2 light lamp capacity : Hexadecimal top 2 digit,

1 light lamp capacity : Hexadecimal sub 2 digit

Output value as byte unit

(Refer to <Table 6>)

32 Delete LPCU ID to Delete





33 Delete all LPCU





71 Control LPCU ID or Group ID to control Select output position in case of individual control
0 = Control all lights
1 = Control 1 light,
2 = Control 2 light

Select individual/group control

0 = Individual Control,

1 = Group Control

Output value

0 = Off,

1 = On

B1 Add ZBus I/O ID



 ID number to add

B2 Delete ZBus I/O ID



ID number to delete

B3 Delete all ZBus I/O ID





60.1.11 Control the group lighting equipment according to illuminance value PGW ID( 2 byte = 0 ~ 65535 ) Group ID
(Refer to <Table 4>)

Off illuminance limit value : Hexadecimal top 2 digit,

On illuminance limit value : Hexadecimal sub 2 digit

0 = Clear,

1 = Set

PGW Setting
60.1.13 Control the individual lighting equipment according to illuminance value Device ID

Off illuminance limit value : Hexadecimal top 2 digit,

On illuminance limit value : Hexadecimal sub 2 digit

0 = Clear,

1 = Set

60.1.21.?
( ? = Port No : 0 ~5 )
Control the lighting equipment according to Sensing of Movement/Access Control Off Timer
(1 ~ 59 min)

Number of Device : Hexadecimal top 2 digit,

  (0 or 1)

Device ID : Hexadecimal sub 2 digit

0 = Clear,

1 = Set

60.1.31 Set the PGW time
(Synchronize with computer time)






60.1.41 Lighting schedule reservation

Group ID : Hexadecimal top 2 digit, (Refer to <Table 4>),

Output value : Hexadecimal sub 2 digit (Refer to <Table 6>)

Hour : Decimal top 2 digit (0 ~ 23),

Min :  Decimal sub 2 digit (0 ~ 59)

60.1.42 Delete lighting schedule reservation



60.2.1 Add ZCT Device



Device ID to register

ZCT Series
60.2.2 Delete ZCT Device



Device ID to delete

60.2.10 Lighting batch control Group ID
(Refer to <Table 4>)



On/Off control value

0 = Off, 1 = On

60.2.11 Lighting individual control Device ID



On/Off control value

0 = Off, 1 = On

60.1.F1 Delete ZCT Modem House Code





60.4.11 Control Port I/O Output Port   0 ~ 3 Port No



Control value

0 = Open, 1 = Close

Port I/O
60.5.11 Relay Control   0 ~ 7 Relay No., or Number combination
(Extra2 = 1)

0 = Control by relay number,

1 = Group Control

Control value

0 = Open, 1 = Close, (Individual)

0 ~ 255 (Group)

Relay Control
60.5.31 Time setting of equipment
(Synchronize with computer time)






60.5.41 Lighting schedule reservation

Group ID : Hexadecimal top 2 digit, (Refer to <Table 4>),

Output value : Hexadecimal sub 2 digit (Refer to <Table 6>)

Hour : Decimal top 2 digit (0 ~ 23),

Min : Decimal sub 2 digit (0 ~ 59)

60.5.42 Delete lighting schedule reservation



<Table 5> Range and contents of output parameter by write command number which used at ZBus-LCMS communication driver
Bit

Output Type

7 bit

1 : Reset

6 bit

-

5 bit

1 : 1 lighting ON,  0 : 1 lighting Off

4 ~ 3 bit

-

2 bit

1 : 2 lighting ON,  0 : 2 lighting Off

1 ~ 0 bit

-

<Table 6> Meaning of each output bit for output

Write example 1)

PORT : 0   STATION : 1   ADDRESS : 0000  EXTRA1 : 71  EXTRA2 : 0

The setting parameter shown above is example of writing setting.

After writing as analog, you can control(On = 1/Off = 0) the no.1 and 2 lighting of no.1 Device ID.



Write example 2)

PORT : 0   STATION : 1   ADDRESS : 0001  EXTRA1 : 71  EXTRA2 : 0

The setting parameter shown above is example of writing setting.

After writing as analog, you can control(On = 1/Off = 0) the no.1 lighting of no.1 Device ID.



Write example 3)

PORT : 0   STATION : 0   ADDRESS : 0000  EXTRA1 : 71  EXTRA2 : 1

The setting parameter shown above is example of writing setting.

After writing as analog, you can control(On = 1/Off = 0) the no. 1 and 2 lighting of all Device ID which is connected to 0 port.



Write example 4)

PORT : 0   STATION : 257   ADDRESS : 0000  EXTRA1 : 60.2.10  EXTRA2 : 0

The setting parameter shown above is example of writing setting.

After writing as analog, you can control(On = 1/Off = 0) the no. 1 and 2 lighting of all Device ID of no.257(0101h) PGW ID which is connected to 0 port.



3. Appearance of ZBus-LCMS equipment

<Figure 4> and <Figure 5> are appearance of ZBus-LCMS equipment(demo).

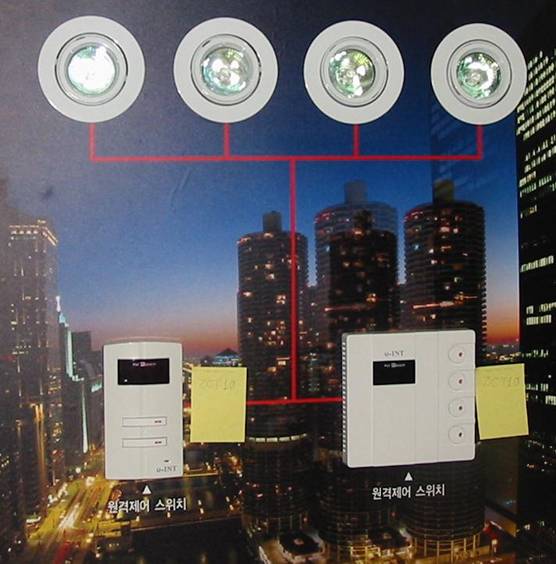

<Figure 4> Example of LPCU equipment of ZBus-LCMS

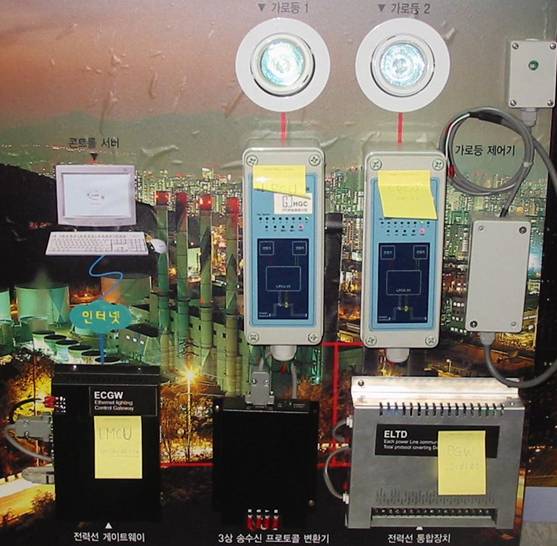

<Figure 5> Example of ZBus-LCMS PGW equipment
