YASKAWA NX100 Robot Communication Driver



YASKAWA NX100 Robot is driver to communicate with NX100 Robot device of Yaskawa Co. in Japan.



1. Read settings



<Figure 1> is read setting example of YASKAWA NX100 Robot communication driver.

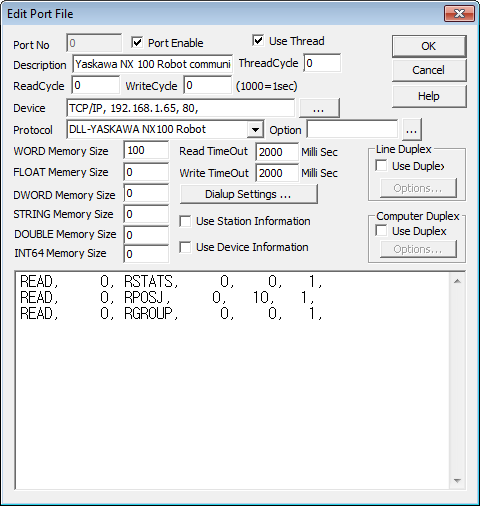

<Figure 1> Read setting example of YASKAWA NX100 Robot driver

Device part of <Figure 1> input Device type(TCP/IP), IP address of NX100 device(192.168.1.65), Service port(fixed to 80).



YASKAWA NX100 Robot driver read schedule

Read schedule setting parameters are as follows:

1) STATION – Don't care.

2) Read Command – Set among the RALARM, RPOSJ, RPOSC, RSTATS, RJSEQ, RGROUP, RJDIR, RUFRAME, SAVEV and IOREAD. (Refer to <Table 1>)

3) Read Start Address – Don't care.

4) Save Start Address for Communication Server - Saving start address of Communication Server.

5) Read Size – Always fixed to 1. Fixed to according to read command. (Refer to <Table 1>)

6) Command Data1 – Set the command data 1 value of read command such as RPOSC, RUFRAME, SAVEV, IOREAD. (Refer to <Table 1>)

7) Command Data2 – Set the command data 2 value of read command such as RPOSC, SAVEV, IOREAD. (Refer to <Table 1>)



Read schedule example)

READ,     0,  RSTATS,     0,    0,   1,

READ,     0,   RPOSJ,      0,   10,   1,

READ,     0,  RGROUP,     0,   20,   1,



<Table 1> is command type and save address of read data for YASKAWA NX100 Robot communication driver.

Read command Command contents

Command data1

Command data2

Save address for read value

RALARM Read Error Alarm

None

Save address + 0 : Error code 1

Save address + 1 : Error data  1

Save address + 2 : Error code 2

Save address + 3 : Error data  2

¡¦

Save address + 8 : Error code 5

Save address + 9 : Error data  5

RPOSJ Read current position of  Joint coordinate system

None

Save address + 0 ~ 5 : The number of S/L/U/R/B/T-axis pulse

Save address + 6 ~ 11 : The number of 7/8/9/10/11/12-axis pulse

RPOSC Read current position of  Specific coordinate system

Specification of coordinate system

(0 = Base,  1 = Robot, 2 ~ 25 = User1 ~ 24)

with or without external axis

(0 = without,  1 = with)

Save address + 0 ~ 2 : X/Y/Z coordinate value

Save address + 3 ~ 5 : Wrist each TX/TY/TZ

Save address + 6 : Type

Save address + 7 : Tool number(value among the 0 to 23)

Save address + 8 ~ 13 : The number of no.7 ~ no.12 axis

RSTATS Read state information

None

Save address + 0 : State information 1

(0 bit : Step, 1 bit : 1 Cycle, 2 bit : Auto,

3 bit : Run, 4 bit : safety speed,

5 bit : Teach, 6 bit : Play,

7 bit : Remote)

Save address + 1 : State information 2

(0 bit : ???, 1 bit : Hold program,

2 bit : Hold external, 3 bit : Hold command,

4 bit : Alarm, 5 bit : Error,

6 bit : Servo ON, 7 bit : ???)

RJSEQ Read current project, line/step number

None

Save address + 0 : Project name (Refer to string memory)

Save address + 1 : Line number(0 ~ 9999)

Save address + 2 : Step number(0 ~ 9999)

RGROUP Read current control group

None

Save address + 0 : Robot control group information

(0 ~ 3 bit : Robot 1 ~ 4)

Save address + 1 : Station control group information

(0 ~ 11 bit : Station 1 ~ 12)

Save address + 2 : Project information

  (0 = Master project, 1 ~ 7 = Sub1 ~ 7 project)

RJDIR Read all project names

None

Save address + 0 ~ n : Project name(Refer to string memory)

     (n = The number of registered project name)

RUFRAME Read Specified user coordinate  data

User coordinate

number

(2~25 = User1~24)

None

Save address + 0 ~ 2 : ORG X/Y/Z coordinate value

Save address + 3 ~ 5 : ORG Wrist each TX/TY/TZ

Save address + 6 : ORG Type

Save address + 7 ~ 9  : XX X/Y/Z coordinate value

Save address + 10 ~ 12  : XX Wrist each TX/TY/TZ

Save address + 13  : XX Type

Save address + 14 ~ 16 : XY X/Y/Z coordinate value

Save address + 17 ~ 19 : XY Wrist each TX/TY/TZ

Save address + 20 : XY Type

Save address + 21 : Tool number(value among the 0 to 23)

Save address + 22 ~ 27 : The number of no.7 ~ no.12 axis

SAVEV Read Variable value

Variable value form

(0 = Byte, 1 = Int,

2 = Double, 3 = Real

4 = Robot axis,

5 = Base axis,

6 = Station Axis

Variable No.

When Variable type is 0 to 3

Save address + 0 : Byte/Int/Double/Real value



When Variable type is 4 to 6

Save address + 0 : Position data type

(0 : Pulse, 1 = Cartesian)

Save address + 1 ~ 6 : The number of  S/L/U/R/B/T axis pulse robot

Save address + 7  : Tool No.

Save address + 8 ~ 9 : Not exist

IOREAD Read I/O Signal

Contact point number to start to read (ex : 50010 )

The number of Contact point to read (ex : 24 )

Save address + 0 ~ N : Each Contact point value of 8

(no.0 ~ no.7 bit)

<Table 1> Read command type and save address for read value of YASKAWA NX100 Robot communication driver

Notice) YASKAWA NX100 Robot communication driver store the same data in WORD, DWORD, FLOAT, DOUBLE, INT64 memory, but the data format are different.

If you click the icon  in protocol option part, you can see the dialog box such as <Figure 2>. you can also set read schedule by using this part.

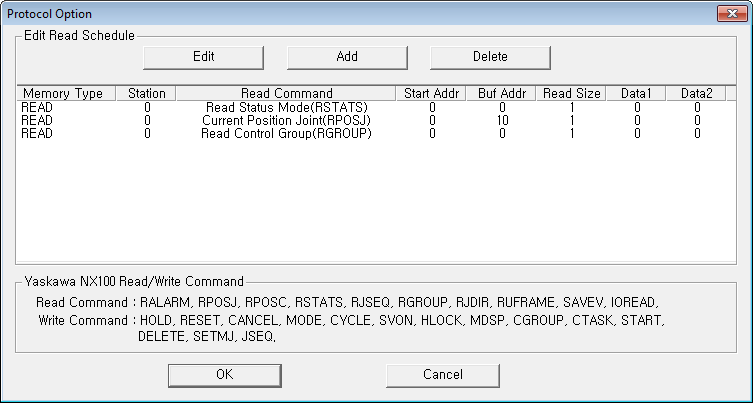

<Figure 2> Example of YASKAWA NX100 Robot communication driver's Option dialog box

You can set read schedule by using , , button and listbox of <Figure 2>.

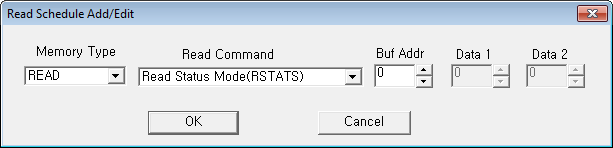

<Figure 3> Example of YASKAWA NX100 Robot communication driver's read schedule Add/Edit dialog box

When you click Add button or Edit button in dialog box of <Figure 2>, dialog box of <Figure 3> is shown.


2. Write settings

You can change the setting value by using the write setting of YASKAWA NX100 Robot communication driver.



Digital Write

Digital write and analog write have the same setting parameters except output value(0, 1).



Analog Write

Analog write setting parameters are as follows :

1) Port : Connected Port number. (It is not COM no.)

2) Station : Don't care. (Fixed to 0)

3) Address : Memory start address to save, in case of read command. (Decimal number 0 ~ 9999).

             Not use write command.

4) Extra1 : Input among the read command of <Table 1> or HOLD, RESET, CANCEL, MODE, CYCLE, SVON, HLOCK, MDSP, CGROUP, CTASK, START, DELETE, SETMJ and JSEQ.

5) Extra2 : When read command : Use as Command data 1

            When write command : Set the Robot control group(Designate the Robot 1 ~ 4 as no.0 ~ no.3 bit) of CGROUP command. Other commands not used.

6) Output value : When read command : Use as Command data 2

  When write command : Setting value of HOLD, MODE, CYCLE, SVON, HLOCK, MDSP, CGROUP, CTASK, START, DELETE, SETMJ and JSEQ command. Other commands not used.



<Table 2> is write command type and setting value of YASKAWA NX100 Robot communication driver.

Write command Command contents Extra2 Output value
HOLD HOLD setting None 0 = OFF, 1 = ON
RESET RESET setting None
CANCEL Cancel an error None
MODE MODE setting None 1 = Teach Mode, 2 = Play
CYCLE Select Cycle None 1 = Step, 2 = 1 Cycle, 3 = Auto
SVON Servo power ON/OFF None 0 = OFF, 1 = ON
HLOCK Interlock ON/OFF None 0 = OFF, 1 = ON
MDSP Set the message to display

MDSP.???
(??? = Message to display)
None
CGROUP Set for changing of control group Set the Robot control group(
Designate the Robot 1 ~ 4 as no.0 ~ no.3 bit),
Set station no.1 ~ no.12
(Set the station as no.0 ~ no.11)
CTASK Change Task None 0 = Master Task,
1 ~ 7 = Sub 1 ~ 7 Task
START Project start command

START.???
(??? = Project name to start)
None
DELETE Project delete command

DELETE.???
(??? = Project name to delete)
None
SETMJ Set the designated project as master

SETMJ.???
(??? = Project name to set)
None
JSEQ Set the project and line number

JSEQ.???
(??? = Project name to set)
None Input the line number to set
<Table 2> Write command type and setting value of YASKAWA NX100 Robot communication driver
