RF COM is driver to communicate with Reverse Pulse Rectifier of UPI Co.,Ltd in Korea.
<Figure 1> is read setting example of UPI RF COM communication driver.

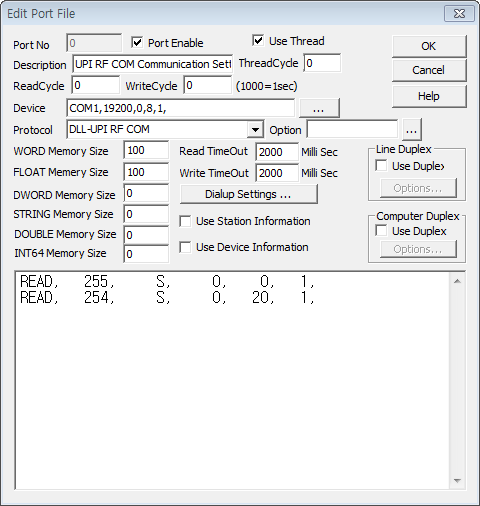

<Figure 1> Read setting example of UPI RF COM communication driver |
Device part of <Figure 1> input Device type(COM1), Com Baud(19200), Parity Bit(0), Data Bit(8), Stop Bit(1).
Reference) You can change station of UPI RF COM device and Com Baud, etc by using setting button for the front of device. ( Refer to 4 paragraph )
Read schedule example)
READ | Station | Command to read | Address to read (Nonuse) | Memory save address | Read size ( Fixed to 1) |
READ, | 255, | S, | 0, | 0, | 1, |
READ, | 254, | S, | 0, | 20, | 1, |
1) Station : Station among no.0 ~ no.255.
2) Device Type : S = Read entire data ( Refer to <Table 1> ), X = Read partial data ( Refer to <Table 2> ),
3) Read Start Address : Don't care
4) Save Start Address for Communication Server : Saving start address for Communication Server. ( 0 ~ 9999 )
5) Read Size : Size to read. ( Fixed to 1, refer to <Table 1> and <Table 2> about size and contents for real read data )
Notice) Value which is read by read command of UPI RF COM driver is saved at designated address of WORD, FLOAT, DWORD, STRING together.
Memory save address |
Command |
Contents |
Remarks |
Save addr + 0 |
M |
Mode |
0 = CV mode, 1 = CC mode |
Save addr + 1 |
R |
Operation status |
0 = Stop, 1 = Run |
Save addr + 2 |
T1 |
Primary Soft Start Time |
00 ~ 99 sec |
Save addr + 3 |
T2 |
Primary current(voltage) holding time |
|
Save addr + 4 |
T3 |
Secondary Soft Start Time |
|
Save addr + 5 |
T4 |
Secondary current(voltage) holding time |
0000 ~ 9999 sec 9999 is consecutive |
Save addr + 6 |
C1 |
Primary current setting |
0000 ~ MAX |
Save addr + 7 |
C2 |
Secondary current setting |
|
Save addr + 8 |
V1 |
Primary voltage setting |
000 ~ 199 |
Save addr + 9 |
V2 |
Secondary voltage setting |
|
Save addr + 10 |
XC |
Rectifier current capacity setting |
1000 = 1000A Setting when it releases from factory |
Save addr + 11 |
XV |
Rectifier voltage capacity setting |
0400 = 4V Setting when it releases from factory |
Save addr + 12 |
AO |
Analog Out |
0000 ~ 4000 |
Save addr + 13 |
H0 |
Real voltage ( In case of 4V (MAX), 2048 ) |
0000 ~ 2048 |
Save addr + 14 |
H1 |
Real current ( In case of 1000A (MAX), 2048 ) |
|
Save addr + 15 |
I |
Input status of rectifier ( 00 ~ 0F ) |
Don't care |
Save addr + 16 |
F |
Output status of rectifier |
|
<Table 1> Contents and save address which are read by read command of S (Read entire data) |
Memory save address |
Command |
Contents |
Remarks |
Save addr + 0 |
M |
Mode |
0 = CV mode, 1 = CC mode |
Save addr + 1 |
R |
Operation status |
0 = Stop, 1 = Run |
Save addr + 2 |
AO |
Analog Out |
0000 ~ 4000 |
Save addr + 3 |
H0 |
Real voltage ( In case of 4V (MAX), 2048 ) |
0000 ~ 2048 |
Save addr + 4 |
H1 |
Real current ( In case of 1000A (MAX), 2048 ) |
|
<Table 2> Contents and save address which are read by read command of X (Read partial data) |
If you click the icon in protocol option part, you can see the dialog box such as <Figure 2>. You can also set read schedule by using this part.

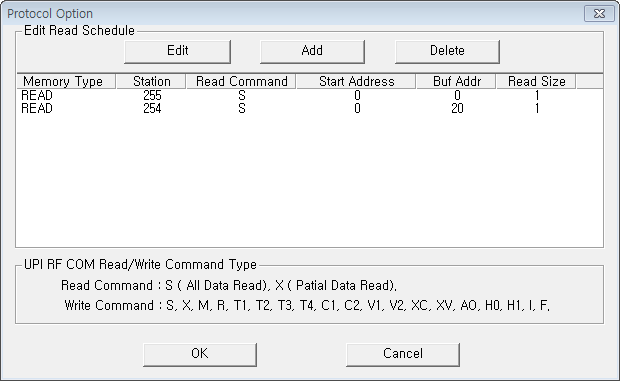

<Figure 2> Example of UPI RF COM driver's Option dialog box |
You can set read schedule by using , , button and listbox of <Figure 2>.

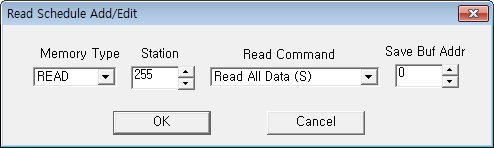

<Figure 3> Example of UPI RF COM driver's read schedule Add/Edit dialog box |
When you click Add button or Edit button in dialog box of <Figure 2>, dialog box of <Figure 3> is shown.
You can read/write of data by using digital/analog output command.
Digital Write
Digital write and analog write have the same setting parameters except output value(0,1).
Analog Write
You can output read of data and setting value by using analog output.
Analog write setting parameters are as follows :
1) PORT : Port number which set UPI RF COM communication driver. (0 ~ 255)
2) STATION : Station number among no.0 ~ no.255.
3) Address : Read command of S and X : Memory position to save read value, (Save contents and position refer to <Table 1> and <Table 2>)
Etc : Don't care.
4) Extra1 : Command. (Refer to <Table 3>)
One of S, X, M, R, T1, T2, T3, T4, C1, C2, V1, V2, XC, XV, AO, H0, H1, I and F
5) Extra2 : Don't care,
Output command | Contents |
Output enable time |
Output range |
S | Reading entire data |
- |
Save the read contents from address number (Refer to <Table 1> and <Table 2>) |
X | Reading partial data |
||
M | Mode |
Only case of OFF |
0 = CV mode, 1 = CC mode |
R | Operation status |
OFF, ON |
0 = Stop, 1 = Run |
T1 | Primary Soft Start Time |
Only case of OFF |
00 ~ 99 sec |
T2 | Primary current(voltage) holding time |
||
T3 | Secondary Soft Start Time |
||
T4 | Secondary current(voltage) holding time |
0000 ~ 9999 sec 9999 is consecutive |
|
C1 | Primary current setting |
OFF, ON |
0000 ~ MAX |
C2 | Secondary current setting |
||
V1 | Primary voltage setting |
000 ~ 199 |
|
V2 | Secondary voltage setting |
||
XC | Rectifier current capacity setting |
Setting when it releases from factory |
1000 = 1000A |
XV | Rectifier voltage capacity setting |
0400 = 4V |
|
AO | Analog Out |
Reference needless |
0000 ~ 4000 |
H0 | Real voltage (In case of 4V (MAX), 2048) |
O |
0000 ~ 2048 |
H1 | Real current (In case of 1000A (MAX), 2048 ) |
||
I | Input status of rectifier (00 ~ 0F) |
Don't care |
Don't care |
F | Output status of rectifier |
||
<Table 3> Contents and output range of output command |
Write example 1)
Station : 255 Address : 0150 Extra1 : S, EXTRA2 : Blank
If you set as above and output the analog value, it reads and saves entire data of 255 RF COMI device to no.150 addr ~ WORD/DWORD/FLOAT memory such as <Table 1>.
Write example 2)
Station : 255 Address : 0150 Extra1 : X, EXTRA2 : Blank
If you set as above and output the analog value, it reads and saves partial data of 255 RF COMI device to no.150 addr ~ WORD/DWORD/FLOAT memory such as <Table 2>.
Write example 3)
Station : 255 Address : 0000 Extra1 : M, EXTRA2 : Blank
If you set as above and output the analog value, you can change M value(namely mode) of 255 RF COMI device.( 0 = CV mode, 1 = CC mode )
Write example 4)
Station : 255 Address : 0000 Extra1 : R, EXTRA2 : Blank
If you set as above and output the analog value, you can change R value(namely status of run) of 255 RF COMI device.( 0 = Stop, 1 = Run ).
Write example 5)
Station : 255 Address : 0000 Extra1 : T1, EXTRA2 : Blank
If you set as above and output the analog value, you can change T1 value(namely primary Soft Start Time value) of 255 RF COMI device as set value.
Write example 6)
Station : 255 Address : 0000 Extra1 : T4, EXTRA2 : Blank
If you set as above and output the analog value, you can change T4 value(namely secondary current/voltage holding time) of 255 RF COMI device as set value.
RS-422 communication cable connection
Connect RS-422 T+, T-, R+ and R- terminal of computer side to J20 RS-422 terminal of UPI RF COM device, as follows.
Computer side J20 terminal side of RF COM
Tx+ -------------------------------------- First terminal
Tx- -------------------------------------- Second terminal
Rx+ -------------------------------------- Third terminal
Rx- -------------------------------------- Fourth terminal
<Figure 4> Appearance of UPI RF COM device |
Station of UPI RF COM device can be changed by using the front of control switch, as follows.
1) Turn on the device in status of pressing RESET key.
2) Select Address setting by pressing S key constantly.
3) Set the address among no.0 ~ no.255 address by using left, right, up and down movement keys.
4) Press RESET key when setting is complete.
