TS2000 is the driver to communicate with TS2000 DPM meter.
<Figure 1> is read setting example of TS2000 communication driver.
|
|

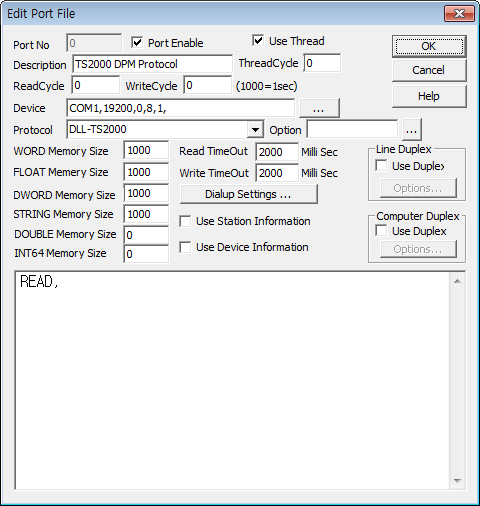

| <Figure 1> Read setting example of TS2000 communication driver |
TS2000 read setting just needs single line as READ, because it is DPM controller of output only.
Digital Write
Digital write setting parameters are as follows:
1) PORT Connected PORT number 0 ~ 255
2) Station Don't care
3) Address DO writing address 0000 ~ 9999
4) Extra 1 Writing area K, M etc
5) Extra 2 DO writing position 0, 10, 20 : LocalControl, MimicSt, MimicAI, LampTest.
1, 11, 21 : MimicStFlck, Buzzer.
2, 12, 22 : AlarmAck.
3, 13, 23 : AlarmClear.
Write example 1)
Address : 0001, Extra1 : K, Extra2: 0,
The setting parameter shown above is example of changing(ON/OFF) K0001 address of DPM controller.
Analog Write
Analog write setting parameters are as follows:
1) PORT Connected PORT number 0 ~ 255
2) Station Device (address) number of controller 00 ~ 99
3) Extra 1 Point form 0, 3.1, 4.2, .. etc
Write example 1)
Station:12, Extra1: 3.1,
The setting parameter shown above is example of displaying no.12 DEVICE of DPM controller as point 1 digit.
