TOSHIBA EX100 is driver to communicate with EX100 PLC of Toshiba Co., in Japan.

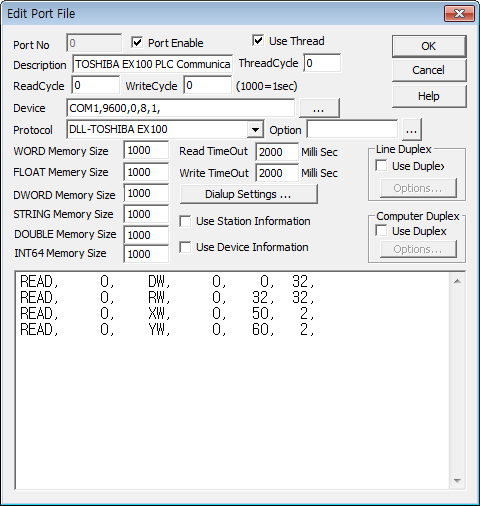

<Figure 1> is read setting example of TOSHIBA B-SX Bar Code Printer communication driver.
|
|
| <Figure 1> Read setting example of TOSHIBA EX100 PLC communication driver |
Device part of <Figure 1> input Com Port(COM1), Baud Rate(9600), Parity Bit(0), Data Bit(8), Stop Bit(1) respectively, according to PLC.
Read schedule of TOSHIBA EX100 PLC is as follows.
| READ | Station | Memory Type | Read Start Address | Save Start Address for Communication Server | Read Size (1 ~ 32) |
| READ, | 0, | DW, | 0, | 0, | 32, |
| READ, | 0, | RW, | 0, | 32, | 32, |
| READ, | 0, | XW, | 0, | 50, | 2, |
| READ, | 0, | YW, | 0, | 60, | 2, |
| <Table 1> Read schedule of TOSHIBA EX100 protocol | |||||
1) Station : RTU station.
2) Memory Type : Enter the PLC memory – DW, D, RW, R(bit unit), XW, X(bit unit), YW, Y(bit unit), ZW, Z(bit unit), TW, T, CW, C, ER, ST, IR, SR, TR, etc.
3) Read Start Address : Start address to read in memory.
4) Save Start Address for Communication Server : Saving start address of Communication Server.
5) Read Size : The number of items to read at a time. Number of Bit or Word between 1 and 32.
You have to set Communication Switch of communication card as 'LINK' mode to communicate with TOSHIBA EX100 PLC and communication program.
(PROGRAM mode is Programer mode)
Also, if you set Station Number Selector between 0 and F, you can set station number between 0 and 15. And you can control Com Baud and Parity by using DIP switch.
 |
| <Figure 2> DIP switch of EX100 PLC |
SWITCH |
Com Baud (Baud Rate) |
|||
9600 BPS |
4800 BPS |
2400 BPS |
1200 BPS |
|
BR2 |
OFF |
OFF |
ON |
ON |
BR1 |
OFF |
ON |
OFF |
ON |
| <Table 2> Com Baud according to DIP switch | ||||
SWITCH |
Parity Mode |
|||
NON |
EVEN |
ODD |
||
PEN |
OFF |
OFF |
ON |
ON |
PR |
OFF |
ON |
OFF |
ON |
| <Table 3> Parity setting according to DIP switch | ||||
| Memory Type | Contents |
Max Size | Remarks |
| DW, D | Data area DW, D(WORD), DB(Bit) |
Number of 1536 (0000 ~ 1535) | Memory size is different according to TYPE |
| DB | 1536 x 16 (0000 ~ 1535F) | Output only | |
| RW | Register area RW(WORD), R(Bit) |
Number of 64 (0000 ~ 0063) | |
| R | 64 x 16 (0000 ~ 063F) | ||
| TW, T | Timer area TW, T(WORD), TB(Bit) |
Number of 128 (0000 ~ 0127) | 0 ~ 7FFFh(32767) |
| TB | 128 x 15 (0000 ~ 127E) | Output only | |
| CW, C | Count area CW, C(WORD), CB(Bit) |
Number of 96 (0000 ~ 0095) | |
| CB | 128 x 15 (0000 ~ 095F) | Output only | |
| XW | Input card area XW(WORD), X(Bit) |
Number of 64 (0000 ~ 0063) | Change according to setting |
| X | 32 x 16 (0000 ~ 031F) | ||
| YW | Output card area YW(WORD), Y(Bit) |
Number of 64 (0000 ~ 0063) | |
| Y | 32 x 16 (0000 ~ 031F) | ||
| ZW | ZW(WORD), Z(Bit) |
Number of 32 (0000 ~ 0031) | |
| Z | 31 x 16 (0000 ~ 031F) | ||
| ER | Error status area |
1 Byte | Refer to <Table 5> |
| ST | PLC status area |
1 WORD | Refer to <Table 6> |
| IR | Power Failure status save |
4 WORD | Refer to <Table 7> |
| SR | System Parameter read |
7 WORD | Refer to <Table 8> |
| TR | PLC status area |
1 WORD | Refer to <Table 9> |
| <Table 4> Memory area supported fromTOSHIBA EX100 protocol | |||
| Error number(hexadecimal) | Error contents |
| 00h | Normal condition (No error) |
| 21h | No End Instruction |
| 22h | Illegal Pair Instruction |
| 23h | Program Failure |
| 25h | Scan Timeout |
| 26h | I/O Sync Error |
| 27h | I/O Module Mismatch |
| 28h | Operand Error |
| 29h | Dc Power Supply Voltage Failure |
| 30h | Watchdog Timer Error |
| 31h | CPU Error |
| 33h | Extension I/O Power Failure |
| 34h | PROM Failure |
| 35h | I/O Bus Failure |
| <Table 5> Error contents of ER read value | |
| Bit position | Status value |
| 0 | Don't care |
| 1 | Request for Diagnostic Display |
| 2 | Don't care |
| 3 | |
| 4 | |
| 5 | Computer Error |
| 6 | TOSLINE Error |
| 7 | Don't care |
| 8 | Run mode 01 : Halt, 10 : RUN/RUN-F, 11 : Error |
| 9 | |
| 10 | Don't care |
| 11 | |
| 12 | |
| 13 | |
| 14 | |
| 15 | |
| <Table 6> Error contents of ST read value | |
| Word position | Save contents |
| Save addr + 0 | RW high register number |
| Save addr + 1 | D high register number |
| Save addr + 2 | T high register number |
| Save addr + 3 | C high register number |
| <Table 7> Save address and contents of IR (Power Failure Storage Area Read) read command | |
| Word position | Save contents |
| Save addr + 0 | Used Page No (0 ~ 9999) |
| Save addr + 1 | Number of Used Step (0 ~ 9999) |
| Save addr + 2 | Scan time(mSec) (0 ~ 9999) |
| Save addr + 3 | Hardware Type (01 : EX100 or EX500, 00 : EX250) |
| Save addr + 4 | Circuit Program capacity(0 ~ 99) whenever increase 1, byte capacity increase 1K |
| Save addr + 5 | Data Area Type (00 : D0000 ~ D0511, 01 : D0000 ~ D1535) |
| Save addr + 6 | Option Type (01 : EX100, 00 : EX250 or EX500) |
| <Table 8> Save address and contents of SR (System Parameter Read) read command | |
| Word position | Save contents |
| Save addr + 0 | Number of error |
| Save addr + 1 | Error code 1 |
| Save addr + 2 | Error code 2 |
| Save addr + 3 | Error code 3 |
| Save addr + 4 | Error code 4 |
| <Table 9> Save address and contents of TR (Diagnostic Table Read) read command | |
Error number |
Status value |
01 |
Command Error |
02 |
Format Error |
03 |
Checksum Error |
04 |
Ending Code Error |
05 |
Excessive Text Length |
08 |
TimeOut 1 |
| <Table 10> Contents of CE error message | |
Error number |
Status value |
01 |
No End Instruction |
02 |
Illegal Pair Instruction |
03 |
Program Failure |
04 |
Memory Full |
05 |
Illegal Pair/Circuit Number |
06 |
Mode Mismatch |
07 |
PROM Error |
08 |
Operand Error |
09 |
Erroneous Register Number/Size |
10 |
I/O Mismatch |
11 |
I/O No Sync |
12 |
Erroneous Transmission |
13 |
Type Mismatch |
14 |
Page Full |
| <Table 11> Contents of EE error message | |
Digital Write
Digital write setting parameters are as follows:
PORT Connected PORT number 0 ~ 255
STATION Station 0 ~ 15
ADDRESS Output address 0000 ~
EXTRA1 Memory area DB, TB, CB, X, Y, Z, R – Output as bit unit.
DB, TB, CB memory area is written by combining designated bit by reading DW, TW, CW memory area.
D, DW, XW, YW, ZW, RW, C, CW, T, TW – Change Word value 0 or 1.
EXTRA2 Don't care
Write example 1)
Port : 0, Station : 0, ADDRESS : 0002, Extra1 : R
The setting parameter shown above is example of changing(ON/OFF) 3rd bit value connected with R memory and EX100 PLC.
Analog Write
Analog write setting parameters are as follows:
PORT Connected PORT number 0 ~ 255
STATION Station of RTU 0 ~ 15
ADDRESS Output address 0000 ~
EXTRA1 Output type D, DW, XW, YW, ZW, RW, C, CW, T, TW – Write Word value.
DB, TB, CB, X, Y, R – Write only 0 and 1 value(bit unit).
DB, TB, CB memory area is written as 0 or 1 by combining designated bit by reading DW, TW, CW memory area.
EC – EX Control output method. (Refer to <Table 12> for output method)
EXTRA2 Don't care
Write example 1)
Port : 0, Station : 0, ADDRESS : 0001, Extra1 : DW
The setting parameter shown above is example of changing 2nd area value connected with EX100 PLC and D memory.
Write example 2)
Port : 0, Station : 0, ADDRESS : 0000, Extra1 : EC
The setting parameter shown above is of RUNNING(refer to <Table 12>) EX100 PLC by writing value as 2.
Output value |
Result |
01 |
HALT |
02 |
RUN |
03 |
Error Reset |
04 |
RUN-F |
08 |
Error Table Clear |
09 |
EEPROM Write |
| <Table 12> Result of EC (EX Control) command according to output value | |
