TMS-Client 1.0 is client driver to communicate with Management Corporation server by using protocol constituted at Environmental Management Corporation as standard.
<Figure 1> is read setting example of TMS-Client 1.0 communication driver.
|

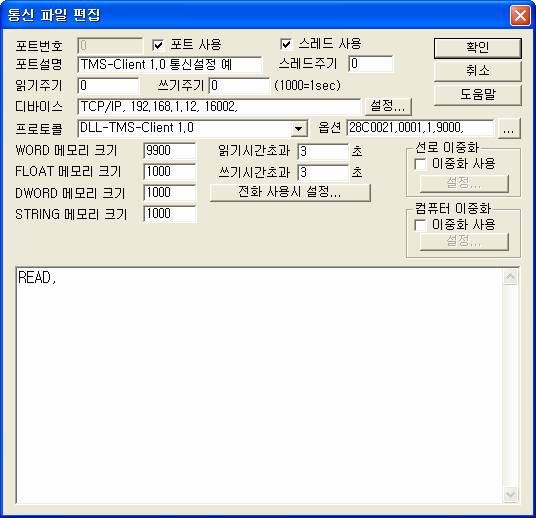

| <Figure 1> Read setting example of TMS-Client 1.0 driver |
Device setting of <Figure 1> input Connection type(TCP/IP), IP address of PLC(192.168.1.12), TCP service port(16002) respectively.
Also, you can enter the workplace code, dewatering outlets code, whether to include STX, ETX code when calculate BCC (1 : Include, 0 : Not include, Default = 1)and memory address(Default = 9000) to save password transferred from server at Option part, by classifying as comma(,).
TMS-Client 1.0 driver read schedule
You just write read schedule of TMS-Client 1.0 communication driver written as single line.
Read schedule example)
READ,
If you click the icon
in protocol option
part at <Figure 1>, you can see the dialog box such as <Figure 2>. you can
also set read schedule by using this part.
 |

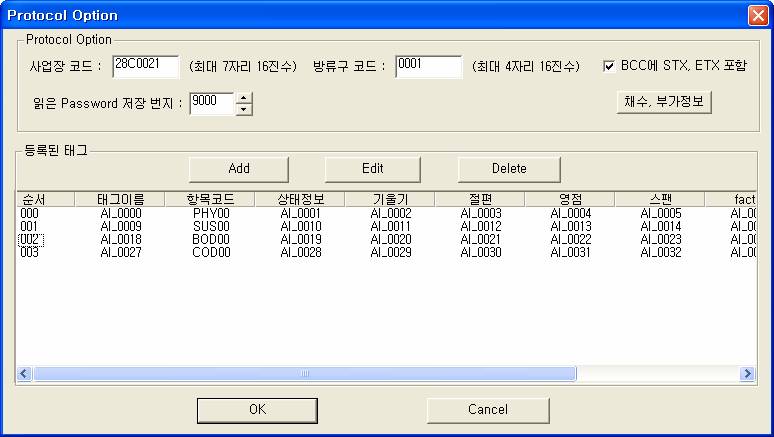

| <Figure 2> Example of TMS-Client 1.0 communication driver's measurement items setting dialog box |
Also, you can set the workplace code, dewatering outlets code, whether to include STX, ETX code when calculate BCC and memory address to save password transferred from server at <Figure 2>.
You can set read schedule by using
,
,
button and listbox
of <Figure 2>.
 |

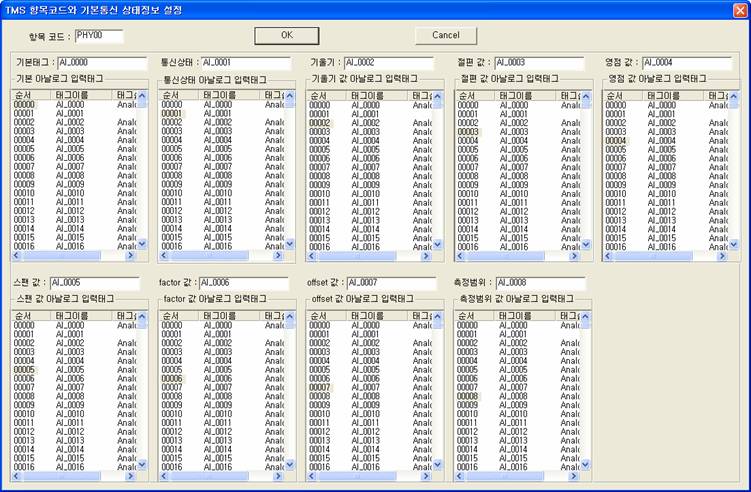

| <Figure 3> Example of TMS-Client 1.0 communication driver's measurement items Add/Edit dialog box |
<Figure 3> is shown when add or edit measurement items data to send to server at <Figure 2> dialog box.
If you select
button of
<Figure 2>, dialog box of <Figure 4> is shown and you can set string tag
for sending analog input tag of water sampling device status(temp, water
sampling type, status information, position of water sampling bottle) and
additional information.
 |

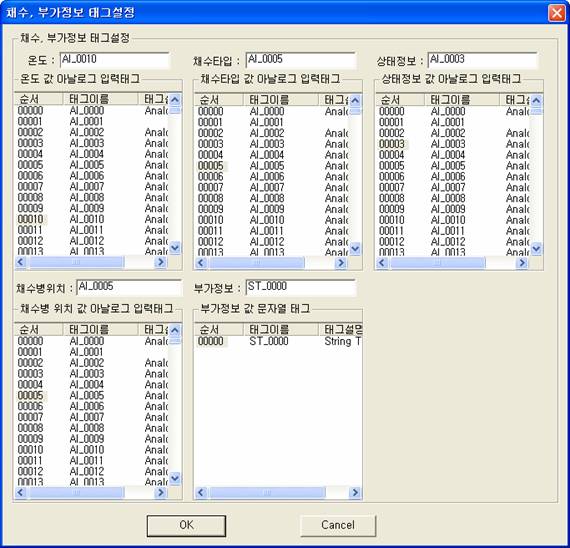

| <Figure 4> Example for water sampling and additional information dialog box of TMS-Client 1.0 communication driver |
<Table 1> is response and process method about command of Management Corporation server, and <Table 2> is confirmation and process method of change/execute command sent from server.
| Command | Command Contents | Response Data | Processing Method for Driver |
| DATA | Data transfer request | 5 minute data, time data within 2 hours |
It is sending structure by calculating saved minute, hour data automatically. |
| RDAT | Instantaneous data request | Instantaneous data | Send current value to server. |
| DUMP | Past data request | 5 minute data, Time data |
It is sending structure by calculating minute, hour data within requested range, automatically. |
| RCHK | Calibration execute | Send command receipt notification code to server | Confirm the reception of calibration execute commands by setting WORD memory value of password save addr + 1 as 1. It needs to execute calibration commands really by using script. |
| CCHK | Calibration value search | Send calibration value information to server |
Send slope, section, zero point, span, factor, offset and current value of measurement range tag which are set at measurement items to server. |
| SAMP | Auto water sampling device control commands | Send command receipt notification code to server | Confirm the reception of water sampling execute commands by setting WORD memory value of password save addr + 2 as 1. It needs to execute water sampling commands really by using script. |
| Auto water sampling device control status request | Sned water sampling device information to server | Send Temp, water sampling type(0 : Local, 1 : Remote), status information, water sampling bottle position and current value of additional information(string 50 byte) tag which are set at Water sampling, additional information tag settings to server. |
|
| SETT | Time change request | Send time change completion code to server | Change current time of computer as time transferred from server. |
| SETP | Password change request | Send password change completion code to server | Set WORD memory address of password save addr as 1, and save the received password to STRING memory address. It needs to change administrator password as password received by script. |
| RSET | Data collection device initialization | Send command receipt notification code to server | Confirm the reception of initialization commands of data collection device by setting WORD memory value of password save addr + 3 as 1. It needs to execute initialization commands really by using script. |
| INFO | Additional information request | Send additional information to server | Send current value of additional information(string 50 byte) tag which is set at water sampling and additional information tag settings, to server. |
| <Table 1> Response and process method for command of Management Corporation | |||
| Memory Address | Save Contents of Communication Memory |
Process Method of LocalMain |
| Save addr of Password + 0 | WORD memory : Set as 1 STRING memory : Save password sent from server |
1) Keep checking whether WORD value of password save addr + 0 is 1. 2) If value is changed to 1, change LocalMain password as STRING memory password. 3) Set WORD value of password save address as 0. |
| Save addr of Password + 1 | WORD memory : Set as 1 | 1) Keep checking whether WORD value of password save addr + 1 is 1. 2) If value is changed to 1, execute calibration commands. 3) Set WORD value of password save address + 1 as 0. |
| Save addr of Password + 2 | 1) Keep checking whether WORD value of password save addr + 2 is 1. 2) If value is changed to 1, execute water sampling commands. 3) Set WORD value of password save address + 2 as 0. |
|
| Save addr of Password + 3 | 1) Keep checking whether WORD value of password save addr + 3 is 1. 2) If value is changed to 1, execute initialization commands of data collection device. 3) Set WORD value of password save address + 3 as 0. |
|
| <Table 2> Confirmation and process method of change/execute command sent from server | ||
There is no writing settings because it sends data which TMS-Client 1.0 communication driver request.
