Sunny Net is driver to communicate with Sunny boy device of SMA Regelsyteme Corp., in Germany.
<Figure 1> is read setting example of Sunny Net communication driver.
|
|

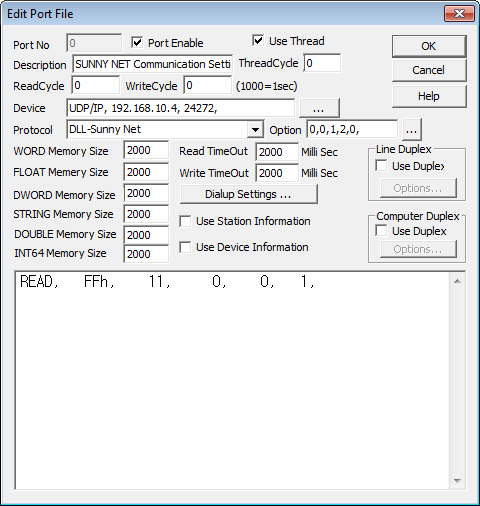

| <Figure 1> Read setting example of Sunny Net driver |
Device part of <Figure 1> input Com Port(COM1), Baud Rate(19200), Parity Bit(0), Data Bit(8), Stop Bit(1) respectively.
If you want to communicate by using Ethernet module, set the device settings as UDP/IP, IP, Service port(24272).
In protocol option part, you can set the following: station number of computer(source) (0 ~ 65535, Default = 0 ), whether to use synchronization code(0 = Not use, 1 = Use, Default = 0) for power line communication, whether to use SMA Net Frame(0 = Not use, 1 = Use, Default = 0 ), device type number(0 = Default, 1 = SCC, 2 = SBC+, Default = 0 ), delay time for each packet when using multi packet(0 ~ 5000 mSec, Default = 0), delay time after Time Sync(10 ~ 3000 mSec, Default = 10). Each argument is a comma-delimited( , ).
You can set station number, baud rate, etc by front control button.
Note) When you using 'Sensor Box', the delay time after Time Sync should be set '170 or over'.
Sunny Net communication driver's read schedule
Read schedule setting parameters are as follows:
1) Device Number – The set Address(0 ~ 65535) of Sunny Boy device.
2) Read Command – Fixed to 11(data read).
3) Read Start Address – Don't care.
4) Save Start Address for Communication Server - Saving start address of Communication Server.
5) Read Size – Always fixed to 1.
6) Read Data Save Method – 0 : Save as type of Normal, SBC and SCC+,
1 ~ 255 : Set the save method for read data at WorkDirectory\SCAN\CH_INFO%03d.ini file. (Refer to <Table 4>)
Read schedule example)
READ, FFh, 11, 0, 0, 1,
<Table 1> ~ <Table 3> are order and contents to save read value of Default, SCC and SBC+ device type which are read by 11(data read) command to communication memory.
<Table 4> is ini file writing method for saving read data(current value) and <Figure 2> is ini file writing example.
| Save Address | Save Contents | Remarks |
| Save addr + 0 ~ 2 | Year, Month, Day of read data | Current time of device |
| Save addr + 3 ~ 5 | Hour, Minute, Second of read data | |
| Save addr + 6 | Time Basis | DWORD data |
| Save addr + 7 | Analog data K1 Upv actual | WORD data |
| Save addr + 8 | Analog data K2 Upv nominal | |
| Save addr + 9 | Analog data K3 lac actual | |
| Save addr + 10 | Analog data K4 lac nominal | |
| Save addr + 11 | Analog data K5 Uac | |
| Save addr + 12 | Analog data K6 Fac | |
| Save addr + 13 | Analog data K7 Pac | |
| Save addr + 14 | Analog data K8 Zac | |
| Save addr + 15 | Analog data K9 d-Zac | |
| Save addr + 16 | Analog data K10 R-Iso | |
| Save addr + 17 | Analog data K11 Uac-Srr | |
| Save addr + 18 | Analog data K12 Fac-Srr | |
| Save addr + 19 | Analog data K13 Zac-Srr | |
| Save addr + 20 | Analog data K14 IZac | |
| Save addr + 21 | Analog data K15 TKK | |
| Save addr + 22 | Counter data K16 E-Total | DWORD data |
| Save addr + 23 | Counter data K17 h-Total | |
| Save addr + 24 | Counter data K18 Net-In | |
| Save addr + 25 | Counter data K19 ErrorCnt | |
| Save addr + 26 | Counter data K20 Snr | |
| Save addr + 27 | Status data K21 Status | BYTE data |
| Save addr + 28 | Status data K22 Status | |
| <Table 1> Order and contents to save read value which is read by 11(data read) command of default device type, to communication memory | ||
| Save Address | Save Contents | Remarks |
| Save addr + 0 ~ 2 | Year, Month, Day of read data | Current time of device |
| Save addr + 3 ~ 5 | Hour, Minute, Second of read data | |
| Save addr + 6 | Time Basis | DWORD data |
| Save addr + 7 | E-day [kWh] | |
| Save addr + 8 | E-total [kWh] | |
| Save addr + 9 | Mode and Error | WORD data |
| Save addr + 10 | Pac [W] | FLOAT data |
| Save addr + 11 | Ppv [W] | |
| Save addr + 12 | MPP Search Count | WORD data |
| Save addr + 13 | Vpv [V] | DWORD data |
| Save addr + 14 | Upv0 [V] | |
| Save addr + 15 | Ipv [A] | FLOAT data |
| Save addr + 16 | Iac [A] | |
| Save addr + 17 | Vac Phase 1 [V] | |
| Save addr + 18 | Vac Phase 2 [V] | |
| Save addr + 19 | Vac Phase 3 [V] | |
| Save addr + 20 | Fac [Hz] | |
| Save addr + 21 | R_ISO | |
| Save addr + 22 |
|
|
| Save addr + 23 | Temp PT100 [degree] | |
| Save addr + 24 | Reserved | WORD data |
| Save addr + 25 | Operation Time [h] | DWORD data |
| Save addr + 26 | Working time [h] | |
| Save addr + 27 | Tstart | |
| Save addr + 28 | Twait | |
| Save addr + 29 | Startup counter | |
| Save addr + 30 | Fault Counter | |
| Save addr + 31 | Warn Counter | |
| Save addr + 32 ~ 51 | K1 ~ K20 | WORD data |
| Save addr + 52 ~ 56 | AIN1, AIN3, AIN4, AIN5, AIN6 | FLOAT data |
| Save addr + 57 ~ 64 | Digital Input 1 ~ 8 (save to bit no.0 ) | BYTE data |
| Save addr + 65 | FI-status | WORD data |
| Save addr + 66 | FI-code | BYTE data |
| Save addr + 67 | Energy Value | WORD data |
| <Table 2> Order and contents to save read value which is read by 11(data read) command of SCC device type, to communication memory | ||
| Save Address | Save Contents | Remarks |
| Save addr + 0 ~ 2 | Year, Month, Day of read data | Current time of device |
| Save addr + 3 ~ 5 | Hour, Minute, Second of read data | |
| Save addr + 6 | Time Basis | DWORD data |
| Save addr + 7 | Pac [W] | FLOAT data |
| Save addr + 8 | Reserved | WORD data |
| Save addr + 9 | E-day [kWh] | DWORD data |
| Save addr + 10 | E-total [kWh] | |
| Save addr + 11 | Operating time [s] | |
| Save addr + 12 | Power ON [time] | |
| Save addr + 13 ~ 16 | Reserved | WORD data |
| Save addr + 17 ~ 18 | Serial number (2 DWORD values) | DWORD data |
| Save addr + 19 | Reserved | WORD data |
| Save addr + 20 | Mode and Error | |
| Save addr + 21 | Energy value [days] | |
| Save addr + 22 | Measuring data [cycle] | DWORD data |
| Save addr + 23 | Detective Device [low], Registered Device [high] | WORD data |
| Save addr + 24 | On line | |
| Save addr + 25 | FI-status | |
| Save addr + 26 | FI-code | BYTE data |
| Save addr + 27 ~ 34 | AIN 1 ~ 8 | FLOAT data |
| Save addr + 35 ~ 42 | Digital Input 1 ~ 8 (save to bit no.0) | BYTE data |
| Save addr + 43 ~ 106 | K1 ~ K64 | WORD data |
| Save addr + 107 | 24V
|
|
| Save addr + 108 ~ 111 | Reserved | |
| Save addr + 112 | Reserved | BYTE data |
| <Table 3> Order and contents to save read value which is read by 11(data read) command of SBC+ device type, to communication memory | ||
File name |
ini file writing method |
WorkDirectory\SCAN\CH_INFO%03d.ini
%03d is the setting data number between 1 and 255 in here |
1) Write to first line of file as text. 2) Each factor is classified by ','(comma). 3) Write maximum 256 channel information. 4) B = Byte, W = Word, D = Double Word, F = Float, S = String data. 5) The number of behind of S is length of String. Ex) S10 : 10 Strings |
| <Table 4> ini file writing method for saving read data(current value) | |
 |

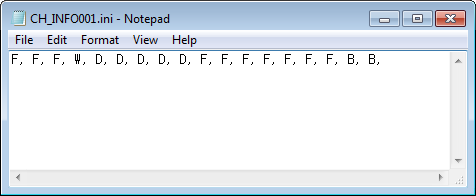

| <Figure 2> Example of ini file writing for saving read data(current value) |
Notice) Read value is saved to same address position of WORD/FLOAT/DWORD memory by Sunny Net communication driver, and save value is different according to memory type.
If you click the icon
in protocol option
part of <Figure 1>, you can see the dialog box such as <Figure 3>. You can
also set read schedule by using this part.
 |

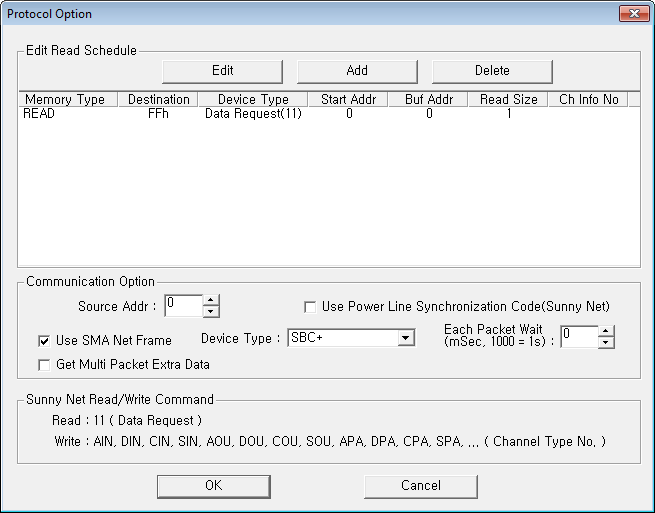

| <Figure 3> Example of Sunny Net communication driver's dialog box |
You can set read schedule by using
,
,
button and listbox
of <Figure 3>.
Also, you can set station number of computer(source), whether to use synchronization code for power line communication, whether to use SMA Net Frame, device type number, delay time for each packet when using multi packet, delay time after Time Sync, by using the part of Communication Option.
When you click Add button or Edit button in dialog box of <Figure 3>, dialog box of <Figure 4> is shown.
 |

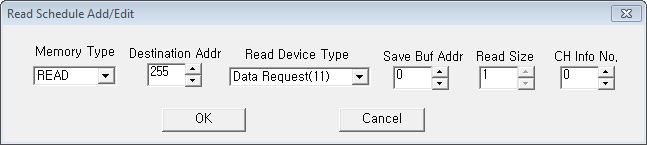

| <Figure 4> Example of Sunny Net communication driver's read schedule Add/Edit dialog box |
You can read current value for designated read contents by writing settings.
Digital Write
Digital write setting parameters are as follows:
1) Port Connected communication port number. (Not COM number)
2) Station The set Address(0 ~ 65535) in Sunny Boy device.
3) Address Index number in channel(Channel = Analog/Digital/Counter/Status).
4) Extra1 Channel type number.
AIN : Analog Input Channel(Type number = 0101h),
DIN : Digital Input Channel(Type number = 0102h),
CIN : Count Input Channel(Type number = 0104h),
SIN : Status Input Channel(Type number = 0108h),
AOU : Analog Output Channel(Type number = 0201h),
DOU : Digital Output Channel(Type number = 0202h),
COU : Count Output Channel(Type number = 0204h),
SOU : Status Parameter Channel(Type number = 0208h),
APA : Analog Parameter Channel(Type number = 0101h),
DPA : Digital Parameter Channel(Type number = 0102h),
CPA : Count Parameter Channel(Type number = 0104h),
SPA : Status Parameter Channel(Type number = 0108h),
READ_CH : Save to WorkDirectory\SCAN\CH_SAVE%03d.ini file by reading channel information, %03d = Station number.
(It is saved as method, such as <Table 4> and <Figure 2>)
0 or character etc : Digital Input Channel(Type number = 0902h),
Etc Number : Channel type number value,
( Bit 0 = Analog, Bit 1 = Digital, Bit 2 = Counter, Bit 3 = Status, … Bit 8 = Input, Bit 9 = Output, Bit 10 = Parameter, Bit 11 = Instant. Values … )
5) Extra2 Output data format.
1 : DWORD data,
2 : BYTE data,
0, blank etc : WORD data.
Analog Write
Analog write setting parameters are as follows :
1) Port Connected communication port number. (Not COM number)
2) Station The set Address(0 ~ 65535) in Sunny Boy device.
3) Address Index number in channel(Channel = Analog/Digital/Counter/Status).
4) Extra1 Channel type number.
AIN : Analog Input Channel(Type number = 0101h),
DIN : Digital Input Channel(Type number = 0102h),
CIN : Count Input Channel(Type number = 0104h),
SIN : Status Input Channel(Type number = 0108h),
AOU : Analog Output Channel(Type number = 0201h),
DOU : Digital Output Channel(Type number = 0202h),
COU : Count Output Channel(Type number = 0204h),
SOU : Status Parameter Channel(Type number = 0208h),
APA : Analog Parameter Channel(Type number = 0101h),
DPA : Digital Parameter Channel(Type number = 0102h),
CPA : Count Parameter Channel(Type number = 0104h),
SPA : Status Parameter Channel(Type number = 0108h),
READ_CH : Save to WorkDirectory\SCAN\CH_SAVE%03d.ini file by reading channel information, %03d = Station number.
(It is saved such as <Table 4> as <Figure 2>)
0 or character etc : Analog Input Channel(Type number = 0901h),
Etc number : Channel type number value,
( Bit 0 = Analog, Bit 1 = Digital, Bit 2 = Counter, Bit 3 = Status, … Bit 8 = Input, Bit 9 = Output, Bit 10 = Parameter, Bit 11 = Instant. Values … )
5) Extra2 Output data type.
1 : DWORD data,
2 : BYTE data,
0, Blank etc : WORD data.
Write example 1)
PORT : 0 STATION : 255 ADDRESS : 0002 EXTRA1 : AIN EXTRA2 : Blank
The setting parameter shown above is example of writing contents of analog input channel no.2 Index for Sunny Net device connected no.0 port as set value.
Connect communication cable and basic power to Sunny Boy device, as follows.
RS-232C Communication cable connection
Connect general RS-232C communication cable(Cross) to RS-232C(COM2) terminal of <Figure 5>.
<Figure 6> is appearance of Sunny Boy device.
 |

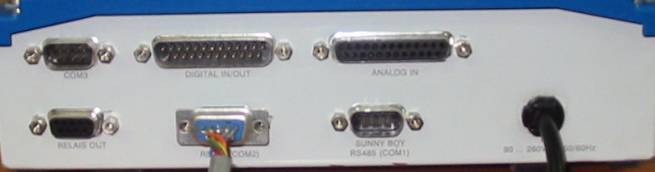

| <Figure 5> Appearance of connecting communication cable and basic power etc to Sunny Boy |
 |

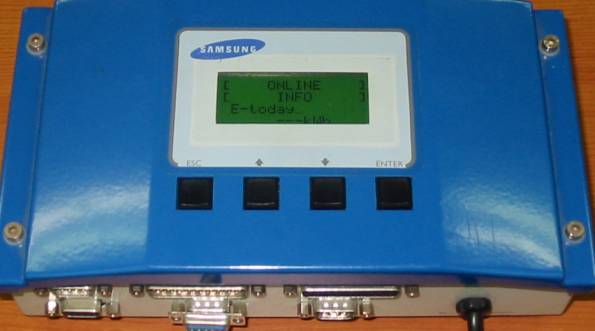

| <Figure 6> Appearance of Sunny Boy device |
Basic power connection
Basic power of sunny Boy enter 90 ~ 260VAC 50/60Hz to supported power socket.
