Soleaf PCS(Dass Tech) Communication Driver



Soleaf PCS(Dass Tech) is driver to communicate with grid-connected inverter device of DASS Tech Co., Ltd, Korea.



1. Read settings



<Figure 1> is read setting example of Soleaf PCS(Dass Tech) communication driver.

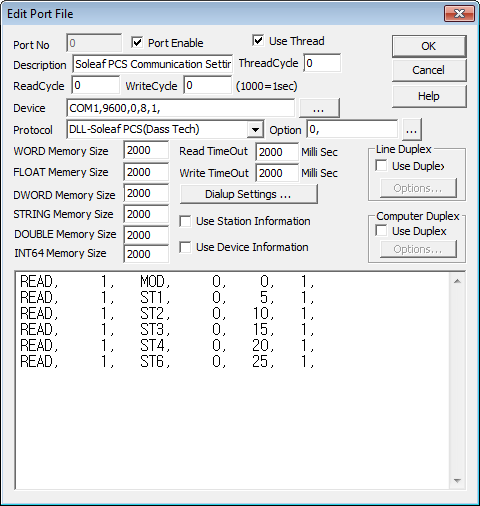

<Figure 1> Read setting example of Soleaf PCS(Dass Tech) driver

Device part of <Figure 1> input Com Port(COM1), Baud Rate(9600), Parity Bit(0), Data Bit(8), Stop Bit(1) respectively, according to device.

Also, you can input whether to confirm check sum of read data(1 : Use, 0 : Not use, Default = 0) at Option part.



Notice) Check sum is only used at inverter device of high capacity.



Soleaf PCS(Dass Tech) driver's read schedule

Read schedule setting parameters are as follows:

1) Device ID Number – ID number between 0 and 255.

2) Read Command – Set among MOD, ST1, ST2, ST3, ST4, ST5 and ST6. (Refer to <Table 1>)

3) Read Start Address – Don't care. (Set as 0)

4) Save Start Address for Communication Server - Saving start address of Communication Server.

5) Read Size – Always fixed to 1. Fixed according to read command. (Refer to <Table 1>)



Read schedule example)

READ,     1,   MOD,     0,    0,   1,

READ,     1,   ST1,     0,    5,   1,

READ,     1,   ST2,     0,   10,   1,

READ,     1,   ST3,     0,   15,   1,

READ,     1,   ST4,     0,   20,   1,

READ,     1,   ST6,     0,   25,   1,



<Table 1> is read command type and save address of read value for Soleaf PCS(Dass Tech) communication driver.

Read Command

Save address of Read value

Remarks

MOD

Save addr + 0  : Phase (1, 3)

Save addr + 1  : Power Capacity ( 0.1 kW unit )

Save addr + 2  : Rated Line Voltage ( V unit )



ST1

Save addr + 0  : PV Voltage ( V unit )

Save addr + 1  : PV Current ( 0.1 A unit )

Save addr + 2  : PV Generated Power ( 0.1 kW unit )



ST2

Save addr + 0  : A Line Voltage ( V unit )

Save addr + 1  : B Line Voltage ( V unit )

Save addr + 2  : C Line Voltage ( V unit )

Save addr + 3  : Line Frequency ( 0.1 Hz unit )



ST3

Save addr + 0  : A Line Current ( 0.1 A unit )

Save addr + 1  : B Line Current ( 0.1 A unit )

Save addr + 2  : C Line Current ( 0.1 A unit )



ST4

Save addr + 0  : Generated Power ( 0.1 kW unit )

Save addr + 1  : Total Generated Power ( kWh unit )



ST5

Save addr + 0  : Quantity of horizontal solar radiation ( W/m2 unit )

Save addr + 1  : Quantity of slope solar radiation ( W/m2 unit )

Save addr + 2  : Atmosphere Temperature ( 0.1 ¡É unit )

Save addr + 3  : Surface Temperature ( 0.1 ¡É unit )



ST6

Save addr + 0  : Line Power Loss ( Value of 1 )

Save addr + 1  : Stop ( Value of 1 )

Save addr + 2  : Fault

Fault : 0 = ready, 1 = OC, 2 = OH, 3 = EF,

4 = OV, 5 ~ 9 = System Fault,

10 ~ 25 = Line Fault

<Table 1> Read command type and save address of read value for Soleaf PCS(Dass Tech) communication driver

If you click the icon 2 in protocol option part at <Figure 1>, you can see the dialog box such as <Figure 2>. You can also set read schedule by using this part.

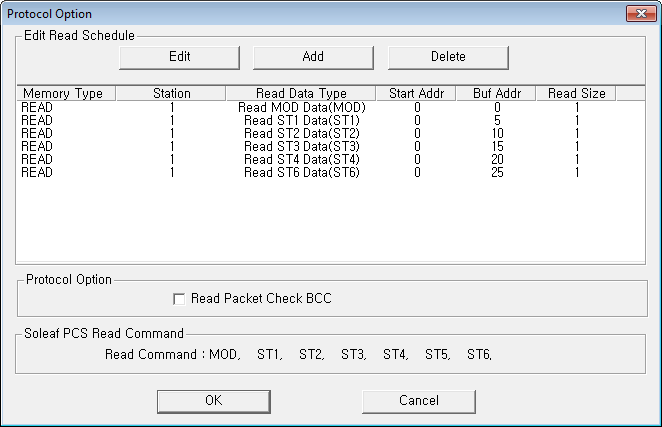

<Figure 2> Example of Soleaf PCS(Dass Tech) communication driver's dialog box

You can set read schedule by using 3, 4, 5 button and listbox of <Figure 2>.

Also, you can set whether to confirm check sum of read data at 'Read Packet Check BCC' area of <Figure 2>.

When you click Add button or Edit button in dialog box of <Figure 2>, dialog box of <Figure 3> is shown.

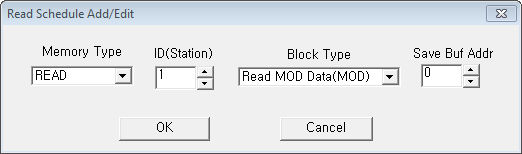

<Figure 3> Example of Soleaf PCS(Dass Tech) communication driver's read schedule Add/Edit dialog box
2. Writing settings

There isn't writing settings of Soleaf PCS(Dass Tech) driver.



3. RS-232C communication cable and basic power connection

Connect RS-232C communication cable and basic power to Soleaf device, as follows.



RS-232C communication cable connection

Connect general serial RS-232C communication cable to 9 pin RS-232C/485 communication socket of Soleaf device, such as <Figure 4>.

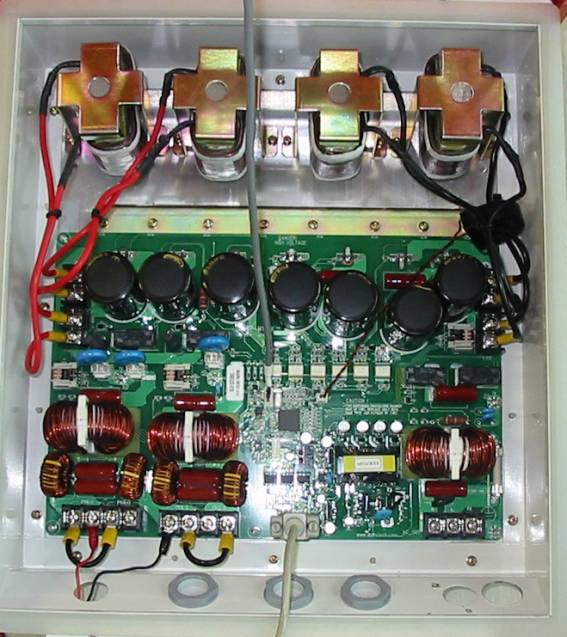

<Figure 4> Appearance of connecting RS-232C communication cable, basic power and etc to Soleaf device
Basic power connection

Connect basic DC power(It demands checking the voltage, according to device) to PV+, PV- terminal of Soleaf device, such as <Figure 4>.

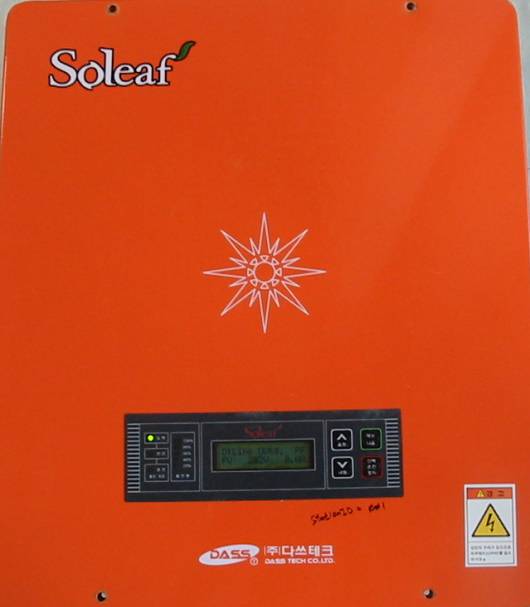

<Figure 5> External appearance of Soleaf device
