Cable connection of Serial communication



If you buy the computer, connecting communication cable by using port which RS-232 ports are equipped basically is general.

Accuracy of communication is hard to expect when RS-232 port cable is over 15m. In this case, you must do RS-422 or RS-485 communication.

In case of doing RS-422 or RS-485 communication, you must use dedicated communication card or CONVERT.

The next is figure of cable access method, when do SERIAL communication.

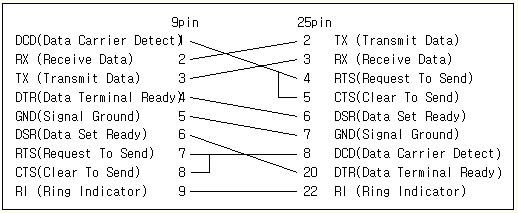

RS-232 9 pin-25 pin communication cable connection method

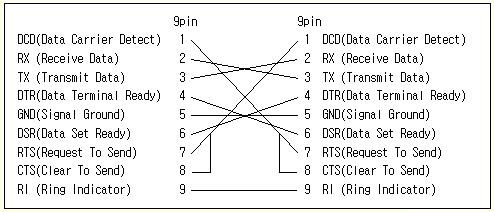

RS-232 9 pin-9 pin communication cable connection method

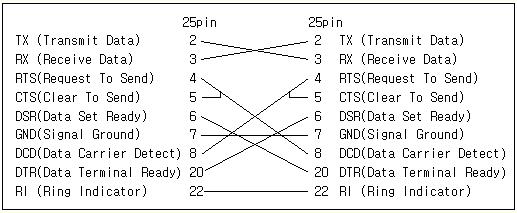

RS-232 25 pin-25 pin communication cable connection method
