Screw Manager BM Series is the driver to communicate with BM series( screw fastener ) equipment of IDEKEIKI in Japan.
<Figure 1> is read setting example of Screw Manager BM Series communication driver.
|
|

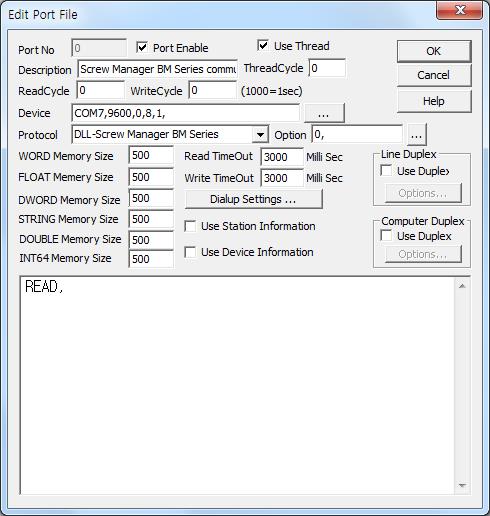

| <Figure 1> Read setting example of Screw Manager BM Series communication driver |
Device part of <Figure 1> input Com port(COM7), baud rate(9600), parity bit(0), data bit(8), stop bit(1) respectively, accordint to the setting of controller.
In protocol option part, you can set weather to use 'BM04 Model' ( 0 = BM05 Model, 1 = BM04 Model, default : 0 ).
Read schedule of Screw Manager BM Series communication driver
Rread schedule of Screw Manager BM Series communication driver input 'READ' one line.
Read schedule example)
READ,
<Table 1> is data saving address and contetns for Screw Manager BM05 Model.
<Table 2> is data saving address and contetns for Screw Manager BM04 Model.
Data saving address |
Contents |
Remarks |
0 1 2 3 4 5 6 7 8 9 10 |
weather to stop when setting timeout weather to use counting for specify time weather to use button Key Lock CI F_Timeout timeout setting value after using count time setting for screw fastening ( mSec ) time spare fot screw fastening ( SP% ) torque setting for screw fastening ( N.m ) torque spare for screw fastening ( Tr% ) |
0 = OFF, 1 = ON 0 = OFF, 1 = ON 0 = OFF, 1 = ON 0 = UP, 1 = DOWN |
20 21 22 23 24 25 26 27 |
order screw fastener time screw fastener torque status screw fastener status NG ON status status code WORK ON status |
default : 1 m Sec N.m unit(float, refet to FLOAT memory) default : 1 1 = OK, 0 = NG 1 = NG ON, 0 = NG OFF 1 = WORK ON, 0 = WORK OFF |
| <Table 1> Data saving address and contetns for Screw Manager BM05 Model | ||
Data saving address |
Contents |
Remarks |
0 1 2 3 4 5 6 7 |
packet receiving number time setting for screw fastening ( SCREW TIME ) time spare fot screw fastening % ( SP ) timeout setting value after using ( Timeout ) torque setting torque spare for screw fastening ( TORQUE SP ) weather to stop when NG ( DRIVER STOP ) weather to use button Key Lock ( KEY LOCK ) |
float, refet to FLOAT memory float, refet to FLOAT memory 0 = OFF, 1 = ON 0 = OFF, 1 = ON |
20 21 22 23 24 25 |
screw fastener time screw fastener torque screw fastener status NG ON status order WORK ON status |
m Sec N.m unit(float, refet to FLOAT memory) 1 = OK, 0 = NG 1 = NG ON, 0 = NG OFF default : 1 1 = WORK ON, 0 = WORK OFF |
| <Table 2> Data saving address and contetns for Screw Manager BM04 Model | ||
Screw Manager BM Series communication driver store the same data in WORD, DWORD, FLOAT, DOUBLE memory, but the data format are different.
If you click the icon
in protocol option part at
<Figure 1>, you
can see the dialog box such as <Figure 2>. you can also set the model of
BM Series.
 |
|

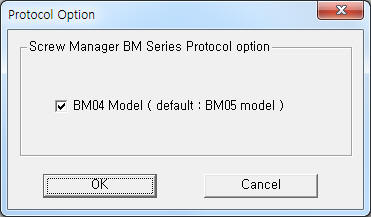

<Figure 2> Example of Screw Manager BM Series communication driver’s Option dialog box |
Screw Manager BM Series communication driver don't support 'Write settings'.

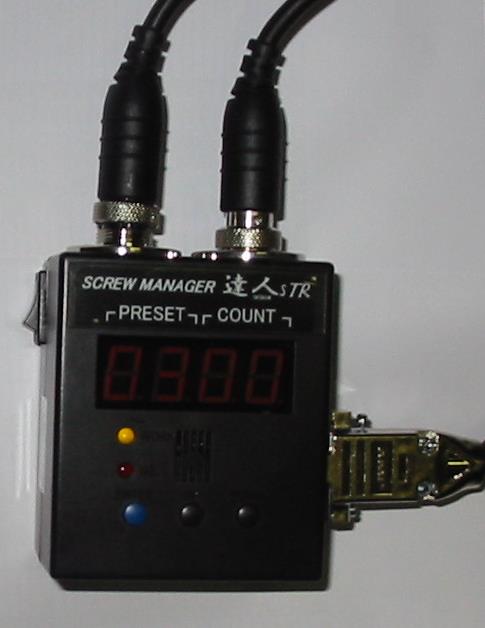

<Figure 3> shows the appearance of Screw Manager BM05.
 |
| <Figure 3> Appearance of Screw Manager BM05 |
