Sanil STC10 Series is driver to communicate with temperature controller developed at Sanil Electronics Co., Ltd, in Korea.

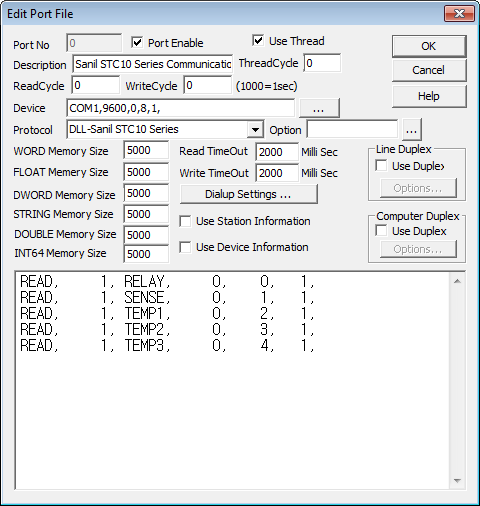

<Figure 1> is read setting example of Sanil STC10 Series communication driver.
|
|
| <Figure 1> Read setting example of Sanil STC10 Series driver |
Device part of <Figure 1> input Com Port(COM1), Baud Rate(9600), Parity Bit(0), Data Bit(8), Stop Bit(1) respectively, according to device.
Sanil STC10 Series device's settings such as communication speed etc are fixed as 9600, 0, 8, 1.
Sanil STC10 Series driver's read schedule
Read schedule setting parameters are as follows :
1) Device Number – Set address of device to read among 0 ~ 255.
2) Read Command – Enter among RELAY, SENSE, TEMP1, TEMP2, TEMP3, C_MAX, T_MAX, FANON, FANOFF, ALARM, TRIP and FANCYCLE.
Etc read command : In case of entering command except above command – Read the designated start address value.
3) Read Start Address – Etc read command : Address to read,
Basic command : Don't care.
4) Save start address for Communication Server - Save start address of Communication Server.
5) Read Size – Always fixed as 1.
Read schedule example)
READ, 1, RELAY, 0, 0, 1,
READ, 1, SENSE, 0, 1, 1,
READ, 1, TEMP1, 0, 2, 1,
READ, 1, TEMP2, 0, 3, 1,
READ, 1, TEMP3, 0, 4, 1,
<Table 1> is save address and contents of read value for read command of Sanil STC10 Series communication driver.
| Command | Command Contents |
Read Value Save Address |
Remarks |
| RELAY | Reading Relay Status |
Save Addr + 0 : Relay value (By each bit 1 = On, 0 = Off ) |
Bit0 : Fan, Bit1 : Alarm, Bit2 : Trip, Bit3 : Fault |
| RELAY | Reading Sensing Status |
Save Addr + 0 : Sense value (By each bit 1 = True, 0 = False ) |
Bit0 ~ 2 : Channel-1 ~ 3 Trip, Bit3 ~ 5 : Channel-1 ~ 3 Short, Bit6 ~ 8 : Channel-1 ~ 3 Open |
| TEMP1 | Reading Channel-1 Temperature |
Save Addr + 0 : Temp value |
-10 ~ 200 ℃ |
| TEMP2 | Reading Channel-2 Temperature |
||
| TEMP3 | Reading Channel-3 Temperature |
||
| C_MAX | Reading Max. Channel |
Save Addr + 0 : Channel value |
1, 2, 3 |
| T_MAX | Reading Max. Temperature |
Save Addr + 0 : Temp value |
-10 ~ 200 ℃ |
| FANON | Reading Fan-On Temperature |
Save Addr + 0 : Temp value |
20 ~ 200 ℃ |
| FANOFF | Reading Fan-Off Temperature |
||
| ALARM | Reading Alarm On Temperature |
||
| TRIP | Reading Trip On Temperature |
||
| FANCYCLE | Reading Fan Test Cycle |
Save Addr + 0 : Cycle value |
Unit : Time(Hour) |
| <Table 1> Save address and contents of read value for read command of Sanil STC10 Series communication driver | |||
Notice) Sanil STC10 Series driver's read value is saved at WORD/DWORD/FLOAT memory as same value(value format is only different).
If you click the icon
in protocol

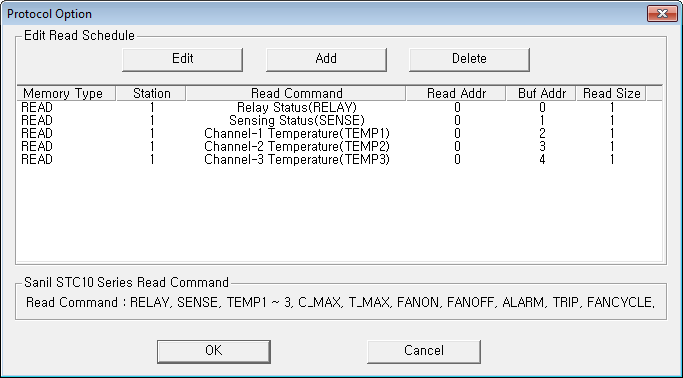

option part at <Figure 1>, you can see the dialog box such as <Figure 2>. You
can also set read schedule by using this part.
 |
| <Figure 2> Sanil STC10 Series communication driver's Option dialog box |
,
,
button and
listbox of <Figure 2>.
 |

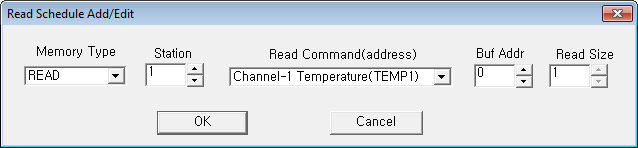

| <Figure 3> Sanil STC10 Series communication driver's read schedule Add/Edit dialog box |
When you click Add button or Edit button in dialog box of <Figure 2>, dialog box of <Figure 3> is shown.
There is no writing settings for Sanil STC10 Series communication driver.
3. Communication cable and basic power connection
Connect communication cable and basic power to Sanil STC10 Series device, as follows.
RS-485 communication cable connection

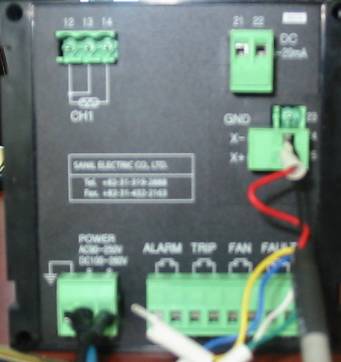

Connect T+, T- terminal of computer's RS-485 terminal to T+, T- terminal of Sanil STC11 device's RS-485 terminal, such as <Figure 4>.
 |
| <Figure 4> Appearance of connecting RS-485 communication cable etc to Sanil STC11 device |
Connect 90~245V AC or 100 ~ 260V DC power to basic power input part of Sanil STC10 Series device.

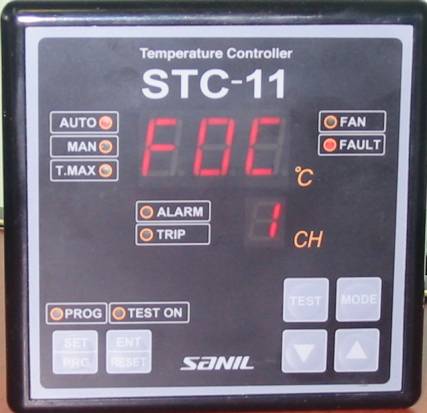

<Figure 5> is appearance of Sanil STC11 device.
 |
| <Figure 5> Appearance of Sanil STC11 device |
