SYS-K040 communication driver is the driver to communicate with PC internal card to have digital input 16 channels and digital output 24 channels of TechMove Electronics, in Korea.
|

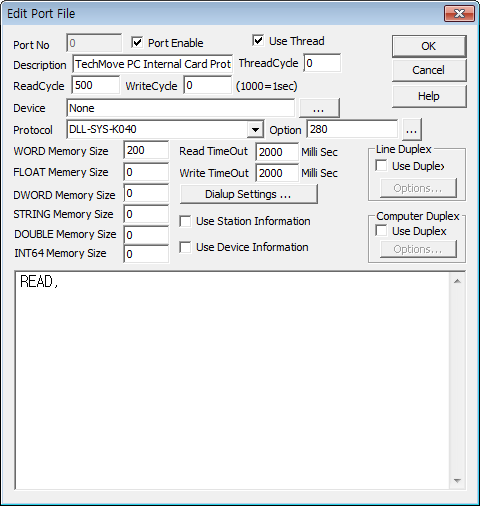

Device Setting of above figure input as None and input port number between 200 and 3FF value to Option part, because SYS-K040 is CARD to be equipped at PC SLOT.
If you write single line as READ, it saves value to 5 WORD area of AUTOBASE WORD memory
Contents for 5 WORD which are displayed at READ memory are as follows.
0 : Digital Input 8 Channel. (00~07)
1 : Digital Input 8 Channel. (10~17)
2 : Digital Output 8 Channel. (20~27)
3 : Digital Output 8 Channel. (30~37)
4 : Digital Output 8 Channel. (40~47)
SYS-K040 READ schedule
SYS-K040 communication protocol's read setting just needs single line as READ,.
Digital Write
Digital write setting parameters are as follows:
1) PORT : Communication port number of SYS-K040. (Number of SCAN.???)
2) ADDRESS : Address to output.(Select among 20~27, 30~37 and 40~47)
Write example)
PORT : 0 ADDRESS:27
The setting parameter shown above is example of controlling(ON/OFF) 8th channel of SYS-K040 card.
Analog Write
Analog write setting parameters are as follows:
1) PORT : Communication port number of SYS-K040. (Number of SCAN.???)
2) ADDRESS : Address to output.(Select between 2 and 4)
Write example)
PORT : 0 ADDRESS:2
The setting parameter shown above is example of controlling(ON/OFF) 8 channels of SYS-K040 card, simultaneously.
