SPT600 Series UPS is driver to communicate with UPS device of Sampoong Power Tech Co., Ltd, in Korea.

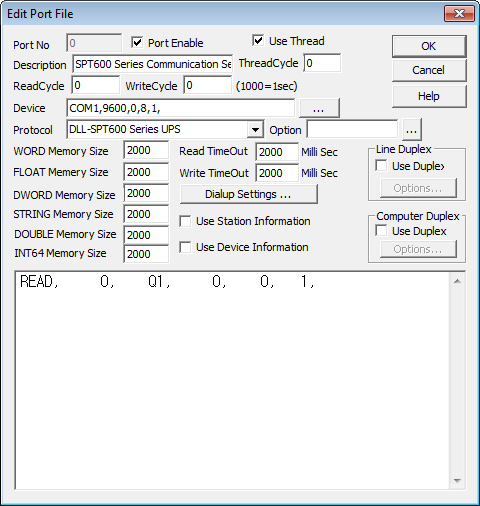

<Figure 1> is read setting example of SPT600 Series UPS communication driver.
|
|
| <Figure 1> Read setting example of SPT600 Series UPS driver |
Device part of <Figure 1> input Com Port(COM1), Baud Rate(9600), Parity Bit(0), Data Bit(8), Stop Bit(1) respectively, according to device.
SPT600 Series UPS driver's read schedule
Read schedule setting parameters are as follows :
1) Device Number – Don't care.
2) Read Command – Set among the Q1, I, F. (Refer to <Table 1>)
3) Read Start Address – Don't care.
4) Save start address for Communication Server - Saving start address of Communication Server.
5) Read Size – Always fixed to 1. Fixed according to read command type. (Refer to <Table 1>)
Read schedule)
READ, 0, Q1, 0, 0, 1,
<Table 1> is read command type and data saving address of SPT600 Series UPS communication driver.
Read Command |
Contents |
Data Saving Address |
Remarks |
Q1 |
Status Inquiry |
Start Add + 0 : I/P Voltage Start Add + 1 : I/P Fault Voltage Start Add + 2 : O/P Voltage Start Add + 3 : O/P Current Start Add + 4 : I/P Frequency Start Add + 5 : Battery Voltage Start Add + 6 : Temperature Start Add + 7 : UPS Status |
UPS Status : No.0 bit : Beeper ON, No.1 bit : Shutdown Active, No.2 bit : Test In Progress, No.3 bit : UPS Standby(0 = On Line), No.4 bit : UPS Failed, No.5 bit : Bypass/Boost, No.6 bit : Battery Low, No.7 bit : Utility Fail, |
I |
Read UPS Information |
Start Add + 0 : Company Name Start Add + 1 : UPS Model Start Add + 2 : Version |
Refer to string value of STRING memory |
F |
Read UPS Rating Information |
Start Add + 0 : Rating Voltage Start Add + 1 : Rating Current Start Add + 2 : Battery Voltage Start Add + 3 : Frequency |
|
|
<Table 1> Read command type and data saving address of SPT600 Series UPS communication driver |
|||
Notice) Read value which is read by SPT600 Series UPS communication driver is saved as same value to WORD/DWORD/FLOAT/STRING memory of data saving position( Only value format is different ).
If you click the icon
in
protocol option part, you can see the dialog box such as <Figure 2>. You can
also set read schedule by using this part.
 |

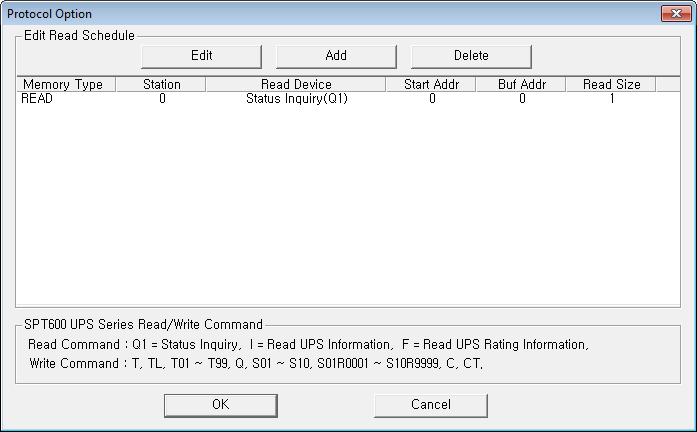

| <Figure 2> Example of SPT600 Series UPS communication driver's Option dialog box |
You can set read schedule by using
,
,
button and
listbox of <Figure 2>.
When you click Add button or Edit button in dialog box of <Figure 2>, dialog box of <Figure 3> is shown.
 |

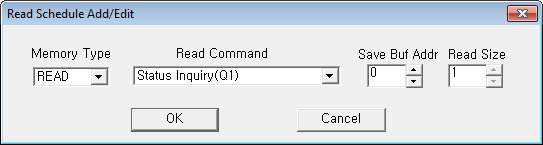

| <Figure 3> Example of SPT600 Series UPS communication driver's read schedule Add/Edit dialog box |
You can control UPS by using writing settings.
Digital Write
Digital write setting parameters are as follows:
1) Port Connected port number. (Not COM number)
2) Station Don't care.
3) Address Don't care.
4) Extra1 Enter as T, TL, T01 ~ T99, Q, S01 ~ S10, S01R0001 ~ S10R9999, C, CT and etc. (Refer to <Table 2>)
5) Extra2 Don't care.
Write command |
Contents |
Remarks |
T |
10 Second Test |
|
TL |
Test Until Battery Low |
|
T01 ~ T99 |
Test for Specified Time Period |
Test after 1~ 99 minute |
Q |
Turn On/Off Beep |
Toggle Beep |
S01 ~ S10 or S.1 ~ S.10 |
Shutdown Command |
Shutdown after 1 ~ 10 minute |
S01R0000 ~ S10R9999 or S.1R0000 ~ S.10R9999 |
Shutdown and Restore Command |
Shutdown after 1 ~ 10 minute Restore after 1 ~ 9999 minute |
C |
Cancel Shutdown Command |
|
CT |
Cancel Test Command |
|
| <Table 2> Write command and contents of SPT600 Series UPS communication driver | ||
Write example 1)
PORT : 0 STATION : 0 ADDRESS : 0000 EXTRA1 : T EXTRA2 : Blank
The setting parameter shown above is digital writing example to test SPT600 Series UPS device connected with no.0 port during 10 second.
Write example 2)
PORT : 0 STATION : 0 ADDRESS : 0000 EXTRA1 : TL EXTRA2 : Blank
The setting parameter shown above is digital writing example to test SPT600 Series UPS device connected no.0 port until status of battery Low.
Write example 3)
PORT : 0 STATION : 0 ADDRESS : 0000 EXTRA1 : C EXTRA2 : Blank
The setting parameter shown above is digital writing example to cancel Shutdown command of SPT600 Series UPS device connected with no.0 port.
Analog Write
Set the analog write setting by using same method with digital write.

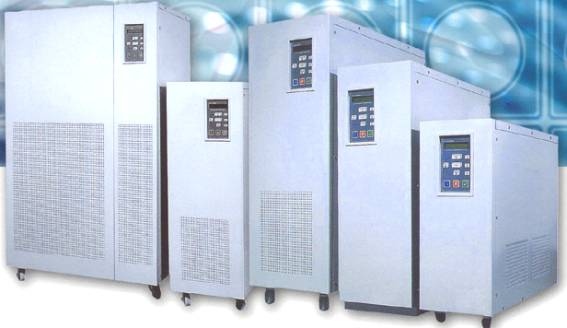

<Figure 4> is front appearance of SPT600 Series UPS device, <Figure 5> is back appearance.
 |
| <Figure 4> Front appearance of SPT600 Series UPS device |
 |

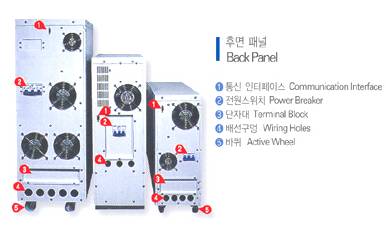

| <Figure 5> Back appearance of SPT600 Series UPS device |
