SHN-2800 Totalizer Communication Driver
SHN-2800
Totalizer Communication Driver is the driver to communicate with SHN-2800
Totalizer Equipment of Shinho System Co., Ltd. in
1. Read Settings
<Figure 1> is SHN-2800 Totalizer communication driver read setting examples.

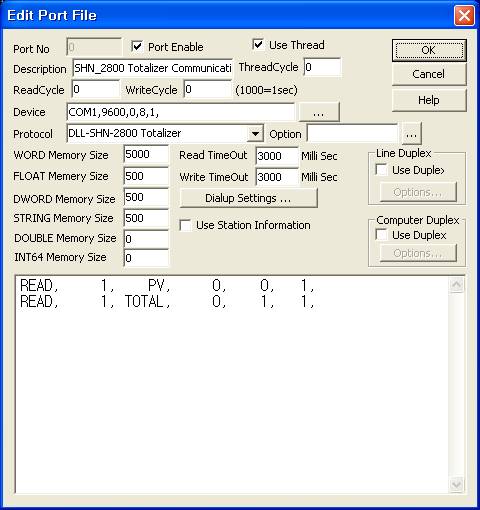

<Figure 1> SHN-2800 Totalizer communication driver read setting examples
<Figure 1> is the screen where Com Port(COM1), Com Baud(9600), Parity Bit(0), Data Bit(8), Stop Bit(1) are input in DEVICE part
SHN-2800 Totalizer’s Com Baud is set to one of the three(4800, 9600, 19200).
SHN-2800 Totalizer communication driver read schedule
Read schedule setting parameters are as follows:
1) STATION – Input equipment address between 0 ~ 99.
2) Read Command – ALARM1, ALARM2, A_STATUS, PV, TOTAL, C_TOTAL, AO, SCALE_H, SCALE_L, ADJ, AL1, AL2, DEADBAND, HIGH_O, LOW_O, FACTOR (Refer to <Table 1>)
3) Read Start Address – Don’t care.
4) Save Start Address for Communication Server – Input Memory Start Address which will store the data from equipment.
5) Read Size – Read Size is fixed with 1.
Read schedule example
READ, 1, PV, 0, 0, 1,
READ, 1, TOTAL, 0, 1, 1,
<Table 1> is a description of read commands and stored values of SHN-2800 Totalizer communication driver.
| Command | Contents | Stored Value(Save Start Address + 0) | Remarks |
| ALARM1 | Reading ALARM 1 | ALARM 1 Value | |
| ALARM2 | Reading ALARM 2 | ALARM 2 Value | |
| A_STATUS | Reading ALARM Status | ALARM Status | |
| PV | Reading Current Value(PV) | PV Value | |
| TOTAL | Reading Integrated Value | Integrated value | |
| C_TOTAL | Reading Instantaneous Integrated Value | Instantaneous Integrated Value | |
| AO | Reading Analog Output Value | Current Output Value | |
| SCALE_H | Reading Scale High Value | Scale High Value | |
| SCALE_L | Reading Scale Low Value | Scale Low Value | |
| ADJ | Reading Sensor Adj Value | Sensor Adj Value | |
| AL1 |
|
|
0 = High Alarm, 1 = Low Alarm |
| AL2 |
|
|
|
| DEADBAND | Reading AL DeadBand Value | AL DeadBand Value | |
| HIGH_O | Reading High Output Value | High Output Value | |
| LOW_O | Reading Low Output Value | Low Output Value | |
| FACTOR | Reading Factor Value | Factor Value |
<Table 1> Read commands and stored values of SHN-2800 Totalizer Communication Driver
SHN-2800 Totalizer store the same data in WORD, DWORD, FLOAT memory, but the data format are different.
If
you click the icon
in protocol option
part, you can see the dialogue box such as <Figure 2>. you can also set
read schedule by using this part.

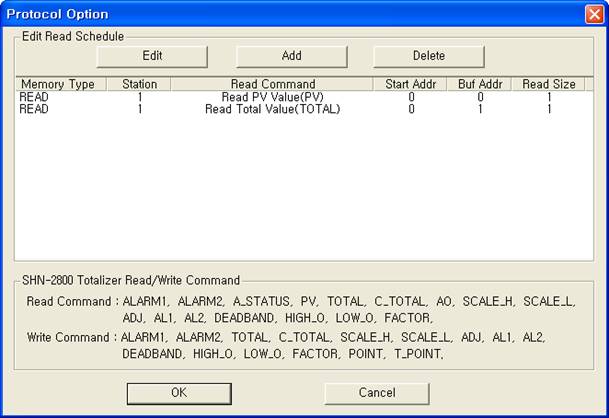

<Figure 2> Example SHN-2800 Totalizer Communication Driver’s Option dialogue box
You
can set read schedule by using
,
,
button and listbox
of <Figure 2>.

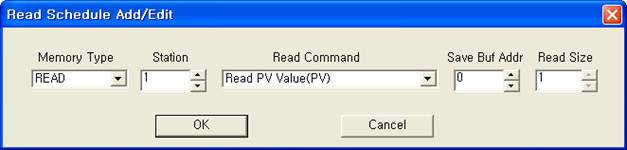

<Figure 3> Example of SHN-2800 Totalizer communication driver’s read schedule Add/Edit dialogue box
When you click Add button or Edit button in dialogue box of <Figure 2>, dialogue box of <Figure 3> is shown.
2. Write settings
You can change the setting values of SHN-2800 Totalizer Equipment by using write commands.
Bit write
Bit write and word write have the same setting parameters except output value(0 or 1).
Word write
Word write setting parameters are as follows:
1) PORT Port no. (0 ~ 255)
2) STATION Equipment ID between 0 ~ 99.
3) ADDRESS Don’t care.
4) Extra1 60 ALARM1, ALARM2, TOTAL, C_TOTAL, SCALE_H, SCALE_L, ADJ, AL1, AL2, DEADBAND, HIGH_O, LOW_O, FACTOR, POINT, T_POINT (Refer to <Table 2>)
5) Extra2 The number of decimal places. 0 = No decimal places, 1 ~ 7 = 1 ~ 7 decimal places.
<Table 2> is a description of write commands and the range of write value of SHN-2800 Totalizer communication driver.
| Command | Contents |
|
| ALARM1 | ALARM 1 Value Setting |
(Including decimal places) |
| ALARM2 | ALARM 1 Value Setting | |
| TOTAL | Integrated-Value Reset | |
| C_TOTAL | Instantaneous-Integrated-Value Reset | |
| SCALE_H | Scale High Value Setting | |
| SCALE_L | Scale Low Value Setting | |
| ADJ | Sensor Adj Value Setting | |
| AL1 |
|
0 = High Alarm, 1 = Low Alarm |
| AL2 |
|
|
| DEADBAND | AL DeadBand Value Setting |
(Including decimal places) |
| HIGH_O | High Output Value Setting | |
| LOW_O | Low Output Value Setting | |
| FACTOR | Factor Value Setting | |
| POINT | Decimal Places Setting related Instantaneous-Value | 0 = No decimal places, 1 ~ 7 = 1 ~ 7 decimal places |
| FACTOR | Decimal Places Setting related Integratead-Value |
<Table 2> Write commands and the range of write value of SHN-2800 Totalizer Communication Driver
Write example 1)
PORT : 0 STATION : 1 ADDRESS : 0000 EXTRA1 : TOTAL EXTRA2 : 0
The setting parameter shown above is an example of word write for reseting integrated-value of SHN-2800 Totalizer Equipment connected with 0 port, set to 1 station.
Write example 2)
PORT : 0 STATION : 1 ADDRESS : 0000 EXTRA1 : SCALE_H EXTRA2 : 1
The setting parameter shown above is an example of word write for changing Scale High Value of SHN-2800 Totalizer Equipment connected with 0 port, set to 1 station.
Because of ‘Extra2 = 1’, Scale High Value has one decimal place. Therefore, ‘Actual Output Value = Setting Value x 10’.
Block-Write
SHN-2800 Totalizer communication driver don’t support ‘Block write’.
3. Communication Cable Connection of EnerPulse Power Supply Equipment
You can connect SHN-2800 Totalizer Equipment and communication cable in the following ways.
Communication Cable Connection
To connect SHN-2800 Totalizer Equipment and communication cable, you must use 8(+), 9(-) of serial socket shown in the back of equipment and RS-485 +, - of comunication cable.
<Figure 4> shows the appearance of SHN-2800 Totalizer.
<Figure 4> Appearance of SHN-2800 Totalizer Equipment
4. SHN-2800 Totalizer Equipment’s Address, Com Baud, so on Setting
You can set SHN-2800 Totalizer Equipment’s Address, Com Baud and so on, such as <Figure 5>.

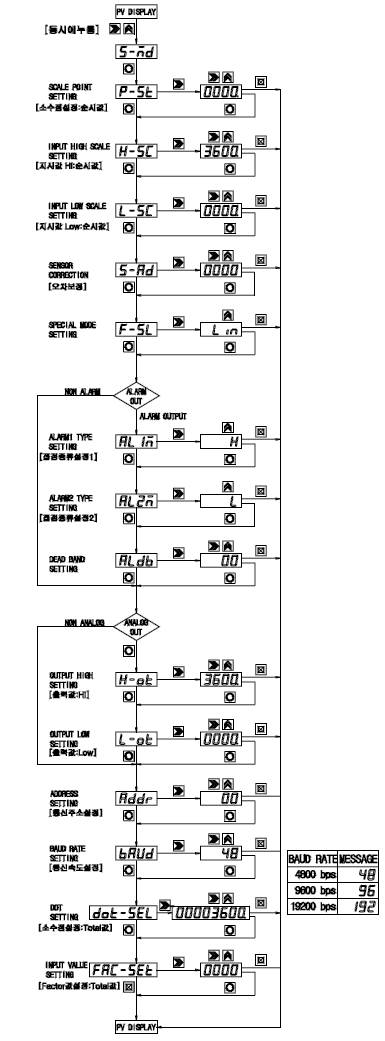

<Figure 5> SHN-2800 Totalizer Equipment’s Address, Com Baud, so on Setting examples
