SHINKO FC Communication Driver



SHINKO FC is driver to communicate with FCD/FCR/FCS controller of SHINKO TECHNOS Corp., in Japan.

Usable device – Except FCS-23A, FCR-13A, FCR-15A, FCR-23A, FCD-13A, FCD-15A.



1. Read settings



<Figure 1> is read setting example of SHINKO FC communication driver.

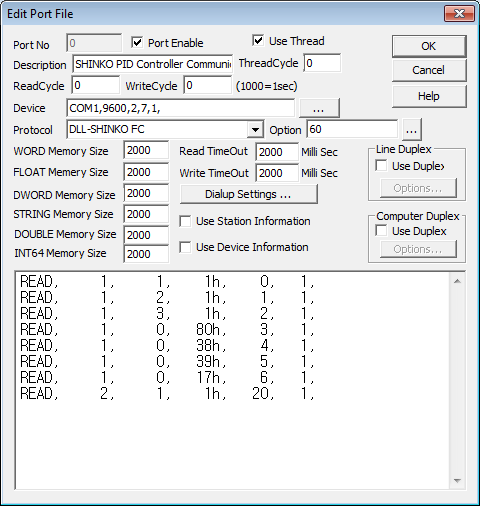

<Figure 1> Read setting example of SHINKO FC communication driver
Device part of  <Figure 1> input Com Port(COM1), Baud Rate(9600), Parity Bit(2 : Fixed to Even), Data Bit(Fixed to 7), Stop Bit(1) respectively, according to device.



Reference) SHINKO FC series controller supports the RS-232C and RS-485 communication. In case of using RS-485 communication, you have to use RS-232C -> RS-485 communication converter and etc.

             ( RS-232C -> RS-485 communication converter of SHINKO Corp. : Recommend the IF-300-05 )



SHINKO FC communication driver's read schedule

READ STATION Memory Number Data Item Number Memory Save Address Read Size
READ, 1, 1, 1h, 0, 1,
READ, 1, 2, 1h, 1, 1,
READ, 1, 3, 1h, 2, 1,
READ, 1, 0, 80h, 3, 1,
READ, 1, 0, 38h, 4, 1,
READ, 1, 0, 39h, 5, 1,
READ, 1, 0, 17h, 6, 1,
READ, 2, 1, 1h, 20, 1,

1) STATION : Station (Meter Address) number of SHINKO FC.

2) Read Type : Memory number. ( Refer to <Table 1> )

Used area : 1 ~ 7,

Unused area : 0

3) Read Start Address : Data Item number. ( Refer to <Table 2> )

1h ~ 43h : Possible to Read/Write area

80h ~ 86h : Read only area

4) Save Start Address for Communication Server : Buf postion to save the read status value.

5) Read Size : Size to read. (Always 1)

Data Item Number

Contents

Remarks

1h

SV or Step SV



4h

Main Proportional Band Setting



5h

Cooling Proportional Band Setting

FCD-13A, FCR-13A, FCR-23A only possible

6h

Integral Time setting



7h

Derivative Time Setting



Bh

Alarm 1 ( A1 ) Setting



Ch

Alarm 2 ( A2 ) Setting

FCD-13A, FCR-13A, FCR-23A, FCS-23A only possible

Dh

Alarm 3 ( A3 ) Setting

FCD-13A, FCD-15A only possible

Eh

Alarm 4 ( A4 ) Setting

16h

Overlap Band/Dead Band Setting

FCD-13A, FCR-13A, FCR-23A only possible

1Ch

Main Output High Limit Setting

FCD-13A, FCR-13A, FCR-23A, FCS-23A only possible

1Dh

Main Output Low Limit Setting

20h

Cooling Output High Limit Setting

FCD-13A, FCR-13A, FCR-23A only possible

21h

Cooling Output Low Limit Setting

36h

Step ( 1 ~ 7 ) Time Setting



3Ah

Open/Close Dead Band

FCD-15A, FCR-15A only possible
<Table 1> Data Item number of possible area to use memory number for SHINKO FC compatible device
Data Item Number Contents Range of Value Possible Device
1h SV or Step SV   All model
2h Setting Value Memory Number or Step Number Selection
3h Auto-tuning Perform/Cancel 0 = AT Cancel,   1 = AT Perform
4h Main Proportional Band Setting
5h Cooling Proportional Band Setting   FCD-13A, FCR-13A, FCR-23A
6h Integral Time setting   All model
7h Derivative Time Setting
8h Main Proportional Cycle Setting   FCD-13A, FCR-13A, FCR-23A, FCS-23A
9h Cooling Proportional Cycle Setting   FCD-13A, FCR-13A, FCR-23A
Ah Manual Reset Setting   All model
Bh Alarm 1 ( A1 ) Setting
Ch Alarm 2 ( A2 ) Setting   FCD-13A, FCR-13A, FCR-23A, FCS-23A
Dh Alarm 3 ( A3 ) Setting   FCD-13A, FCD-15A
Eh Alarm 4 ( A4 ) Setting
Fh Heater Burnout Alarm Setting   FCD-13A, FCR-13A, FCR-23A
10h Loop Break Alarm Action Time Setting   All model
11h Loop Break Alarm Action Span Setting 0 : Unhook,
1  ~ 3 : Lock 1 ~ 3
12h Setting Value Lock Selection
13h SV High Limit Setting
14h SV Low Limit Setting
15h Sensor Correction Value
16h Overlap Band/Dead Band Setting   FCD-13A, FCR-13A, FCR-23A
17h Remote/Local Selection 0 : Local,   1 : Remote FCD, FCR
18h Scaling High Limit Setting   All model
19h Scaling Low Limit Setting
1Ah Decimal Point Place Selection 0 : No Decimal Point,
1 ~ 3 : 1 ~ 3 Digit		 FCD, FCR
1Bh PV Filter Time Constant Setting   All model
1Ch Main Output High Limit Setting   FCD-13A, FCR-13A, FCR-23A, FCS-23A
1Dh Main Output Low Limit Setting
1Eh Main Output ON/OFF Action Hysteresis Setting
1Fh Cooling Action Mode Selection 0 : Air Cooling,
1 : Oil Cooling,
2 : Water Cooling		 FCD-13A, FCR-13A, FCR-23A
20h Cooling Output High Limit Setting
21h Cooling Output Low Limit Setting
22h Cooling Output ON/OFF Action Hysteresis Setting   FCD-13A, FCR-13A, FCR-23A, FCS-23A
23h Alarm 3 ( A3 ) Action Type Selection 0 : No Alarm,
1 : High Limit Alarm,
2 : High Limit Alarm With Standby,
3 : Low Limit Alarm,
4 : Low Limit Alarm With Standby,
5 : H/L Limit Alarms,
6 : H/L Limit Alarms With Standby,
7 : H/L Limit Range Alarm,
8 : H/L Limit Range Alarm With Standby,
9 : Process High Alarm,
A : Process High Alarm With Standby,
B : Process Low Alarm,
C : Process Low Alarm With Standby
24h Alarm 4 ( A4 ) Action Type Selection
25h Alarm 1 ( A1 ) Hysteresis Setting   All model
26h Alarm 2 ( A2 ) Hysteresis Setting   FCD-13A, FCR-13A, FCR-23A, FCS-23A
27h Alarm 3 ( A3 ) Hysteresis Setting   FCD
28h Alarm 4 ( A4 ) Hysteresis Setting
29h Alarm 1 ( A1 ) Action Delayed Timer Setting   All model
2Ah Alarm 2 ( A2 ) Action Delayed Timer Setting   FCD-13A, FCR-13A, FCR-23A, FCS-23A
2Bh Alarm 3 ( A3 ) Action Delayed Timer Setting   FCD
2Ch Alarm 4 ( A4 ) Action Delayed Timer Setting
2Dh External Setting Input High Limit Setting   FCD, FCR
2Eh External Setting Input Low Limit Setting
2Fh Transmission Output Mode Selection 0 : PV,   1 : SV,   2 : MV
30h Transmission Output High Limit Setting
31h Transmission Output Low Limit Setting
32h Indication Selection When Control Output OFF 0 : OFF Indication,
1 : No Indication,
2 : PV Indication		 All model
33h SV Rising Rate Setting
34h SV Falling Rate Setting
35h Fixed Value Control/Program Control Selection 0 : Fixed Value Control,
1 : Program Control
36h Step ( 1 ~ 7 ) Time Setting
37h Control Output OFF Function Selection Fixed Value Control
0 : ON, 1 : OFF
Program Control
0 : STOP, 1 : RUN
38h Auto/Manual Control Selection 0 : Automatic,   1 : Manual FCD, FCR
39h Manual Manipulated Variable Setting
3Ah Open/Close Dead Band   FCD-15A, FCR-15A
3Bh Open Output Time Setting
3Ch Close Output Time Setting
3Dh MV Operation Cycle Setting
3Eh Infrared Emissivity Setting   All model
3Fh Control Output OFF Function Selection When Excess Input 0 : Disable,
1 : Enable
40h Alarm 1 ( A1 ) Action Energized/Deenergized Selection 0 : Energizer,
1 : Deenergizer		 FCD-13A, FCR-13A, FCR-23A, FCS-23A
41h Alarm 2 ( A2 ) Action Energized/Deenergized Selection
42h Alarm 3 ( A3 ) Action Energized/Deenergized Selection FCD-13A, FCR-13A, FCR-23A
43h Alarm 4 ( A4 ) Action Energized/Deenergized Selection
80h PV Reading   All model
81h Reading Main Output Manipulated Variable
82h Reading Cooling Output Manipulated Variable   FCD-13A, FCR-13A, FCR-23A
83h Reading Current SV during Program Control   All model
84h Reading the Remaining Time during Program control
85h Reading Output Status 0 ~ 1 Bit : Out1, Out2,( 0 = OFF, 1 = ON)
2 ~ 5 Bit : A1 ~ A4 Output,
6 Bit : Heater Burnout Alarm Output,
7 Bit : Loopbreak Alarm Output,
8 Bit : Over Scale,
9 Bit : Under Scale,
10 ~ 15 Bit : Not Used ( Always 0 )
86h Reading of Selected Setting Value Memory Number
<Table 2> Data Item number and contents of SHINKO FC compatible device

If you click the icon  in protocol option part at <Figure 1>, you can see the dialog box such as <Figure 2>. You can also set read schedule by using this part.

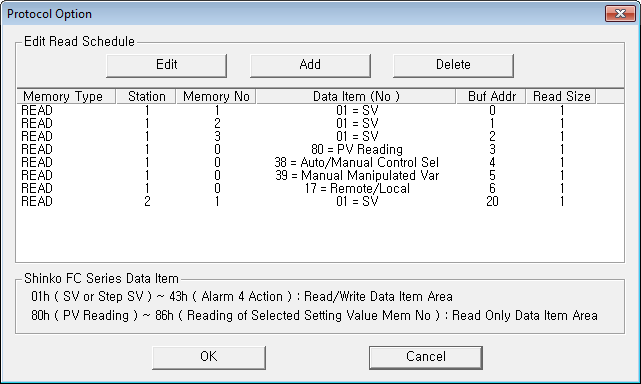

<Figure 2> Example of SHINKO FC communication driver's Option dialog box
You can set read schedule by using , , button and listbox of <Figure 2>.

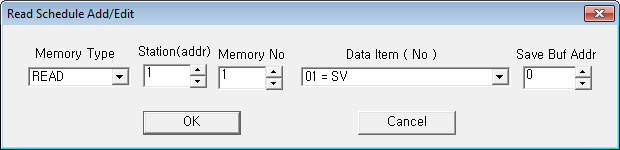

<Figure 3> SHINKO FC driver's read schedule Add/Edit dialog box

When you click Add button or Edit button in dialog box of <Figure 2>, dialog box of <Figure 3> is shown.



2. Writing settings

You can change setting value, etc of controller by using writing setting(regardless of SCAN File).



Digital Write

You can control Bit unit(ON/OFF) by using digital write.



Digital write setting parameters are as follows :

1) PORT           PORT number which set SHINKO FC communication.

2) STATION      Station Address of SHINKO FC.

3) Address      Hexadecimal address of output Data Item. ( Refer to <Table 2> )

4) Extra1          Memory number. ( Refer to <Table 1> )

Used area : 1 ~ 7,

Unused area : Blank or 0

5) Extra2          Don't care.



Write example 1)

Station : 1  Address : 0038  Extra1 : 0, EXTRA2 : Blank

If you set as above and write digital value, you can change(0 : Auto, 1 : Manual) Auto/Manual Control status of no.1 SHINKO FC series.



Write example 2)

Station : 1  Address : 0003  Extra1 : 0, EXTRA2 : Blank

If you set as above and write digital value, you can change(0 : Cancel, 1 : Perform) Auto-Tuning status of no.1 SHINKO FC series.



Analog Write

You can control/change value of SV, MV and etc by using analog write.



Analog write setting parameters are as follows :

1) PORT           PORT number which set SHINKO FC communication.

2) STATION      Station Address of SHINKO FC.

3) Address      Hexadecimal address of output Data Item. ( Refer to <Table 2> )

4) Extra1          Memory number. ( Refer to <Table 1> )

Used area : 1 ~ 7,

Unused area : Blank or 0

5) Extra2          Don't care.



Write example 1)

Station : 1  Address : 0001  Extra1 : 1, EXTRA2 : Blank

If you set as above and write analog value, you can change SV value of no.1 memory number for no.1 SHINKO FC series as set value.



Write example 2)

Station : 1  Address : 0001  Extra1 : 2, EXTRA2 : Blank

If you set as above and write analog value, you can change SV value of no.2 memory number for no.1 SHINKO FC series as set value.



Write example 3)

Station : 1  Address : 0039  Extra1 : 1, EXTRA2 : Blank

If you set as above and write analog value, you can change Manual Manipulated Variable (MV) value of no.1 SHINKO FC series as set value. ( But, it is possible to be set when Auto/Manual Control (38h) is Manual (value is 1) )



3. Power and communication setting of SHINKO FC series



Power connection

Connect 100 ~ 240 V AC to no.2 and no.3 terminal of the back terminal block for SHINKO FC series(<Figure 4>).

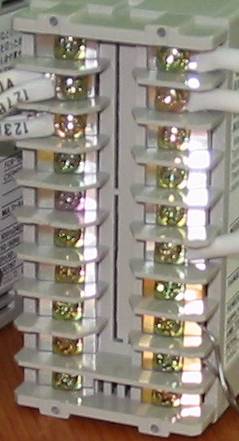

<Figure 4> The back terminal block of SHINKO FC series
Communication cable connection

Connect RS-232C, RS-485 communication cable to no.11 ( Tx ), no.12 ( Rx ), no.16 ( Com ) terminal of SHINKO FC series back terminal block(<Figure 4>).



Notice) In case of using RS-485, usually use the RS-232C  <-> RS-485 communication converter. But, in case of SHINKO controller, converter such as <Figure 5> is recommended.

If you want to do communication by using RS-232C  <-> RS-485 communication converter of SHINKO Corp. of <Figure 5>,  Com Baud of FC series device and Com Baud of converter have to be same. (Also, Parity Bit, Data Bit and Stop Bit must be same)

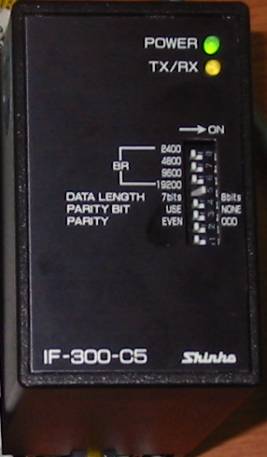

<Figure 5> RS-232C <-> RS-485 communication converter of SHINKO Corp.

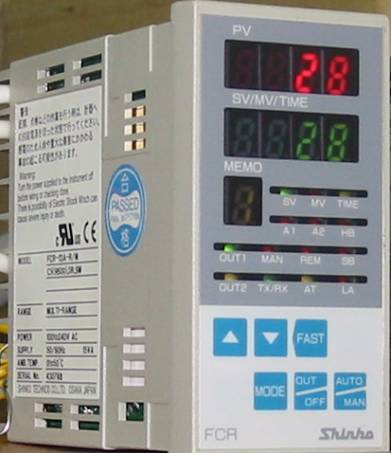

<Figure 6> Appearance of SHINKO FCR controller
4. Station, Com Baud and Protocol Setting of SHINKO FC series



Station settings

1)              Press the ¡å(Down) direction button and 'MODE' button of <Figure 6>, during about 5 sec.

2)              'Loc' letter is displayed at PV display area.

3)              If you press 'MODE' button 5 times, 'chno' letter is displayed.

4)              Set the Station number between 0 and 95, by using ¡ã(Up), ¡å(Down) button.

5)              You can complete the settings by pressing 'MODE' button 3 more.



Communication speed settings

1)              Press the ¡å(Down) direction button and 'MODE' button of <Figure 6>, during about 5 sec.

2)              'Loc' letter is displayed at PV display area.

3)              Press the 'MODE' button 6 times.

4)              Set the Com Baud between 2400(24) and 19200(192) by using ¡ã(Up), ¡å(Down) button.

5)              You can complete the settings by pressing 'MODE' button 2 more.



Protocol type settings

1)              Press the ¡å(Down) direction button and 'MODE' button of <Figure 6>, during about 5 sec.

2)              'Loc' letter is displayed at PV display area.

3)              Press 'MODE' button 7 times.

4)              Select protocol type as Shinko Standard between Shinko Standard and Modbus, by using ¡ã(Up), ¡å(Down) button. (Press the ¡å(Down) button : nohL letter is displayed)

5)              You can complete the settings by pressing 'MODE' button 1 more.
