SF-2200 Protocol Communication Driver

SF-2200 Protocol is the driver to communicate with Gas Volume Conversion Device of JB Enertek in Korea.

1. Read settings

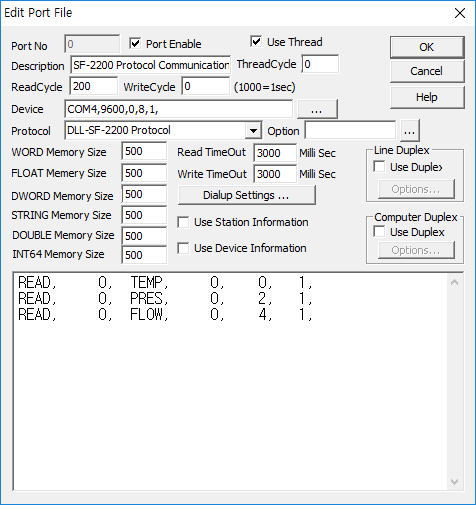

<Figure 1> is read setting example of SF-2200 Protocol communication driver.

<Figure 1> Read setting example of SF-2200 Protocol communication driver

Device part of <Figure 1> input com portCOM4), baud rate( 9600 ), parity bit( 0 ), data bit( 8 ), stop bit( 1 )respectively, accordint to the setting of equipment.

Read schedule of SF-2200 Protocol communication driver

Read schedule setting parameters are as follows:

1) station – don't card.

2) read command – Command = SERIAL, TEMP, PRES, CORR, FLOW, BATT.

3) read address – don't care.

4) Save start address for Communication Server – Saving start address of Communication Server.

5) Read size – fixed to 1.

Read schedule example)

READ, 0, TEMP, 0, 0, 1,
READ, 0, PRES, 0, 2, 1,
READ, 0, FLOW, 0, 4, 1,

<Table 1> is data saving address and readed value for each read command of SF-2200 Protocol communication driver.

Read Command	Contents	Data saving value of Communication Server	Remarks
SERIAL	read of serial number	Saving Start Address + 0 : 1st serial number data ... Saving Start Address + n : serial number data	save serial number character at STRING memory (Saving Start Address + 0)
TEMP	read of temperature	Saving Start Address + 0 : current temperature Saving Start Address + 1 : unit	FLOAT unit 0 : C, 1 : F
PRES	read of pressure	Saving Start Address + 0 : current pressure Saving Start Address + 1 : unit	FLOAT unit 0:kpa, 1:kgf/cm2, 2:bar, 3:psi, 4:atm
CORR	read of correction value	Saving Start Address + 0 : before value of correction Saving Start Address + 1 : correction value Saving Start Address + 2 : K Factor Saving Start Address + 3 : LCD Off time Saving Start Address + 4 : Data saving interval Saving Start Address + 5 : 유효표시자리수 Saving Start Address + 6 : Battery Alarm Saving Start Address + 7 : Battery Offset	DWORD unit DWORD unit WORD unit BYTE unit BYTE unit BYTE unit WORD unit WORD unit
FLOW	read of flow rate	Saving Start Address + 0 : flow rate value	FLOAT unit
BATT	read of Battery, C, K value	Saving Start Address + 0 : Battery value Saving Start Address + 1 : C value Saving Start Address + 2 : K value	FLOAT unit FLOAT unit FLOAT unit
<Table 1> Data saving address and readed value for each read command

SF-2200 Protocol communication driver store the same data in WORD, DWORD, FLOAT, DOUBLE, INT64 memory, but the data format are different.

If you click the icon in protocol option part at <Figure 1>, you can see the dialog box such as <Figure 2>. you can also set read schedule by using this part.

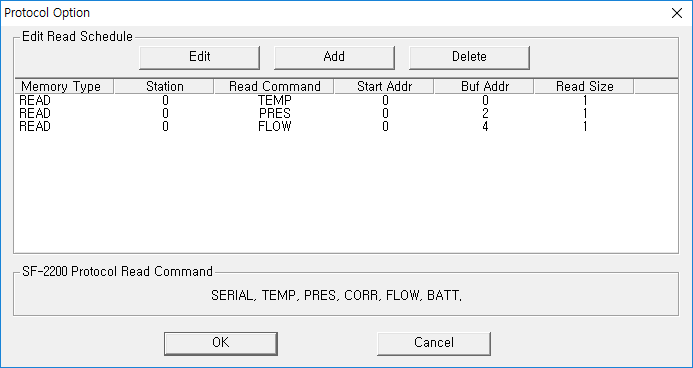

<Figure 2> Example of SF-2200 Protocol communication driver’s Option dialog box

You can set read schedule by using , , button and listbox of <Figure 2>.

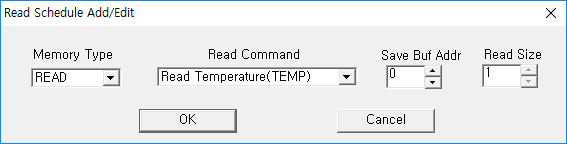

<Figure 3> Example of SF-2200 Protocol communication driver’s read schedule Add/Edit dialog box

When you click Add button or Edit button in dialogue box of <Figure 2>, dialogue box of <Figure 3> is shown.

2. Write settings

SF-2200 Protocol don't support 'Write settings'.

3. Appearance of SF-2200 Controller

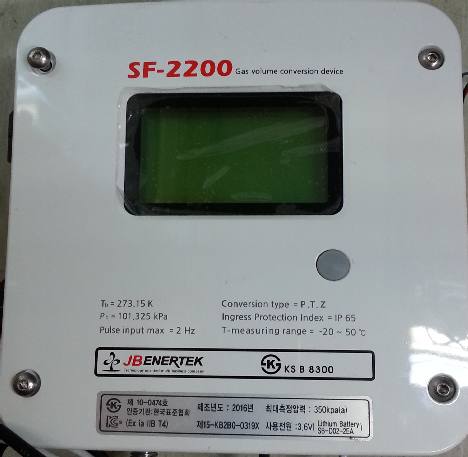

<Figure 4> shows the appearance of SF-2200 Controller.

<Figure 4> Appearance of SF-2200 Protocol Controller
