SACI JBUS communication driver

SACI JBUS communication driver is the driver to communicate with controller(IFRA) of SACI Corp.

1. Read settings

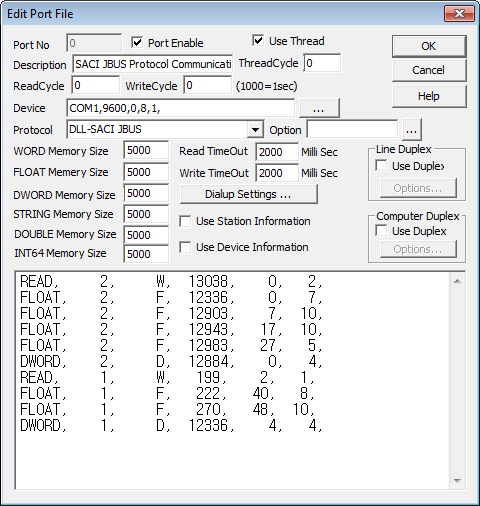

<Figure 1> is read setting example of SACI JBUS communication driver.

<Figure 1> Read setting example of SACI JBUS communication driver

Device settings are fixed to Com Port(COM1), Com Baud(9600), Parity Bit(0), Data Bit(8), Stop Bit(1), respectively.

Read schedule example)

READ	STATION	Read Type	Read Address(Parameter)	Memory Save Address	Read Size
READ,	2,	W,	13038,	0,	2,
FLOAT,	2,	F,	12336,	0,	7,
FLOAT,	2,	F,	12903,	7,	10,
FLOAT,	2,	F,	12943,	17,	10,
FLOAT,	2,	F,	12983,,	27,	5,
DWORD,	2,	D,	12884,	0,	4,
READ,	1,	W,	199,	2,	1,
FLOAT,	1,	F,	222,	40,	8,
FLOAT,	1,	F,	270,	48,	10,
DWORD,	1,	D,	12336,	4,	4,

1) STATION : It is unique number which was set at each indicator. If this number is in discord with you input, communication is impossible.

2) Read Type : There is WORD, FLOAT, DWORD memory type at JBUS. Because memory type is different according to each address, if you read the value of relevant address, you have to write W when value to read is WORD and F when value to read is FLOAT and D when value to read is DWORD.

3) Read Start Address : Address position to read (Because it uses address as hexadecimal at indicator manual, use address by converting as decimal number. Refer to <Table 2> and <Table 3> for detailed memory area.)

4) Save Start Address for Communication Server : Buf position to save the read status value.

5) Read Size : The number of items to read at a time. (In case of DWORD or FLOAT, limit the read size as 10, because if the read size is over 10, timeout or other communication trouble is possible to occur)

2. Writing settings

Write to direct address of controller, regardless of SCAN File.

Digital Write

You can output ON/OFF status by using digital write.

Digital write setting parameters are as follows :

1) PORT Connected PORT number

2) Station Station number Unique number which was set at each indicator.

3) ADDRESS Address to output Output the hexadecimal value as it is in contrast with reading.

4) EXTRA2 Channel number to output It is possible to use number between 0 and 15.

Write example 1) When indicator is TMC device,

STATION:1, ADDRESS:32F1, EXTRA1:3

If you set as above, you can change Digital Output 4th channel value of TMC device.

Analog Write

You can write FLOAT or DWORD value to controller by using analog write.

Analog write setting parameters are as follows :

1) PORT Connected PORT number

2) Station Station number Unique number which was set at each indicator.

3) ADDRESS Address to output Output the hexadecimal value as it is in contrast with reading.

4) EXTRA1 Memory type of address to output W = Output 2 byte value. F = Output 4 byte value as point format. D = Output 4 byte as LONG value.

Write example 1) When indicator is TMC device,

STATION:1, ADDRESS:3030, EXTRA1:F

If you set as above, you can change Voltage value of TMC device.

3. PARAMETERS and Memory Information of SACI device

There is much parameter information at SACI device.

Address area is different for each indicator. Refer to manual which is offered when buy the indicator for etc memory information, because there is much more area, in reality.

Memory information of TMC device

Address(Hexadecimal)	Address(Decimal)	Contents	Read/Write	Memory Format	Remarks
3030	12336	ESCALAV	R/W	FLOAT	Voltage
3034	12340	ESCV_BCD	R	DWORD
3038	12344	ESCALAI	R/W	FLOAT	Current
303C	12348	ESCI_BCD	R	DWORD
3040	12352	REF_ENER	R/W	FLOAT	Energy constant
3044	12356	REF_BCD	R	DWORD
3048	12360	ESCALAP	R	FLOAT
3154	12628	TOTAL_0	R/W	DWORD*4
3164	12644	TOTAL_1	R/W	DWORD*4
3174	12660	TOTAL_2	R/W	DWORD*4
3184	12676	TOTAL_3	R/W	DWORD*4
3194	12692	TOTAL_4	R/W	DWORD*4
31A4	12708	TOTAL_5	R/W	DWORD*4
31B4	12724	TOTAL_6	R/W	DWORD*4
31C4	12740	TOTAL_7	R/W	DWORD*4
31D4	12756	TOTAL_8	R/W	DWORD*4
31E4	12772	TOTAL_9	R/W	DWORD*4
31F4	12788	TOTAL_10	R/W	DWORD*4
3204	12804	TOTAL_11	R/W	DWORD*4
3214	12820	TOTAL_12	R/W	DWORD*4
3224	12836	TOTAL_13	R/W	DWORD*4
3234	12852	TOTAL_14	R/W	DWORD*4
3244	12868	TOTAL_15	R/W	DWORD*4
3254	12884	TOTAL_16	R/W	DWORD*4
32DA	13018	NOMBRE	R/W	10 BYTE	SERIAL NUMBER
32E4	13028	ID	R/w	BYTE	IDENTITY
32E5	13029	TIPO	R		DEVICE TYPE
32EB	13035	CLAVE	R/W		ACCESS CODE.MAX.9999
32EF	13039	STATUS_GEN	R	BYTE	STATUS GENETAL
32F0	13040	STATUS_DIG	R/W	BYTE	Indicates pulses or digital output
32F1	13041	SALIDA_DIG	R/W	BYTE	Indicates the status of the digital output
<Table 2> Memory information of TMC device

Address (Hexadecimal)	Address (Decimal)	Contents	Read/Write	Memory Type	Remarks
0072		NOMINAL VOLTAGE WRITING	W	FLOAT	Write only
0076		NOMINAL CURRENT WRITING	W	FLOAT	Write only
00B8		NOMINAL ENERGY IMPULSE	W	FLOAT	Write only
00C7	199	INPUT STATUS	R	BYTE	BIT 0 = ABIT 1 = BBIT 2 = CBIT 3 = D(1 = OPEN, 0 = CLOSE) BIT 7 = OK BATTERY1= OK
00DE	222	P	R	FLOAT
00E2	226	Q	R	FLOAT
00E6	230	S	R	FLOAT
00EA	234	COS	R	FLOAT
00EE	238	Vr	R	FLOAT
00F2	242	Vs	R	FLOAT
00F6	246	Vt	R	FLOAT
00FA	250	Freq	R	FLOAT
00FE	254	Ep+	R	DWORD
0102	258	Ep-	R	DWORD
0106	262	Eq+	R	DWORD
010A	266	Eq-	R	DWORD
010E	270	Pr	R	FLOAT
0112	274	Ps	R	FLOAT
0116	278	Pt	R	FLOAT
011A	282	Qr	R	FLOAT
011E	286	Qs	R	FLOAT
0122	290	Qt	R	FLOAT
0126	294	Sr	R	FLOAT
012A	298	Ss	R	FLOAT
012E	302	St	R	FLOAT
0132	306	Ir	R	FLOAT
0136	310	Is	R	FLOAT
013A	314	It	R	FLOAT
02D0		ENERGY COUNTERS SETTING EP+	W	DWORD	Write only
02D4		ENERGY COUNTERS SETTING EP-	W	DWORD	Write only
02D8		ENERGY COUNTERS SETTING EQ+	W	DWORD	Write only
02DC		ENERGY COUNTERS SETTING EQ-	W	DWORD	Write only
3030	12336	TOTAL ENERGY COUNTER	R	FLOAT*4	EP+,EP-,EQ+,EQ-
3433	13363	ID	R	BYTE	HIBYTE = IDENTITY
3531	13617	NOMINAL VOLTAGE	R	FLOAT	Read only
3532	13618	NOMINAL CURRENT	R	FLOAT	Read only
3731	14129	NOMINAL ENERGY IMPULSE	R	FLOAT	Read only
<Table 3> Memory information of MFR and TECM device

Except above table, because there is much more area in reality, refer to manual about etc memory information which is offered when buy the indicator.
