RHU communication driver



RHU communication driver is the driver to communicate with RHU automatic insertion machine controller.



1. Read settings





<Figure 1> is read setting example of RHU communication driver.

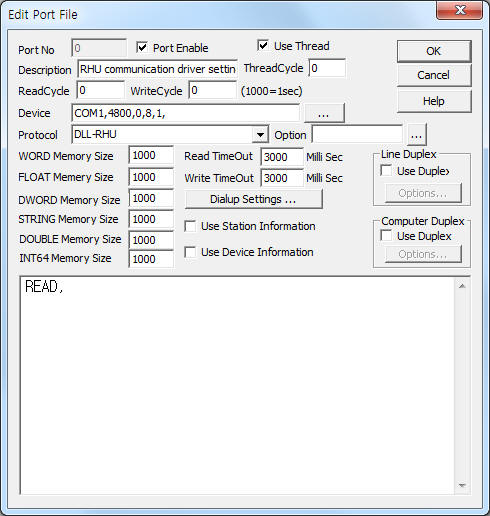

<Figure 1> Read setting example of RHU communication driver

Device part of  <Figure 1> input com port( COM1 ), baud rate( 4800 ), parity bit( 0 ), data bit( 8 ), stop bit( 1 ) according to setting of controller.



Read schedule for RHU communication driver

Read schedule for RHU communication driver input 'READ' one line.



RHU communication driver can Download, Upload operation information data.



Error, complete status

RHU communication driver save error and complete status for Download, Upload  to memory such as <Table 1>.

Also save to 'c:\error_msg000.txt' file for error status.



Contents Memory address Address for Digital Input Tag
error status 1st bit of WORD memory 0000
complete status for Download, Upload, ... 2nd bit of WORD memory 0001
<Table 1> Contents and address for error, complete status

Note) RHU communication driver always set On for error, complete status bit when occur error, complete status.

So, you should to set Off after read the status bit such as follows.

Memory data Off setting method of Communication Server) You can set 'Off' the memory data by using Extra1 : '#mem#' at Digital, Analog Output Tag.



2. Write settings

You can Download, Upload, ... by using write settings.



Digital Write

Digital write setting parameters are as follows:

1)  PORT                   Port no. (0 ~ 255)

2)  STATION             don't care.

3)  ADDRESS           don't care.

4) Extra1                    write command = CMD_FILE, DOWNLOAD, UPLOAD. ( refer to <Table 2> )

4) Extra1                    overwrite selection when UPLOAD command.

0 : don't overwrite Upload data when same file exist.

1 : overwrite Upload data when same file exist.



<Table 2> is write command and setting method of RHU communication driver.

Write command Usage

Writing, reading data

Remakrs
CMD_FILE -

command data = read 1st line data of

'C:\cmd_file%03d.txt' ( %03d = port number ) file

can send long length command data
DOWNLOAD send write command after pressing DOWNLOAD, UPLOAD switch

input Download data file after command

example) DOWNLOAD 1.TXT

( 1.TXT = file of 'work folder\DATA' folder )
UPLOAD

input 2 filename after command,

1st filename = arbitray name,

2nd filename = Uploaded data saving file

example) UPLOAD 1.TXT  UP\UP123.TXT

 (UP123.TXT = file of 'work folder\DATA\UP' folder )
<Table 2> Write command and setting method of RHU communication driver

Note) Arbitray filename of UPLOAD write command use for equal paramter with UICS, VCD communication driver.



Write example 1)

PORT:0,  station:0, ADDRESS:0000, Extra1: cmd_file,  Extra2 : 1,  1st line contents of 'C:\cmd_file000.txt' file ='UPLOAD 1.txt up\rhu.txt'

The setting parameter shown above is write command sending example.

Communication driver get from 1st line data of 'C:\cmd_file000.txt', Command =  UPLOAD 1.txt up\rhu.txt.

Above setting is UPLOAD command example. after writing, the Uploaded data save at 'rhu.txt'.

If exist 'rhu.txt' file, communication driver overwrite with Uploaded data.

(  1.txt  = Arbitray filename )



Write example 2)

PORT:0,  station:0, ADDRESS:0000, Extra1: cmd_file,  Extra2 : 1,  1st line contents of 'C:\cmd_file000.txt' file ='DOWNLOAD downdata\dn02.txt'

The setting parameter shown above is write command sending example.

Communication driver get from 1st line data of 'C:\cmd_file000.txt', Command =  DOWNLOAD downdata\dn02.txt.

Above setting is DOWNLOAD command example. The downloading data get from 'dn02.txt'.



Analog Write

Analog write and digital write have the same setting parameters except output value.



3. Setting example for error, complete status bit

 Setting example for error, complete status bit of RHU communication driver are as follows :

1) Make Digital Input Tag for error, complete status bit at SCADA Server.

2) Create script such as <Table 3>, <Figure 2> to 'Script when program running'. This script show error message box at SCADA Server when occur error.

3) You can make 'complete' status message box same method as avove.



Function of script

Contents
show message box at SCADA Server when occur error

if($err_check == OFF) {

   flag = OFF;

   return;

}

if(flag == ON) return;



handle  = @FileOpen("C:\\error_msg000.txt", "r");

if(handle == 0) return;



len = @FileRead(handle, buf, 79);

@FileClose(handle);



buf[len] = 0;

@Message(buf);

flag = ON;

$err_flag_clear1 = OFF;
<Table 3> Script example for error message box

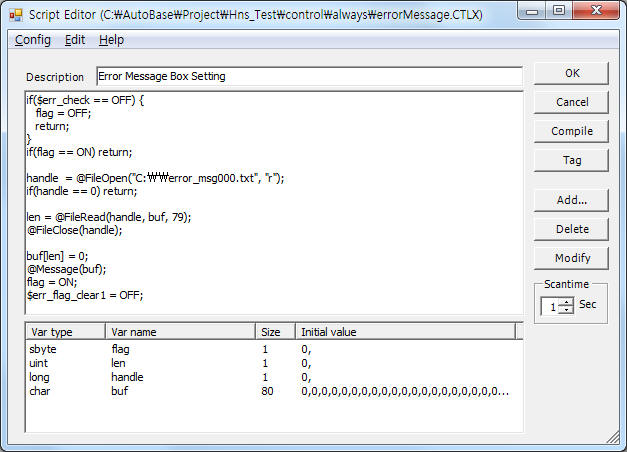

<Figure 2> Script example for error message box at Studio
