PowerSync communication driver is the driver to communicate with Compressor controller.

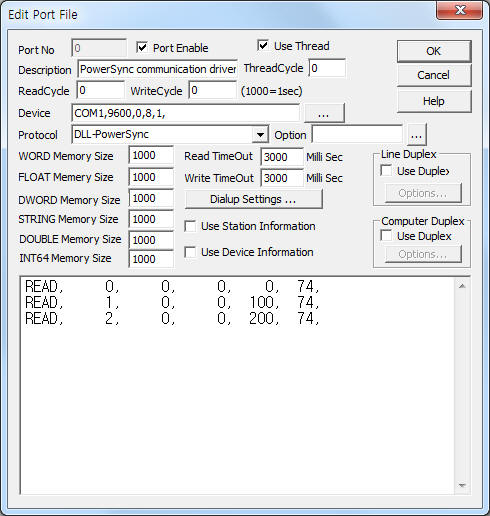

<Figure 1> is read Schedule setting example of PowerSync communication driver.
|
| <Figure 1> Read Schedule setting example of PowerSync communication driver |
Device part of <Figure 1> input Com Port(COM1), Baud Rate(9600), Parity Bit(0), Data Bit(8), Stop Bit(1) respectively according to setting of controller.
PowerSync communication driver¡¯s read schedule
Read schedule setting parameters are as follows:
1) STATION – 0 ~ 15 station number of compressor.
2) Read command – don't care.
3) Read start address – don't care.
4) Save Start Address for Communication Server – Input save start address of communication server.
5) Read Size – fixed to 74 word. ( refer to <table 1> )
Read schedule example)
READ, 0, 0, 0, 0, 74,
READ, 1, 0, 0, 100, 74,
READ, 2, 0, 0, 200, 74,
<Table 1>, <Table 2> are data saving address and contents of PowerSync Compressor communication driver, WORD and DWORD memory.
| Data saving address | Contents | Range |
Remarks |
| Start addr + 0 |
|
0 – STOPED, 1 – STARTING, 2 – LOADED, 3 – UNLOADED, 4 – AUTO DUAL SHUTDOWN, 5 – SHUTDOWN (Fault Caused), 6 – PROGRAMMED SHUTDOWN |
|
| Start addr + 1 |
|
refer to user manual |
differ according to Software version |
| Start addr + 2 | Compressor Mode | 0 – CONTINUOUS RUN, 1 – AUTO DUAL, 2 – NETWORK, |
|
| Start addr + 3 | Load Pressure | PSIG |
|
| Start addr + 4 | Unload Pressure | ||
| Start addr + 5 | DisCharge Pressure | ||
| Start addr + 6 | Sump Pressure | ||
| Start addr + 7 | DisCharge Temp | DEG.F |
|
| Start addr + 8 | Sump Temp | ||
| Start addr + 9 | Oil Filter Delta-P Switch | 0 – BAD May Be Bad Switch, 1 – GOOD, 2 – REPLACE FILTER |
|
| Start addr + 10 | Intake Filter Delta-P Switch | ||
| Start addr + 11 |
|
0 – Pointer passed left, Inlet closed, Lift Values 1,2,3,4 open, 1 – Pointer passed left, Inlet open, Lift Values 1,2,3,4 open, 2 – Pointer passing left, Inlet open, Lift Values 1,2,3,4 open, 3 – Pointer at Machine, inlet open, Lift Values 1,2,3,4 open, 4 – Pointer at Machine, inlet open, Lift Values 1,2,3 open, 5 – Pointer at Machine, inlet open, Lift Values 1,2 open, 6 – Pointer at Machine, inlet open, Lift Values 1 open, 7 – Pointer at Machine, inlet open, Lift Values none open, 8 – Pointer passing right, inlet open, Lift Values none open, 9 – Pointer passed right, inlet open, Lift Values none open |
only when Compressor Mode = 2 |
| Start addr + 12 | Motor Overload | 0 – TRIPED, 1 – GOOD |
|
| Start addr + 13 | Main Motor Auxiliary Contacts | 0 – OPEN, 1 – CLOSED |
|
| Start addr + 14~ 17 | Air Filter Seconds MSB ~ Air Filter Seconds LSB |
|
|
| Start addr + 18~ 21 | Lube Filter Seconds MSB ~ Lube Filter Seconds LSB |
|
|
| Start addr + 22~ 25 | Separator Filter Seconds MSB ~ Separator Filter Seconds LSB |
|
|
| Start addr + 26~ 29 | Loaded Filter Seconds MSB ~ Loaded Filter Seconds LSB |
|
|
| Start addr + 30~ 33 | Unloaded Filter Seconds MSB ~ Unloaded Filter Seconds LSB |
|
|
| Start addr + 34 | Compressor Model | 0 – QSI 245, 1 – QSI 370, 2 – QSI 500, 3 – QSI 750, 4 – QSI 1000, 5 – QSI 1250, 6 – QSI 1500, 7 – QSI SPECIAL ¡¦ 8 ~ 18 : other model ( refer to user manual ) |
|
| Start addr + 35 | Compressor Capacity | 0 – 245 CFM, 1 – 370 CFM, 2 – 500 CFM, 3 – 750 CFM, 4 – 1000 CFM, 5 – 1250 CFM, 6 – 1500 CFM, 7 – SPECIAL CFM¡¦ 8 ~ 18 : other model ( refer to user manual ) |
|
| Start addr + 36 | Started Type | 0 – Across-the-line Started, 1 – Wye Delta Started, 2 – Solid State Started, 3 - Remote |
|
| Start addr + 37 | Compressor Horse Power | 0 – 7.5 H.P, 1 – 10 H.P, 2 – 15 H.P, 3 – 20 H.P, 4 – 25 H.P, 5 – 30 H.P, 6 – 40 H.P, 7 – 50 H.P, 8 – 60 H.P, 9 – 75 H.P, 10 – 100 H.P, 11 – 125 H.P, 12 – 150 H.P, 13 – 200 H.P, 14 – 250 H.P, 15 – 300 H.P, 16 – 350 H.P |
|
| Start addr + 38 | Machne Type | 0 – None – Lift Value Machine, 1 – Lift Value Machine |
|
| Start addr + 39 | Auto-Dual Timer |
|
|
| Start addr + 40 | Machine ID |
|
|
| Start addr + 41 | Rotation Time |
|
|
| Start addr + 42 | Bypassing Enabled | 0 – FALSE, 1 – TRUE |
|
| Start addr + 43 | Modulation Enabled | 0 – FALSE, 1 – TRUE |
|
| Start addr + 44 | Remaining Time |
|
|
| Start addr + 45 ~ 60 | Serail Number 1 ~ 16 |
|
|
| Start addr + 61~ 64 | Lube Seconds MSB ~ Lube Seconds LSB |
|
|
| Start addr + 65 | Sequence Position |
|
|
| Start addr + 66 ~ 67 | Total Minutes MSB ~ Total Minutes LSB |
|
|
| Start addr + 68 | Network Mode | 0 – NO COMMUNICATIONS, 1 – BAD, 2 – BAD to POOR, 3 – POOR, 4 – ACCEPTABLE, 5 - GOOD |
|
| Start addr + 69 | Active | 0 – NOT RUNNING IN NETWORK MODE, 1 – RUNNING AND IN NETWORK MODE |
only when Compressor Mode = 2 |
| Start addr + 70 |
|
0 – NOT RUNNING, 1 – RUNNING |
|
| Start addr + 71 | Number Bypass Val | 0 ~ 4 |
|
| Start addr + 72 ~ 73 | Software Version Number | MAJOR VERSION ~ MINOR VERSION |
|
| <Table 1> Data saving address and contents of PowerSync Compressor communication driver ( WORD memory ) | |||
| Data saving address | Contents | Range |
| Start addr + 0 | Air Filter Seconds | DWORD |
| Start addr + 1 | Lube Filter Seconds | |
| Start addr + 2 | Separator Filter Seconds | |
| Start addr + 3 | Loaded Filter Seconds | |
| Start addr + 4 | Unloaded Filter Seconds | |
| Start addr + 5 | Lube Seconds | |
| Start addr + 6 | Total Minutes | WORD |
| <Table 2> Data saving address and contents of PowerSync Compressor communication driver ( DWORD memory ) | ||
PowerSync communicatin driver don't support 'write settings'.
