P-300AD Temperature Controller Communication Driver is the driver to communicate with P-300AD of Digital Korea CO., LTD. in Korea.
<Figure 1> is read setting example of P-300AD Temperature Controller communication driver .
|
|

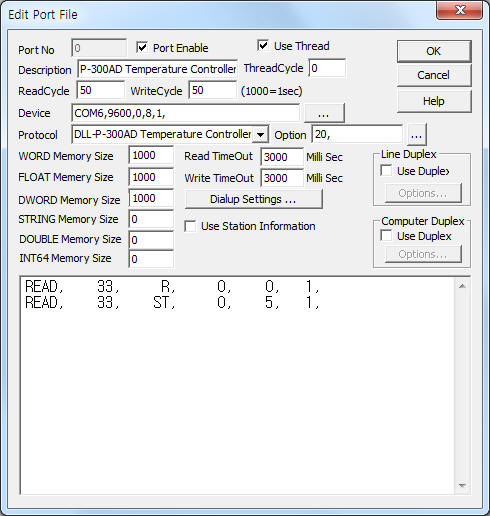

| <Figure 1> Read setting example of P-300AD Temperature Controller communication driver |
Device Setting of <Figure 1> are input, Com Port(COM6), Com Speed(9600), Parity Bit(0), Data Bit(8), Stop Bit(1).
Also 'Write After Delay Time'(0 ~ 1000mSec, default = 20mSec) is set by using option part.
P-300AD Temperature Controller communication driver read schedule
Read schedule setting parameters are as follows:
1) STATION – Equipment Address = 33 ~ 63.
2) Read Command – Command = R, ST, FAULT, FAN, ANALOG, PEAK, BUZZ. (Refer to <Table 1>)
3) Read Start Address – don't care.
4) Save Start Address for Communication Server – saveing start address of Communication Server.
5) Read Size – read size = 1.
Read schedule example)
READ, 33, R, 0, 0, 1,
READ, 33, ST, 0, 5, 1,
<Table 1> is a description of read commands type and stored values of P-300AD Temperature Controller communication driver.
<Table 2> and <Table 3> are meaning of Error/Fan status for each bit.
| Read Command | Content | Data saving address | Remarks |
R |
Read of R Phase Temperature, Error/Fan Status |
Start Add + 0 : R Phase Temperature(Float), Start Add + 1 : Error Status(Refer to <Table 2>), Start Add + 2 : Fan Status(Refer to <Table 3>) |
R Phase Temp = xxx.xx |
| ST | Read of S/T Phase Temperature | Start Add + 0 : S Phase Temperature(Float), Start Add + 1 : T Phase Temperature(Float) |
xxx.xx |
| FAULT | Read of Warning/Fault Parameter | Start Add + 0 : Warning Temperature(Float), Start Add + 1 : Fault Value(Float) |
xxx.xx |
| FAN | Read of Fan On/Off Parameter | Start Add + 0 : Fan On Value(Float), Start Add + 1 : Fan Off Value(Float) |
xxx.xx |
| ANALOG | Read of Analog Output Range | Start Add + 0 : Analog Output High
Value, Start Add + 1 : Analog Output Low Value |
0 ~ 255 |
| PEAK | Read of Peak High/Low | Start Add + 0 : Peak High
Value(Float), Start Add + 1 : Peak Low Value(Float) |
xxx.xx |
| BUZZ | Read of Buzz Status | Start Add + 0 : Buzz Status | 1 = True, 0 = False |
| <Table 1> Read commands type and stored values of P-300AD Temperature Controller communication driver | |||
| Bit | Content | Remarks |
| 0 ~ 2 bit | R/S/T Position | 1 = high, 0 = low |
| 3 bit | Reserved | |
| 4 ~ 5 bit | Fault/Warning Status | 1 = high, 0 = low |
| 6 bit | Sensor Breaking | 1 = high, 0 = low |
| 7 bit | Sensor Short | 1 = high, 0 = low |
| <Table 2> The meaning of Error status for each bits | ||
| Bit | Content | Remarks |
| 0 ~ 5 bit | Reserved | |
| 6 bit | Fan ON | |
| 7 bit | Auto/Manual | |
| <Table 3> The meaning of Fan status for each bits | ||
P-300AD Temperature Controller communication driver store the same data in WORD, DWORD, FLOAT memory, but the data format are different.
If you click the icon
in
protocol option part, you can see the dialogue box such as <Figure 2>. you can
also set read schedule by using this part.
 |

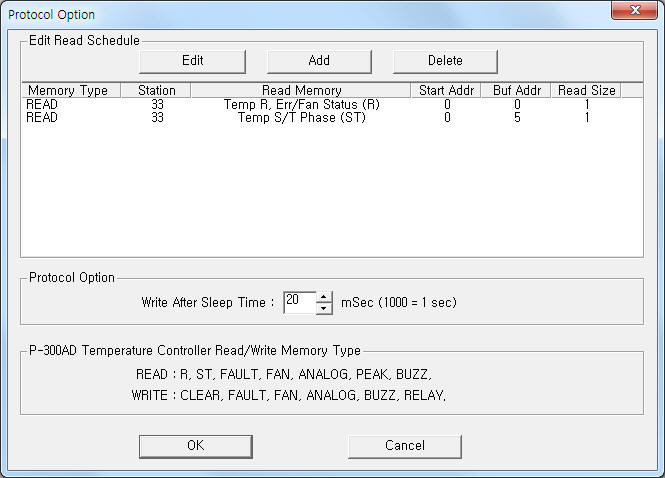

| <Figure 2> Example of P-300AD Temperature Controller Communication Driver’s Option dialogue box |
You can set read schedule by using
,
,
button and listbox of <Figure 2>.
 |

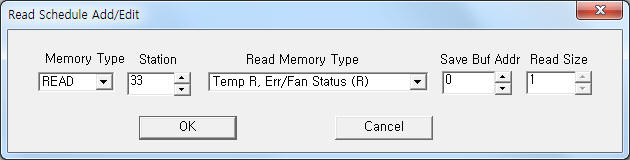

| <Figure 3> Example of P-300AD Temperature Controller communication driver’s read schedule Add/Edit dialogue box |
When you click Add button or Edit button in dialogue box of <Figure 2>, dialogue box of <Figure 3> is shown.
You can control the Fault, Fan, Analog, etc values of P-300AD Temperature Controller by using write commands.
Digital write
Digital write and analog write have the same setting parameters except output value.
Analog Write
Analog write setting parameters are as follows:
1) PORT : Port no. (0 ~ 255)
2) STATION : Equipment Address = 33 ~ 63.
3) ADDRESS : CLEAR, FAULT, FAN, ANALOG, RELAY write command : output content. (Refer to <Table 4>)
Other write command : don't care.
4) EXTRA 1 : Write Command = CLEAR, FAULT, FAN, ANALOG, BUZZ, RELAY.
5) EXTRA 2 : RELAY write command : setting of Fault On(1)/Off(0).
Other write command : don't care.
Write example 1)
PORT:0, station:33, ADDRESS:0000, Extra1:FAULT, Extra : 0
The setting parameter shown above is an example of word write for 'Warning value' setting of P-300AD temperature Controller connected with 0 port, set to 33 Equipment Address.
Write example 2)
PORT:0, station:33, ADDRESS:0001, Extra1:FAULT, Extra : 0
The setting parameter shown above is an example of word write for 'Fault value' setting of P-300AD temperature Controller connected with 0 port, set to 33 Equipment Address.
Write example 3)
PORT:0, station:33, ADDRESS:0001, Extra1:FAN, Extra : 0
The setting parameter shown above is an example of word write for 'Fan Off value' setting of P-300AD temperature Controller connected with 0 port, set to 33 Equipment Address.
<Table 4> is a description of write commands and range of the write value for P-300AD Temperature Controller communication driver.
| Write Command | Content | Address | Range of write value |
| CLEAR | Memory clear write command | 0 : Warning Memory Clear 1 : Fault Memory Clear 2 : Peak High Memory Clear 3 : Peak Low Memory Clear |
1 = True, 0 = False |
| FAULT | Setting of Warning/Fault value | 0 : Warning value write 1 : Fault value write |
xxx.xx (0.00 ~ 655.35) |
| FAN | Setting of Fan On/Off value | 0 : Fan On write 1 : Fan Off write |
xxx.xx (0.00 ~ 655.35) |
| ANALOG | Setting of Analog Output High/Low value | 0 : Analog Output High 1 : Analog Output Low |
0 ~ 255 |
| BUZZ | Write of Buzz On/Off | Don't care | 1 = True, 0 = False |
| RELAY | Relay control | 0 : Warning Off 1 : Warinig On |
1 = Fan Relay On, 0 = Fan Relay Off (Extra2 = Fault On/Off) |
| <Table 4> Write commands and range of the write value for P-300AD Temperature Controller communication drive | |||
Block Write
P-300AD Temperature Controller communication driver don’t support ‘Block write’.
You have to connect serial communication cable in the following ways.
Connection of RS-485 communication cable
You must connect RS-485 communication cable to terminal '6(+)', '7(-)' of P-300AD Temperature Controller and PC Respectively.
<Figure 4> shows the appearance of P-300AD Temperature Controller.
<Figure 5> is example of RS-485 communication cable connection to P-300AD Temperature Controller.
 |

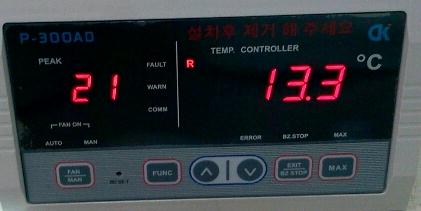

| <Figure 4> Appearance of P-300AD Temperature Controller |
 |

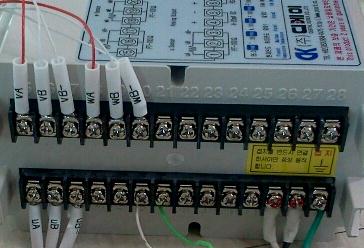

| <Figure 5> Example of RS-485 communication cable connection to P-300AD Temperature Controller |
