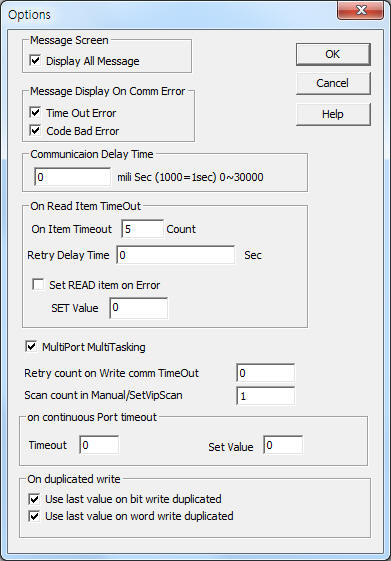

When you select 'Config | Options', the dialog box is shown such as <Figure 1>.
You can set communication options at Options dialog.
|
|
| <Figure 1> Example of Options dialog |
Setting parameters of Options dialog are as follows :
Message Screen = weather to use the 'message screen' when the error occurs.
Message Display On Comm Error = whether to use 'message display' when the error occurs.
Time Out Error : whether to use 'message display' when the Time Out Error.
Code Bad Error : whether to use 'message display' when the Code Bad Error.
Communication Delay Time = read/write communication delay for all port. normally set to 0. ( milli second unit, 0 ~ 30000 )
On Read Item TimoOut = read TimeOut setting.
On Item Timeout : number of continuously Timeout for read delay.
Retry Delay Time : delay type when continuously Timeout. ( second unit )
Set READ item on Error : whether to use 'set Read item data' to SET value when continuously Timeout.
SET Value : setting value for the read item when continuously Timeout.
MultiPort MultiTasking = weather to use multi tasking for multi port.
Retry count on Write comm TimeOut = write retry count when TimeOut error at write.
Scan count in Manual/SetVipScan = scan count for manual SetVipScan for immediately response.
you should to set greater than 1 for immediately response.
On continuous Port timeout = whether to set value when continuously Timeout for each port all memory.
Timeout : continuously Timeout count. ( 0 = don't use )
SET Value : setting value for all memory when continuously Timeout.
On duplicated write = method of duplicated write value.
Use last value on bit wirte duplicated : whether to use last value when equal bit write value( all parameter ) command.
Use last value on word wirte duplicated : whether to use last value when equal analog( word ) write value( all parameter ) command.
