Port Status menu use for monitoring each port communication stauts.
When you select 'View | Port Status', the dialog box is shown such as <Figure 1>.
|
|

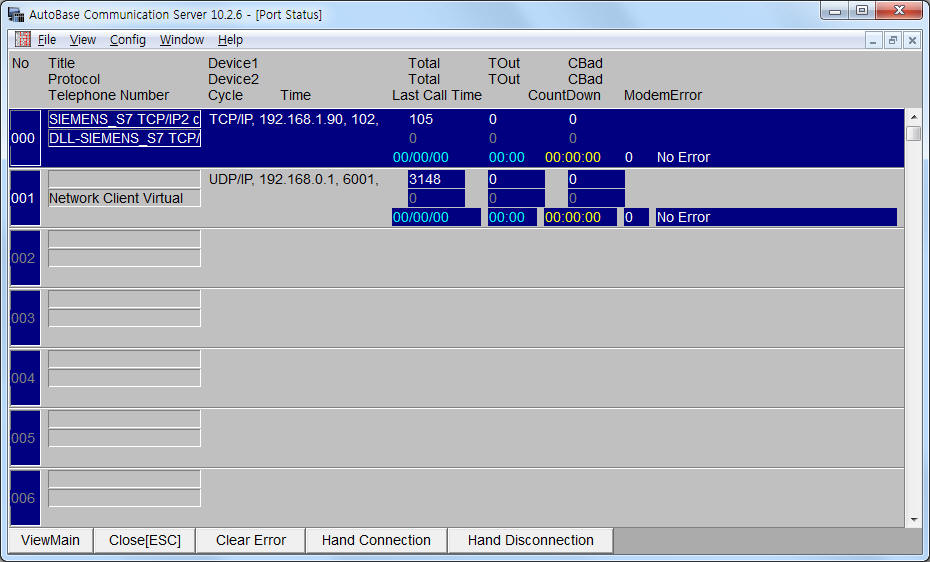

| <Figure 1> Example of Port Status window |
Parameters of Port Status window are as follows :
No : port number of Communication Server.
Title : description of port setting.
Protocol : name of communication driver.
Telephone Number : telephone number when set to TeleDevice.
Device1 : primary( default ) setting device information.
Device2 : secondary device information.
Cycle : connection cycle ( perild ) when set to TeleDevice.
Time : connection time when set to TeleDevice.
upper Total, TOut, CBad : total, timeout, code bad number of communication for primary( default ) device.
lower Total, TOut, CBad : total, timeout, code bad number of communication for secondary device.
Last Call Time : last connection time when set to Modem device.
CountDown : remain time to connection when set to Modem device.
ModemError : modem error status when set to Modem device.
ViewMain 'button' : return to SCADA Server program.
Close 'button' : close Port Status menu.
Clear Error, Hand( Manual ) Connection, Hand( Manual ) Disconnection : memu for error clear, modem connection/disconnection when set to Modem device.
