Network Memory Server menu use for Network Server/Client setting.
When you select 'View | Network Memory Server', the dialog box is shown such as <Figure 1>.
|
|

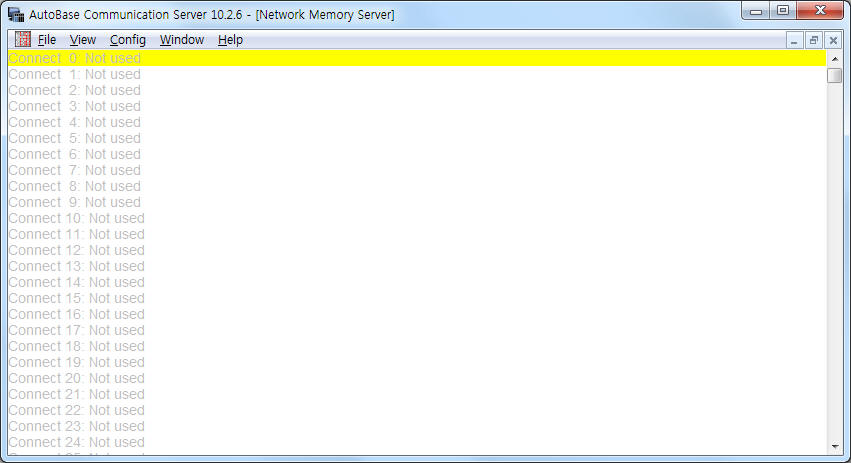

| <Figure 1> Example of Network Memory Server window |
Network Client system read Server's communication data by using Serial or Ethernet.
Setting of Network Memory Server system are as follows. ( when use Port 0, Port 1 and data send to Client )
1) Please select 'Connect 0' and 'Connect 1' ( or other( 0 ~ 255) connection ) number at <Figure 1>.
2) Then, will be displayed the dialog box such as <Figure 2>.
3) Please select Connection Type, Use thread, Serial Port, Modem Inital Command, Send Delay, TCP/IP UDP/IP Port, Send only changed data, Item counts for one time at <Figure 2>.
3) Then, Network Server system setting is completed such as <Figure 3>.
 |

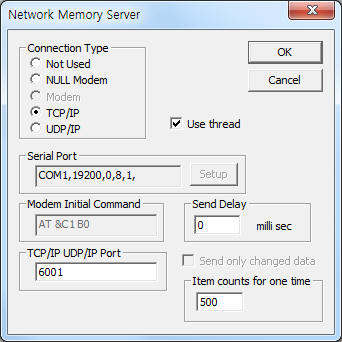

| <Figure 2> Example of Network Memory Server dialog |
 |

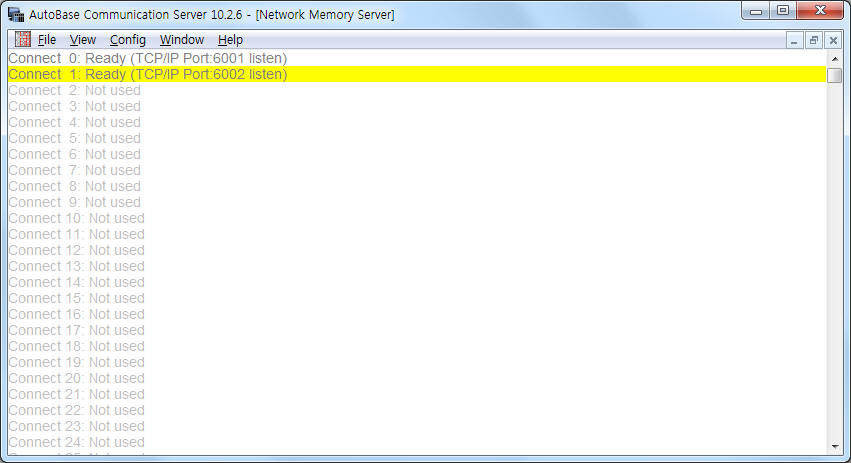

| <Figure 3> Example of completed Network Memory Server |
Setting of <Figure 3> are as follows :
IP address of Server system : 192.168.1.46
Connect 0 : Connection Type = TCP/IP, Port number = 6001,
Connect 1 : Connection Type = TCP/IP, Port number = 6002.
Setting of Network Memory Client system are as follows. ( when use Port 0, Port 1 and receive data from Server )
1) Please open 'Edit Port File' of Communication Server program such as <Figure 4>.
2) Select 000, 001 ( or other, when use 2 Port ) for setting Network Memory Client.
 |

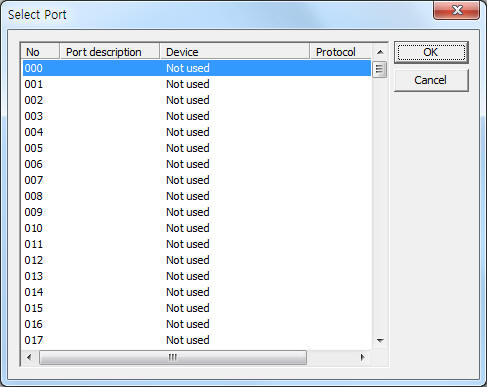

| <Figure 4> Example of Select Port dialog |
3) When you select '000', then will be displayed 'Edit Port File' dialog such as <Figure 5>. ( setting for Port 0 )
4) Also, set '001' device such as number '3)' item.
 |

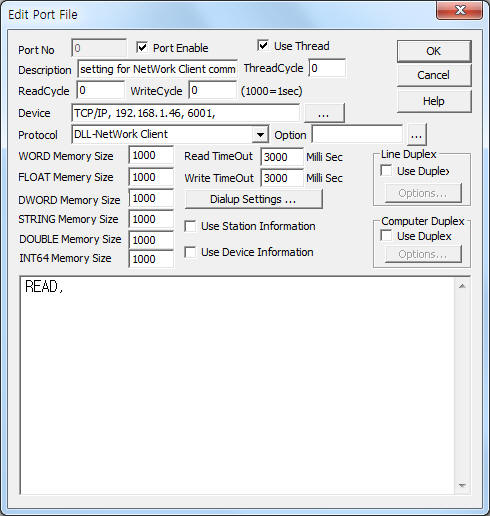

| <Figure 5> Setting example of Edit Port File Port dialog |
Setting of Edit Port File for Port 0
Device Type : TCP/IP,
IP address of Server system : 192.168.1.46,
TCP/IP service port of Connect 0 : 6001,
Option : 0, ( for Port 0, when Port 3 = 3... )
Read Schedule : READ,
Setting of Edit Port File for Port 1
Device Type : TCP/IP,
IP address of Server system : 192.168.1.46,
TCP/IP service port of Connect 0 : 6002,
Option : 1, ( for Port 1, when Port 3 = 3... )
Read Schedule : READ,
