PCL813 communication driver

PCL813 communication driver is the driver to communicate with input/output card of Advantech Co., Ltd. in Taiwan.

Note) PCL813 card must install at computer by ISA or PCI card type.

PCL813 card have 32 channel analog input.

1. Read settings

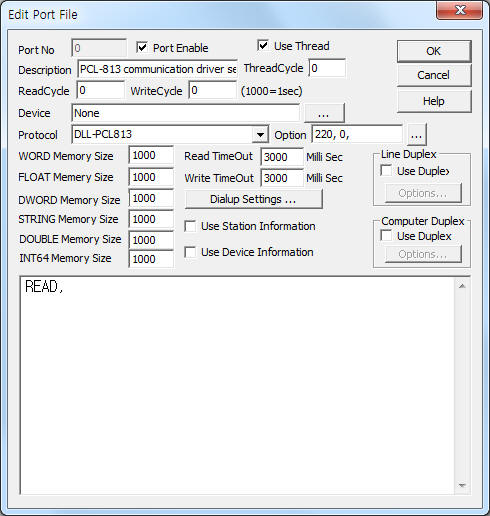

<Figure 1> is read setting example of PCL813 communication driver.

<Figure 1>  Read setting example of PCL813 communication driver

Device part of  <Figure 1> input 'None'.

In protocol option, you can set 'I/O memory address of PCL813 card'( 200 ~ 2F0 : can set by DIP switch ), Gain value( default = 0 ). Each argument  is a comma-delimited.

input example) 220, 0

PCL813 communication driver’s read schedule

Read schedule of PCL813 communication driver input 'READ' one line.

Readed data of PCL813 communication driver save at 0 ~ 7 WORD memory such as follows :

 0 ~ 31  : analog input 32 channel data (12 bit size : 0 ~ 4095).

2. Writing settings

PCL813 communication driver don't support 'write settings'.
