Master-K Ethernet communication driver is the driver to communicate with GLOFA GK PLC(with ethernet communication) of LSIS Co., Ltd. in Korea.

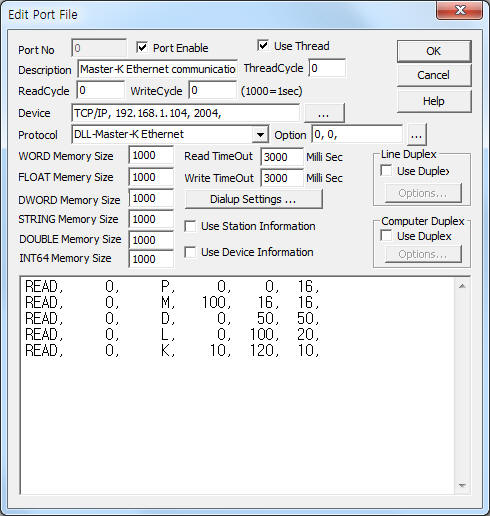

<Figure 1> is read setting example of MASTER-K Ethernet communication driver.
|
|
| <Figure 1> Read setting example of MASTER-K Ethernet communication driver |
Device part of <Figure 1> input Device type(TCP/IP or UDP/IP), IP address of PLC(192.168.1.104), service port of TCP/IP(UDP/IP) protocol (fixed to 2004 for TCP, UDP = 2005 ),respectively, according to setting of PLC.
Also you can input enable of 'Error when PLC is slave' (0 : don't care, 1 : Error, default = 1), use of 'header data size error'(0 : don't use, 1 : use, default = 0), by using option part.
Note) Connectoin number of TCP/IP protocol and IP address of PLC, connection waiting time can set by using by using 'Frame Editor' of LSIS.
When the PLC status is 'slave' and lots of timeout occur, you set to 'Error when PLC is salve' mode = 0 (disable).
But when you using 'Line Duplex', you can set 'Error when PLC is salve' = 1( enable ). So you can transfer to 'Master' PLC'.
MASTER-K Ethernet communication driver read schedule
Read schedule setting parameters are as follows:
1) Station – don't care. ( Fixed to 0 )
2) Read memory type – memory type of PLC. ( refer to <Table 1> )
PW, MW, LW, KW, FW, TW, CW, DW, SW : WORD unit reading,
PD, MD, LD, KD, FD, TD, CD, DD, SD : DWORD unit reading,
PF, MF, LF, KF, FF, TF, CF, DF, SF : FLOAT low/high unit reading,
PF2, MF2, LF2, KF2, FF2, TF2, CF2, DF2, SF2 : FLOAT high/low unit reading.
3) Read start address – reading start address(word or double word unit) in PLC memory. ( WORD unit reading = word unit address, DWORD, FLOAT = double word unit address )
4) Save start address for Communication Server – Saving start address of Communication Server.
5) Read Size – word, double unit read size. maximum 509 word, 254 double word. ( WORD unit reading = word unit size, DWORD, FLOAT = double word unit size )
Read schedule example)
READ, 0, P, 0, 0, 16,
READ, 0, M, 100, 16, 16,
READ, 0, D, 0, 50, 50,
READ, 0, L, 0, 100, 20,
READ, 0, K, 10, 120, 10,
<Table 1> is memory type and contents of MASTER-K Ethernet communication driver.
Memory type |
Contents |
PW, PD, PF, PF2 |
word, double word, FLOAT low/high, FLOAT high/low unit of P PLC memory |
MW, MD, MF, MF2 |
word, double word, FLOAT low/high, FLOAT high/low unit of M PLC memory |
LW, LD, LF, LF2 |
word, double word, FLOAT low/high, FLOAT high/low unit of L PLC memory |
KW, KD, KF, KF2 |
word, double word, FLOAT low/high, FLOAT high/low unit of S PLC memory |
FW, FD, FF, FF2 |
word, double word, FLOAT low/high, FLOAT high/low unit of F PLC memory |
TW, TD, TF, TF2 |
word, double word, FLOAT low/high, FLOAT high/low unit of T PLC memory |
CW, CD, CF, CF2 |
word, double word, FLOAT low/high, FLOAT high/low unit of C PLC memory |
DW, DD, DF, DF2 |
word, double word, FLOAT low/high, FLOAT high/low unit of D PLC memory |
SW, SD, SF, SF2 |
word, double word, FLOAT low/high, FLOAT high/low unit of S PLC memory |
| <Table 1> Memory type and contents of MASTER-K Ethernet communication driver | |
If you click the icon
in protocol option part, you
can see the dialogue box such as <Figure 2>. you can also set read schedule by
using this part.
 |

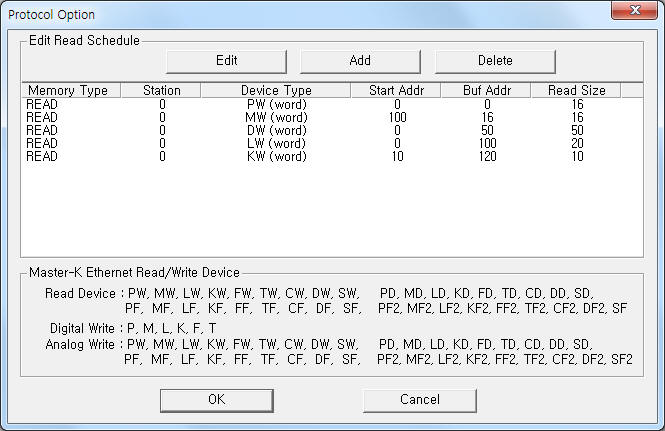

| <Figure 2> Example of Master-K Ethernet communication driver’s Option dialogue box |
You can set read schedule by using
,
,
button and listbox
of <Figure 2>.
 |

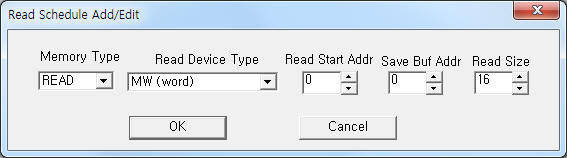

| <Figure 3> Example of Master-K Ethernet communication driver’s read schedule Add/Edit dialogue box |
When you click Add button or Edit button in dialogue box of <Figure 2>, dialogue box of <Figure 3> is shown.
You can set MASTER-K PLC by using write settings.
Digital Write
Digital write setting parameters are as follows:
1) PORT Port no. (0 ~ 255)
2) STATION don't care. ( Fixed to 0 )
3) ADDRESS write address in memory.
upper 3 digit = decimal unit Word address, lower 1 digit = 0 ~ F bit position.
4) Extra1 write memory type = P, M, L, K, F, T.
5) Extra2 don't care.
Write example 1)
PORT : 0 Station : 0, ADDRESS : 0011, EXTRA1 : M, EXTRA2 : 0
The setting parameter shown above is a control(On/Off) example for 1 word, 1(2nd) bit of M memory type.
Write example 2)
PORT : 0 Station : 0, ADDRESS : 0152, EXTRA1 : P, EXTRA2 : 0
The setting parameter shown above is a control(On/Off) example for 15 word, 2(3rd) bit of P memory type.
Analog Write
Analog write setting parameters are as follows:
1) PORT Port no. (0 ~ 255)
2) STATION don't care. ( Fixed to 0 )
3) ADDRESS decimal unit write address in memory.
4) Extra1 write memory type.
PW, MW, LW, KW, FW, TW, CW, DW, SW : WORD unit writing,
PD, MD, LD, KD, FD, TD, CD, DD, SD : DWORD unit writing,
PF, MF, LF, KF, FF, TF, CF, DF, SF : FLOAT low/high unit writing,
PF2, MF2, LF2, KF2, FF2, TF2, CF2, DF2, SF2 : FLOAT high/low unit writing.
5) Extra2 don't care.
Write example 1)
PORT : 0 Station : 0, ADDRESS : 0012, EXTRA1 : PW, EXTRA2 : 0
The setting parameter shown above is word unit write setting example for 12(13th) word of P memory type.
Write example 2)
PORT : 0 Station : 0, ADDRESS : 0025, EXTRA1 : MW, EXTRA2 : 0
The setting parameter shown above is word unit write setting example for 25(26th) word of M memory type.
Write example 3)
PORT : 0 Station : 0, ADDRESS : 0020, EXTRA1 : MD, EXTRA2 : 0
The setting parameter shown above is double word unit write setting example for 20(21th) double word of M memory type.
Write example 4)
PORT : 0 Station : 0, ADDRESS : 0132, EXTRA1 : DW, EXTRA2 : 0
The setting parameter shown above is word unit write setting example for 132(133th) word of D memory type.
Write example 5)
PORT : 0 Station : 0, ADDRESS : 0085, EXTRA1 : DD, EXTRA2 : 0
The setting parameter shown above is double word unit write setting example for 85(86th) double word of D memory type.
Write example 6)
PORT : 0 Station : 0, ADDRESS : 0012, EXTRA1 : DF, EXTRA2 : 0
The setting parameter shown above is low/high order float unit write setting example for 12(13th) double word(2 byte, float) of D memory type.
Write example 7)
PORT : 0 Station : 0, ADDRESS : 0005, EXTRA1 : MF2, EXTRA2 : 0
The setting parameter shown above is high/low order float unit write setting example for 5(6th) double word(2 byte, float) of M memory type.
Connection of communication cable and main power are as follows.
Connection of communication cable

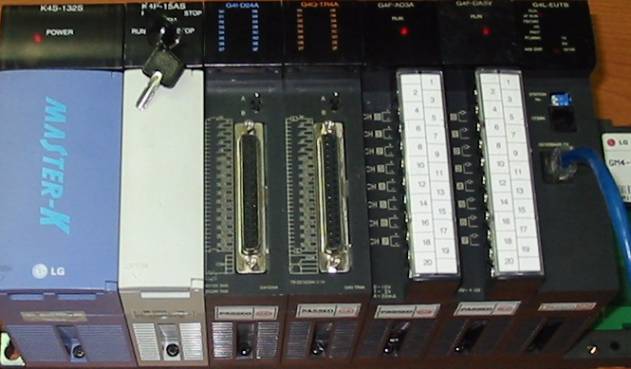

Please connect RJ-45 10 Base T Ethernet communication cable to RJ-45 socket of PLC such as <Figure 4>.
 |
| <Figure 4> Connection example of communication cable and main power to MASTER-K(GLOFA-GK) PLC |
Connection of main power
Please connect 220V AC 50 ~ 60HZ power to main power connector of PLC.
