MIRAE MR8000 Series communication driver is the driver to communicate with indicator controller of Mirae E&I in Korea.

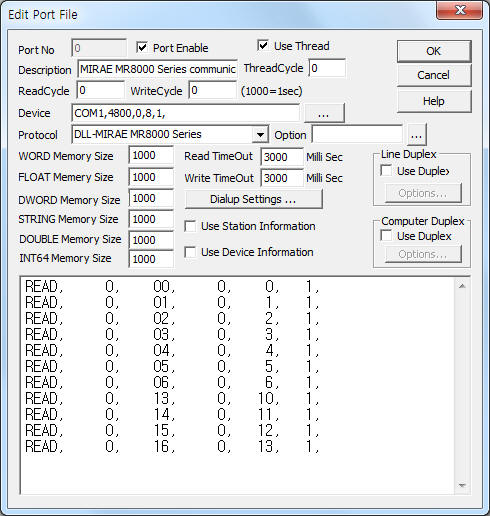

<Figure 1> is read setting example of MIRAE MR8000 Series communication driver.
|
|
| <Figure 1> Read setting example of MIRAE MR8000 Series communication driver |
Device part of <Figure 1> input Com Port(COM1), Baud Rate(4800), Parity Bit(0), Data Bit(8), Stop Bit(1) respectively, according to setting of controller.
Note) Station, baud rate of MIRAE MR8000 Series can set by using front panel's setting button. ( refer to chapter 4 )
MIRAE MR8000 Series communication driver read schedule
Read schedule setting parameters are as follows:
1) Station – 0 ~ 63 station number.
2) Read command – command = 00 ~ 07, 11 ~ 1G. ( refer to <Table 1> )
3) Read start address – don't care.
4) Save start address for Communication Server – Saving start address of Communication Server.
5) Read Size – fixed to 1.
Read schedule example)
READ, 0, 00, 0, 0, 1,
READ, 0, 01, 0, 1, 1,
READ, 0, 02, 0, 2, 1,
READ, 0, 03, 0, 3, 1,
READ, 0, 04, 0, 4, 1,
READ, 0, 05, 0, 5, 1,
READ, 0, 06, 0, 6, 1,
READ, 0, 13, 0, 10, 1,
READ, 0, 14, 0, 11, 1,
READ, 0, 15, 0, 12, 1,
READ, 0, 16, 0, 13, 1,
<Table 1> is read command and contents of MIRAE MR8000 Series communication driver.
| Read command | Contents | Rnage |
| 00 | read of PV value | +/- ddd.d ( d = decimal ) |
| 01 ~ 04 | read of Alarm 1 ~ 4 value | |
| 05 | read of Peak value | |
| 06 | read of Alarm value | 0 ~ F ( 0 ~ 15 ) 0 ~ 3 bit : Alarm 1 ~ 4 ON |
| 07 | read of AO value | +/- 00.00 ~ 99.99 |
| 11 | read of Input Type | refer to <Table 2> |
| 12 | read of Function | 0 : Linear, 1 : S-Root, 2 : Limit, 3 : Vac |
| 13 | read of Range Low | +/- ddd.d ( d = decimal ) |
| 14 | read of Range High | |
| 15 | read of Scale Low | |
| 16 | read of Scale High | |
| 17 | read of Sensor Adj | |
| 18 | read of Peak Type | 0 : High Peak, 1 : Low Peak, 2 : High Peak + Display + AO, 3 : Low Peak + Display + AO |
| 19 | read of Display Type | 0 ~ 9 |
| 1A | read of SP-1 Type | 0 : High Alarm, 1 : Low Alarm |
| 1B | read of SP-2 Type |
|
| 1C | read of SP-3 Type |
|
| 1D | read of SP-4 Type |
|
| 1E | read of Alarm DeadBand | dd ( d = decimal ) |
| 1F | read of OutScale High | +/- ddd.d ( d = decimal ) |
| 1G | read of OutScale Low | |
| <Table 1> Read command and contents of MIRAE MR8000 Series communication driver | ||
Readed ( writing ) value |
Meaning |
0 |
TC-R |
1 |
TC-K |
2 |
TC-E |
3 |
TC-J |
4 |
TC-T |
5 |
PT-100 |
6 |
JPT-100 |
7 |
mV |
8 |
Volt |
9 |
mA |
| <Table 2> Readed value and meaning of Input Type | |
MIRAE MR8000 Series communication driver store the same data in WORD, DWORD, FLOAT, memory, but the data format are different.
If you click the icon
in protocol option part at
<Figure 1>, you

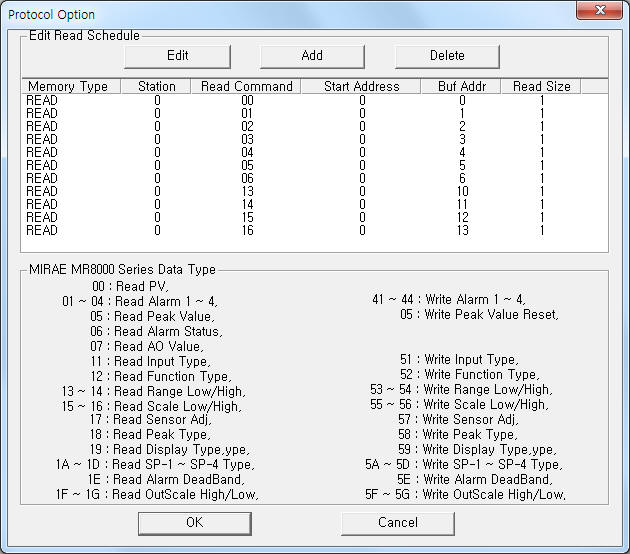

can see the dialogue box such as <Figure 2>. you can also set read schedule by
using this part.
 |
| <Figure 2> Example of MIRAE MR8000 Series communication driver’s Option dialog box |
You can set read schedule by using
,
,
button and listbox of <Figure
2>.
 |

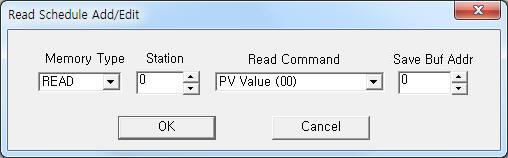

| <Figure 3> Example of MIRAE MR8000 Series communication driver’s read schedule Add/Edit dialog box |
When you click Add button or Edit button in dialogue box of <Figure 2>, dialogue box of <Figure 3> is shown.
You can read and write by using 'write settings'.
Digital Write
Digital write and analog write have the same setting parameters except output value.
Analog Write
Analog write setting parameters are as follows:
1) PORT Port no. (0 ~ 255)
2) STATION 0 ~ 63 station number.
3) ADDRESS data saving start address when read command. ( refer to <Table 1> )
4) Extra1 read/write command = 00 ~ 07, 11 ~ 1G read command( refer to <Table 1> ), 41 ~ 45, 51 ~ 5G : write command.
5) Extra2 0 ~ 3 decimal point when write command.
Write example 1)
PORT:0, station:0, ADDRESS:0000, Extra1: 41, Extra2 : 0
The setting parameter shown above is Alarm 1 value setting example with 0 decimal point.
Write example 2)
PORT:0, station:0, ADDRESS:0000, Extra1: 42, Extra2 : 1
The setting parameter shown above is Alarm 2 value setting example with 1 decimal point.
Write example 3)
PORT:0, station:0, ADDRESS:0000, Extra1: 51, Extra2 : 0
The setting parameter shown above is Sensor Input Type( 0 ~ 9, refer to <Table 2> ) setting example.
Write example 4)
PORT:0, station:0, ADDRESS:0000, Extra1: 5G, Extra2 : 0
The setting parameter shown above is OutScale Low value setting example with 0 decimal point.
Write example 5)
PORT:0, station:0, ADDRESS:0150, Extra1: 00, Extra2 : 0
The setting parameter shown above is PV value reading example.
After reading, the readed value save at 150 WORD, DWORD, FLOAT memory.
Write example 6)
PORT:0, station:0, ADDRESS:0230, Extra1: 13, Extra2 : 0
The setting parameter shown above is Rnage Low value reading example.
After reading, the readed value save at 230 WORD, DWORD, FLOAT memory.
Connection of main power and communication cable are as follows:
Connection of main power
Please connect 85 ~ 265V AC main power to 12, 14 connector of MIRAE MR8000 controller.
 |

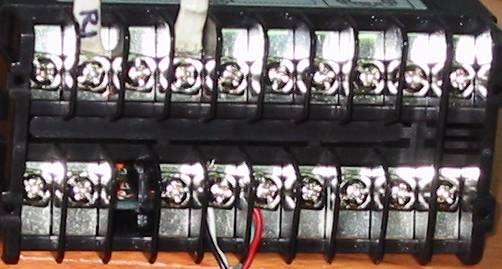

| <Figure 4> Connection example of main power and communication cable to MIRAE MR8000 controller |
Connection of communication cable
Please connect RS-485 communication cable to 5( + ), 6( - ) connector.
RS-485 of computer MIRAE MR8000 Series
Tx+, Rx+ -------------------------------------- 6 + connector
Tx-, Rx- -------------------------------------- 5 - connector

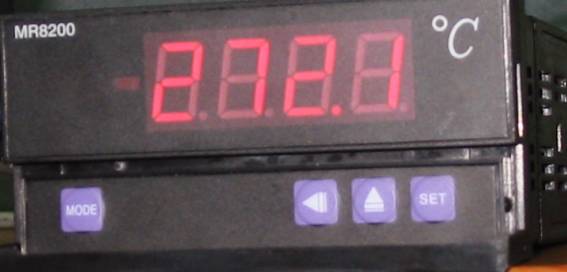

<Figure 5> is appearance of MR8000 controller.
 |
| <Figure 5> Appearance of MR8000 controller |
MIRAE MR8000 controller can set station, baud rate, ... by using setting button of front panel. ( refer to <Figure 5> )
1) Press together 'Left' and 'Up' button about 3 seconds.
2) Press 'Mode' button. Then will be changed 'setting menu'.
3) At 'COMM' mode, please set station, baud rate, ....
