MESL-S Toshiba Light Controller communication driver is the driver to communicate with lighting controller of Toshiba in Japan.

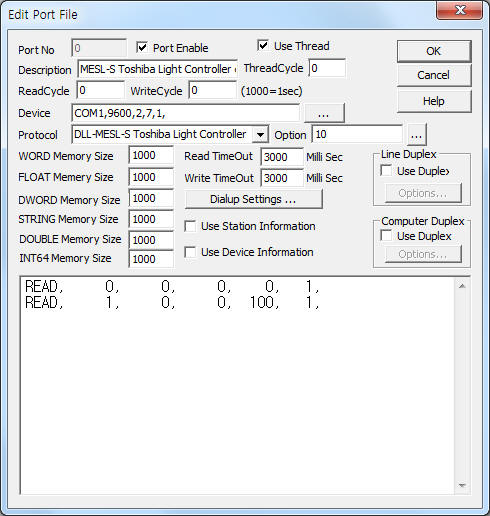

<Figure 1> is read setting example of MESL-S Toshiba Light Controller communication driver.
|
|
| <Figure 1> Read setting example of MESL-S Toshiba Light Controller communication driver |
Device part of <Figure 1> input Com Port(COM1), Baud Rate(9600), Parity Bit(2), Data Bit(7), Stop Bit(1) respectively, according to setting of controller.
Also you can set 'readed data saving method'( 10 : decimal, 16 : hex-decimal, default = 10) by using option part.
MESL-S Toshiba Light Controller communication driver read schedule
Read schedule setting parameters are as follows:
1) Station – 0 ~ 9 station number.
2) Read data type – don't care.
3) Read start address – don't care.
4) Save start address for Communication Server – Saving start address of Communication Server.
5) Read Size – fixed to 1. ( 256 bit )
Read schedule example)
READ, 0, 0, 0, 0, 1,
READ, 1, 0, 0, 100, 1,
MESL-S controller(SA station) have 256 indivisual and group status value.
<Table 1>, <Table 2> are data saving and contents of MESL-S communication driver when input 10/16 at option part.
| Data saving address | Contents | Remarks |
| Start addr + 0001 ~ 0256 | indivisual status memory value | don' use A~F bit of each word |
| Start addr + 0301 ~ 0556 | group status memory value | |
| <Table 1> Data saving and contents of MESL-S communication driver when input 10 at option part | ||
| Data saving address | Contents | Remarks |
| Start addr + 0000 ~ 015F | indivisual status memory value | use A~F bit |
| Start addr + 0160 ~ 031F | group status memory value | |
| <Table 1> Data saving and contents of MESL-S communication driver when input 16 at option part | ||
You can control MESL-S controller by using 'writing settings'.
Digital Write
Digital write setting parameters are as follows:
1) PORT Port no. (0 ~ 255)
2) STATION 0 ~ 9 station number.
3) ADDRESS 0001 ~ 0256 writing address for indivisual, group point control.
4) Extra1 selection of indivisual, group control.
A0 : indivisual point control,
A1 : group point control.
5) Extra2 don't care.
Write example 1)
PORT:0, station:1, ADDRESS:0192, Extra1: A0, Extra2 : 0
The setting parameter shown above is 192 address indivisual point control example of 1 station MESL-S controller.
Analog Write
MESL-S Toshiba Light Controller communication driver don't use 'Analog Write'.
