Modern Tech Display Total communication driver is the driver to communicate with display board Modern Tech in Korea.

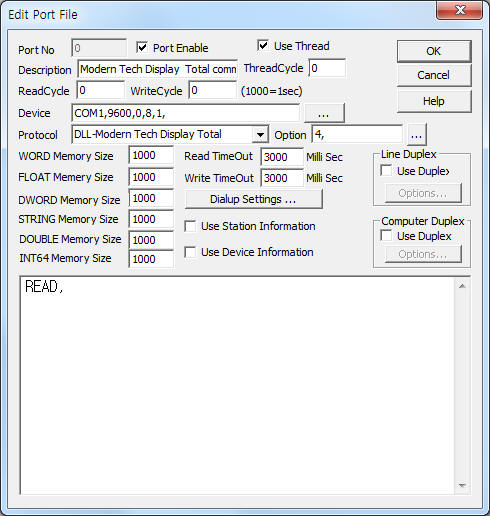

<Figure 1> is read setting example of Modern Tech Display Total communication driver.
|
|
| <Figure 1> Read setting example of Modern Tech Display Total communication driver |
Device part of <Figure 1> input Com Port(COM1), Baud Rate(9600), Parity Bit(0), Data Bit(8), Stop Bit(1) respectively.
Also you can set 'number of display board'( 1 ~ 50, default = 4) by using option part. ( 1 set = rainfall of a hour, maximum of hour, rainfall of today, rainfall of sum )
Modern Tech Display Total communication driver read schedule
Modern Tech Display Total communication driver's read schedule input 'READ' one line( or blank ).
You can write to display board by using 'writing settings'.
Digital Write
Digital write and analog write have the same setting parameters except output value.
Analog Write
Analog write setting parameters are as follows:
1) PORT Port no. (0 ~ 255)
2) STATION option of space.
0 – display to 'space',
other – display to '0'. example) 0000, 000
3) ADDRESS writing data type.
0 – write to display board from saved memory data,
1 – basic month, day, hour, (6 digit output value - higher 2digit : month, middle 2digit : day, lower 2digit : hour)
2 – current month, day, hour, (6 digit output value - higher 2digit : month, middle 2digit : day, lower 2digit : hour)
3 ~ 6 – rainfall of a hour, maximum of hour, rainfall of today, rainfall of sum at the city hall, ( 0 ~ 9999 )
7 ~ 10 – rainfall of a hour, maximum of hour, rainfall of today, rainfall of sum at SuTeck, ( 0 ~ 9999 )
11 ~ 14 – rainfall of a hour, maximum of hour, rainfall of today, rainfall of sum at ToPyung, ( 0 ~ 9999 )
15 ~ 18 – rainfall of a hour, maximum of hour, rainfall of today, rainfall of sum at reserved, ( 0 ~ 9999 )
...
memory address can be set up : 199 ~ 202 ( according to 'number of display board' at Protocol Option part )
4) Extra1 write command.
SET – write at memory corresponding to the 'Address' value, ( don't wirte to display board )
other - write memory and write to display board from all saved data.
5) Extra2 current time setting method.
0 - use current month, day, hour of computer,
other : use setting of current hour, day, month write command( Address = 3 ).
Write example 1)
PORT:0, station:0, ADDRESS:0000, Extra1: , Extra2 : 0
The setting parameter shown above is write to display board example from all saved data at memory.
Write example 2)
PORT:0, station:0, ADDRESS:0001, Extra1: , Extra2 : 0, Output value = 82112
The setting parameter shown above is basic month, day, hour setting example, the setting hour = 12, day = 21, month = 8.
Write example 3)
PORT:0, station:0, ADDRESS:0001, Extra1:SET, Extra2 : 0, Output value = 82112
The setting parameter shown above is basic month, day, hour setting(only at memory value) example, the setting hour = 12, day = 21, month = 8.
Write example 4)
PORT:0, station:0, ADDRESS:0003, Extra1: , Extra2 : 0, Output value = 1234
The setting parameter shown above is rainfall of a hour setting example at the city hall, the setting rainfall value = 1234.
Write example 4)
PORT:0, station:0, ADDRESS:0010, Extra1: , Extra2 : 0, Output value = 32
The setting parameter shown above is rainfall of sum setting example at the SuTeck, the setting rainfall value = 32.
