MCS 200 Series is the driver to communicate with power Infrared temperature sensor(MCS-TP200), detection sensor for Arcing(MCS-AC200), detection sensor for partial discharge(MCS-PD200) controller of Multi Control System in Korea.

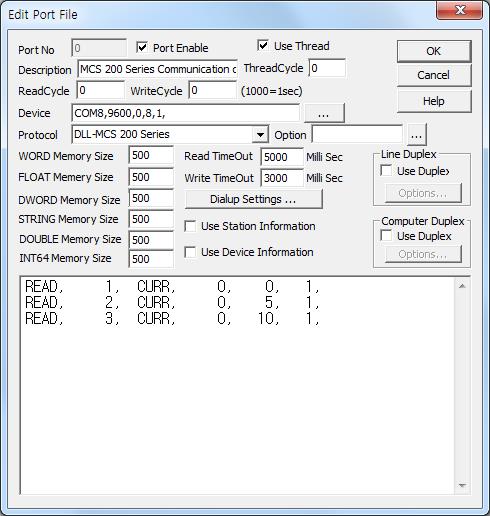

<Figure 1> is read setting example of MCS 200 Series communication driver.
|
|
| <Figure 1> Read setting example of MCS 200 Series communication driver |
Device part of <Figure 1> input Com Port(COM8), Baud Rate(9600), Parity Bit(0), Data Bit(8), Stop Bit(1) respectively, accordint to the setting of controller.
Read schedule of MCS 200 Series communication driver
Read schedule setting parameters are as follows:
1) Station – board ID number of controller, 0 ~ 99.
2) Read command – command : CURR. ( refer to <Table 1>, <Table 2> )
3) Read start address – don't care.
4) Save start address for Communication Server – Saving start address of Communication Server.
5) Read size – fixed to 1.
Read schedule example)
READ, 1, CURR, 0, 0, 1,
READ, 2, CURR, 0, 5, 1,
READ, 3, CURR, 0, 10, 1,
<Table 1> Readed data and saving address for temperature sensor controller.
<Table 2> Readed data and saving address for arc sensor, partial discharging sensor.
Read commnad |
Contents |
Data saving value for Communication Server |
Remarks |
CURR |
read of current status |
Save Start Address + 0 : sensor type number Save Start Address + 1 : setting temperature Save Start Address + 2 : current temperature Save Start Address + 3 : sensor status value |
alway 1 ( temperature sensor ) real value ( 1 dot), refer to FLOAT, DOUBLE memory 0 = normal, 1 = abnormal |
| <Table 1> Readed data and saving address for temperature sensor controller | |||
Read commnad |
Contents |
Data saving value for Communication Server |
Remarks |
CURR |
read of current status |
Save Start Address + 0 : sensor type number Save Start Address + 1 : sensor status value |
2 = arc sensor, 3 = partial discharging sensor 0 = normal, 1 = abnormal |
| <Table 2> Readed data and saving address for arc sensor, partial discharging sensor | |||
MCS 200 Series communication driver store the same data in WORD, DWORD, FLOAT, DOUBLE memory, but the data format are different.
If you click the icon
in protocol option part at
<Figure 1>, you
can see the dialog box such as <Figure 2>. you can also set read schedule by
using this part.
 |
|
<Figure 2> Example of MCS 200 Series communication driver’s Option dialog box |
You can set read schedule by using
,
,
button and listbox of <Figure
2>.
 |
| <Figure 3> Example of MCS 200 Series communication driver’s read schedule Add/Edit dialog box |
When you click Add button or Edit button in dialogue box of <Figure 2>, dialogue box of <Figure 3> is shown.
MCS 200 Series communication driver don't support 'write settings'.
