MASTER-K S Series Loader communication driver is the driver to communicate with loader port(MASTER-K 80S, ¡¦, 200S, 300S, 1000S PLC) of LSIS Co., Ltd. in Korea.
You can use RS-232C cable between MASTER-K S Series Loader port and computer.

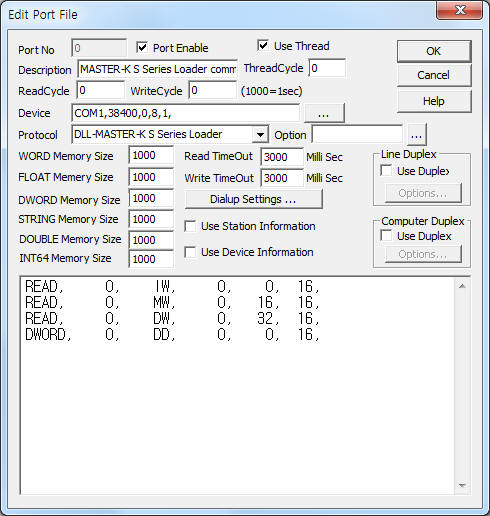

<Figure 1> is read setting example of MASTER-K S Series Loader communication driver.
|
|
| <Figure 1> Read setting example of MASTER-K S Series Loader communication driver |
Device part of <Figure 1> input Com Port(COM1), Baud Rate(38400), Parity Bit(0), Data Bit(8), Stop Bit(1) respectively.
Baud rate, parity bit, data bit, stop bit of MASTER-K S Series Loader port are fixed to 38400, 0, 8, 1.
MASTER-K S Series Loader communication driver read schedule
Read schedule setting parameters are as follows:
1) Station – don't care. ( Fixed to 0 )
2) Read memory type – memory type of PLC. ( refer to <Table 1> )
PW, MW, LW, KW, FW, TW, CW, DW, SW : WORD unit reading,
PD, MD, LD, KD, FD, TD, CD, DD, SD : DWORD unit reading,
3) Read start address – reading start address(word or double word unit) in PLC memory. ( WORD unit reading = word unit address, DWORD = double word unit address )
4) Save start address for Communication Server – Saving start address of Communication Server.
5) Read Size – word, double unit read size. ( WORD unit reading = word unit size, DWORD = double word unit size )
Read schedule example)
READ, 0, IW, 0, 0, 16,
READ, 0, MW, 0, 16, 16,
READ, 0, DW, 0, 32, 16,
DWORD, 0, DD, 0, 0, 16,
<Table 1> is memory type and contents of MASTER-K S Series Loader communication driver.
Memory type |
Contents |
PW, PD |
word, double word unit of P PLC memory |
MW, MD |
word, double word unit of M PLC memory |
LW, LD |
word, double word unit of L PLC memory |
KW, KD |
word, double word unit of S PLC memory |
FW, FD |
word, double word unit of F PLC memory |
TW, TD |
word, double word unit of T PLC memory |
CW, CD |
word, double word unit of C PLC memory |
DW, DD |
word, double word unit of D PLC memory |
SW, SD |
word, double word unit of S PLC memory |
| <Table 1> Memory type and contents of MASTER-K S Series Loader communication driver | |
If you click the icon
in protocol option part, you

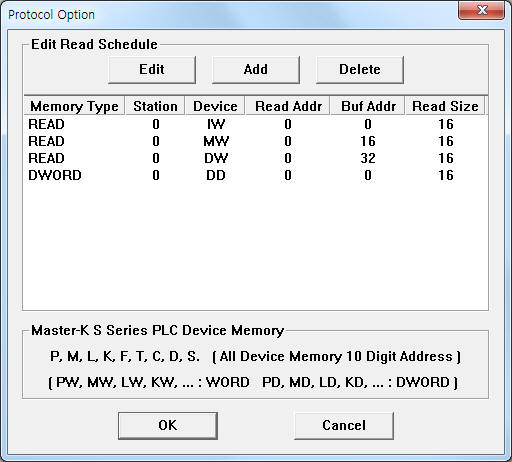

can see the dialogue box such as <Figure 2>. you can also set read schedule by
using this part.
 |
| <Figure 2> Example of Master-K S Series Loader communication driver¡¯s Option dialogue box |
You can set read schedule by using
,
,
button and listbox
of <Figure 2>.
 |

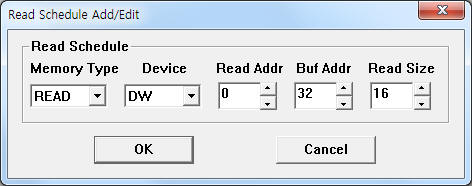

| <Figure 3> Example of Master-K S Series Loader communication driver¡¯s read schedule Add/Edit dialogue box |
When you click Add button or Edit button in dialogue box of <Figure 2>, dialogue box of <Figure 3> is shown.
You can set MASTER-K S Series PLC by using write settings.
Digital Write
Digital write setting parameters are as follows:
1) PORT Port no. (0 ~ 255)
2) STATION don't care. ( Fixed to 0 )
3) ADDRESS write address in memory.
upper 3 digit = decimal unit Word address, lower 1 digit = 0 ~ F bit position.
4) Extra1 write memory type = P, M, L, K, F, T, C, D, S.
5) Extra2 don't care.
Write example 1)
PORT : 0 Station : 0, ADDRESS : 0011, EXTRA1 : M, EXTRA2 : 0
The setting parameter shown above is a control(On/Off) example for 1 word, 1(2nd) bit of M memory type.
Write example 2)
PORT : 0 Station : 0, ADDRESS : 1232, EXTRA1 : D, EXTRA2 : 0
The setting parameter shown above is a control(On/Off) example for 123 word, 2(3rd) bit of D memory type.
Analog Write
Analog write setting parameters are as follows:
1) PORT Port no. (0 ~ 255)
2) STATION don't care. ( Fixed to 0 )
3) ADDRESS decimal unit write address in memory.
PW, MW, LW, KW, FW, TW, CW, DW, SW : word unit address,
PD, MD, LD, KD, FD, TD, CD, DD, SD : double word unit address.
4) Extra1 write memory type.
PW, MW, LW, KW, FW, TW, CW, DW, SW : word unit writing,
PD, MD, LD, KD, FD, TD, CD, DD, SD : double word unit writing,
5) Extra2 don't care.
Write example 1)
PORT : 0 Station : 0, ADDRESS : 0000, EXTRA1 : PW, EXTRA2 : 0
The setting parameter shown above is word unit write setting example for 0(1st) word of P memory type.
Write example 2)
PORT : 0 Station : 0, ADDRESS : 0025, EXTRA1 : MW, EXTRA2 : 0
The setting parameter shown above is word unit write setting example for 25(26th) word of M memory type.
Write example 3)
PORT : 0 Station : 0, ADDRESS : 0020, EXTRA1 : MD, EXTRA2 : 0
The setting parameter shown above is double word unit write setting example for 20(21th) double word of M memory type.
Write example 4)
PORT : 0 Station : 0, ADDRESS : 0132, EXTRA1 : DW, EXTRA2 : 0
The setting parameter shown above is word unit write setting example for 132(133th) word of D memory type.
Write example 5)
PORT : 0 Station : 0, ADDRESS : 0085, EXTRA1 : DD, EXTRA2 : 0
The setting parameter shown above is double word unit write setting example for 85(86th) double word of D memory type.
