LS PCU Inverter communication driver



LS PCU Inverter communication driver is the driver to communicate with PCU inverter of LSIS Co., Ltd. in Korea.



1. Read Settings



<Figure 1> is read setting example of LS PCU Inverter communication driver.

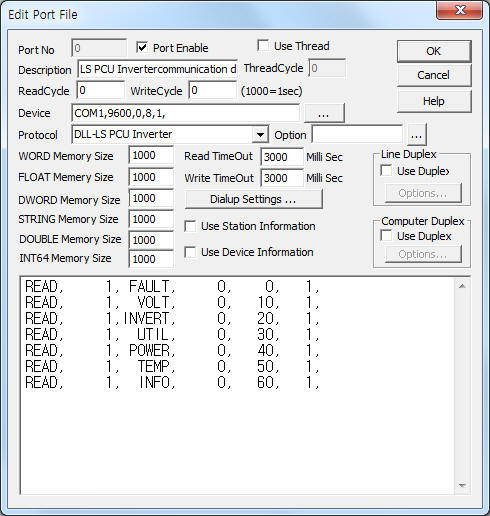

<Figure 1>  Read setting example of LS PCU Inverter communication driver

Device part of  <Figure 1> input Com Port(COM1), Baud Rate(9600), Parity Bit(0), Data Bit(8), Stop Bit(1) respectively, according to controller.



LS PCU Inverter communication driver read schedule

Read schedule setting parameters are as follows:

1) Station – 0 ~ 31 station address.

2) Read command – command = FAULT, VOLT, INVERT, UTIL, POWER, TEMP, INFO. ( refer to <Table 1> )

3) Read start address – read start address.

4) Save start address for Communication Server – Saving start address of Communication Server.

5) Read Size – fixed to 1.



Read schedule example)

READ,    1,    FAULT,     0,    0,   1,

READ,    1,      VOLT,     0,   10,   1,

READ,    1,  INVERT,     0,   20,   1,

READ,    1,       UTIL,     0,   30,   1,

READ,    1, POWER,     0,   40,   1,

READ,    1,     TEMP,     0,   50,   1,

READ,    1,      INFO,     0,   60,   1,



<Table 1> is read command and contents for LS PCU Inverter communication driver.

Command Contents Data saving address Remarks
FAULT read of Fault information Start addr + 0 : solar cell status 0 =solar cell over voltage
2 = solar cell low voltage
Start addr + 1 : inverter operation or alarm 0 = inverter over current
3 = system-inverter  phase error
7 = inverter heating
14 = inverter operation
Start addr + 2 : wiring alarm 0 = system over voltage
1 = system low voltage
3 = system blackout
4 = system over frequency
5= system low frequency
Spare Spare
VOLT solar cell voltage Start addr + 0 : solar cell voltage
solar cell voltage current Start addr + 1 : solar cell voltage current real value = read value/10
INVERT  U phase voltage of inverter Start addr + 0 :  U phase voltage of inverter
V phase voltage of inverter Start addr + 1 :  V phase voltage of inverter
W phase voltage of inverter Start addr + 2 : W phase voltage of inverter
U phase current of inverter Start addr + 3 : U phase current of inverter real value = read value/10
V phase current of inverter Start addr + 4 : V phase current of inverter
W phase current of inverter Start addr + 5 : W phase current of inverter
frequency of inverter Start addr + 6 : frequency of inverter real value = read value/10
UTIL system measurement R phase voltage Start addr + 0 : system measurement R phase voltage
system measurement S phase voltage Start addr + 1 : system measurement R phase voltage
system measurement T phasevoltage Start addr + 2 : system measurement R phase voltage
system measurement R phasecurrent Start addr + 3 : system measurement R phase current real value = read value/10
system measurement S phasecurrent Start addr + 4 : system measurement R phase current
system measurement T phasecurrent Start addr + 5 : system measurement R phase current
system measurement frequency Start addr + 6 : frequency of inverter real value = read value/10
POWER  current power(KW) of solar cell Start addr + 0 :  current power(KW) of solar cell real value = read value/1000
 Low Bit, amount of power(inverter) Start addr + 1 :  Low Bit, amount of power(inverter)
 High Bit, amount of power(inverter) Start addr + 2 : High Bit, amount of power(inverter)
 current power(KVA) of inverter Start addr + 3 :  current power(KVA) of inverter
maximum output power(KW) of inverter Start addr + 4 : maximum output power(KW) of inverter
power factor of inverter Start addr + 5 : power factor of inverter real value = read value/10
power generation(KWH) of inverter in one day Start addr + 6 : power generation(KWH) of inverter in one day
TEMP temperature of inverter Start addr + 0 : temperature of inverter real value = read value/10
INFO read of system information Start addr + 0 : phase, inverter capacity(KW) real value = read value/10
Start addr + 1 : year, month of manufacture
Start addr + 2 : serial number of inverter
<Table 1> Read command and contents for LS PCU Inverter communication driver

 If you click the icon  in protocol option part, you can see the dialog box such as <Figure 2>. you can also set read schedule by using this part.

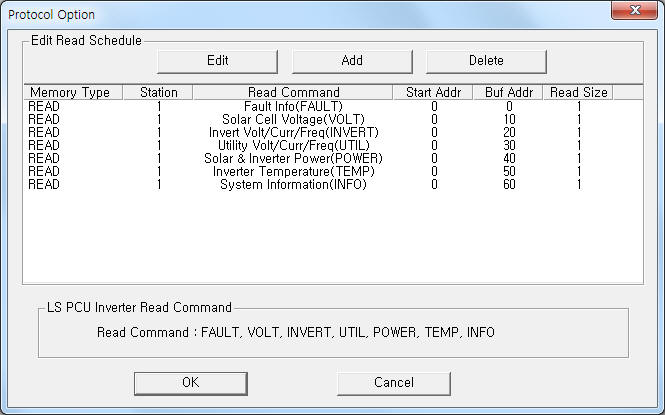

<Figure 2> Example of LS PCU Inverter communication driver¡¯s protocol option dialog box

You can set read schedule by using , ,  button and listbox of <Figure 2>.

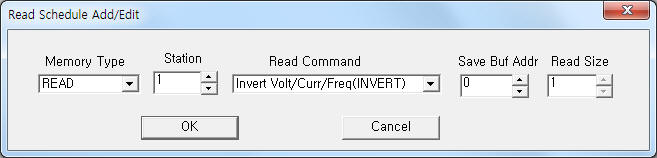

<Figure 3> Example of LS PCU Inverter communication driver¡¯s read schedule Add/Edit dialog box

When you click Add button or Edit button in dialog box of <Figure 2>, dialog box of <Figure 3> will be shown.



2. Writing settings

LS PCU Inverter communication don't support 'Writing settings'.
