UICS communication driver for LPF-7000 Series Projector

UICS communication driver for LPF-7000 Series Projector is the driver to communicate with projector equipment.

1. Read Settings

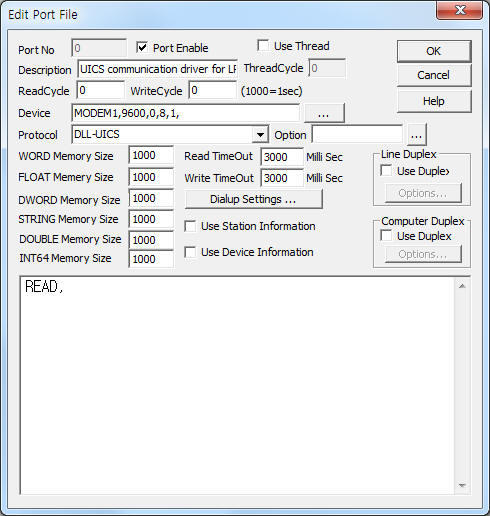

<Figure 1> is read setting example of UICS communication driver for LPF-7000 Series Projector.

<Figure 1>  Read setting example of UICS communication driver for LPF-7000 Series Projector

Device part of  <Figure 1> input Com Port(COM1), Baud Rate(9600), Parity Bit(0), Data Bit(8), Stop Bit(1) respectively, according to equipment.

In protocol option part, you can set the following: Data saving start address of STRING memory( default = 0 ), number of data saving(default = 200). Each argument  is a comma-delimited.

Note) Please use 'DLL-UICS' communication driver for LPF-7000 Series Projector.

UICS communication driver for LPF-7000 Series Projector communication driver read schedule

UICS communication driver for LPF-7000 Series Projector's read schedule input 'READ' one line.

reference) UICS communication driver

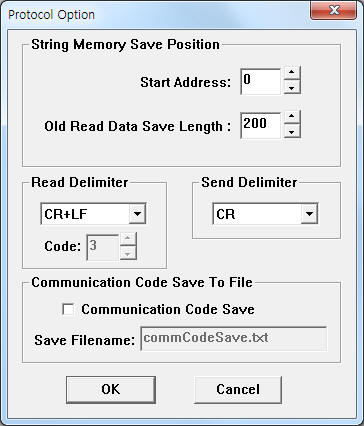

 If you click the icon  in protocol option part, you can see the dialog box such as <Figure 2>. you can also set String memory saving position, ....

<Figure 2> Example of UICS communication driver’s protocol option dialog box

2. Writing settings

You can set  LPF-7000 Series Projector by using 'writing settings'.

Digital Write

Digital write setting parameters are as follows:

1)  PORT                   Port no. (0 ~ 255)

2)  STATION             don't care.

3)  ADDRESS          don't care.

4)  Extra1                  Write command : refer to <Table 1>.

5) Extra2                   don't care.

<Table 1> is write command and operation for  LPF-7000 Series Projector.

Write example 1)

PORT:0,  station:0, ADDRESS:0000, Extra1:!P@G,  Extra2 : 0

The setting parameter shown above is Connect Command setting example.

Write example 2)

PORT:0,  station:0, ADDRESS:0000, Extra1:!PRM01,  Extra2 : 0

The setting parameter shown above is Power On setting example

Write example 3)

PORT:0,  station:0, ADDRESS:0000, Extra1:!PRM02,  Extra2 : 0

The setting parameter shown above is Power Off setting example.

Write example 4)

PORT:0,  station:0, ADDRESS:0000, Extra1:!PRM05,  Extra2 : 0

The setting parameter shown above is RGB1(or Video1) output setting example.

Write example 5)

PORT:0,  station:0, ADDRESS:0000, Extra1:!P@Q,  Extra2 : 0

The setting parameter shown above is Disconnect Command setting example.

Analog Write

Analog write and digital write have the same setting parameters except output value.
