KVC450 Compact SHIM Gauge Communication Driver is the driver to communicate with KVC450 Compact SHIM Gauge Module of KVC CO., LTD. in Korea.
<Figure 1> is read setting example of KVC450 Compact SHIM Gauge communication driver.
|
|

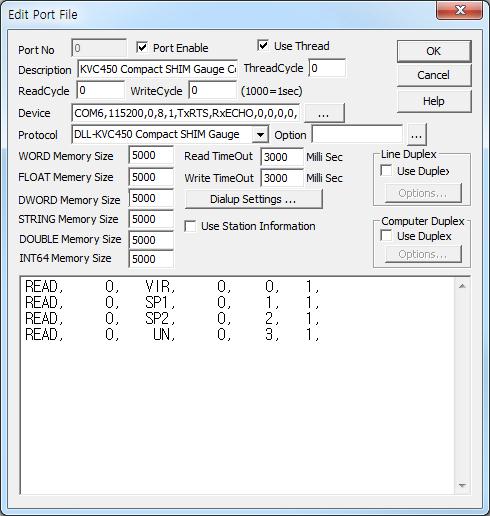

| <Figure 1> Read setting example of KVC450 Compact SHIM Gauge communication driver |
<Figure 1> is the screen where Com Port(COM1), Com Baud(115200), Parity Bit(0), Data Bit(8), Stop Bit(1) are input in DEVICE part.
KVC450 Compact SHIM Gauge communication driver read schedule
Read schedule setting parameters are as follows:
1) STATION – 0 ~ 15, ID No.
2) Read Command – Command = VIR, SP1, SP2, UN.(Refer to <Table 1>)
3) Read Start Address – Don't care.
4) Save Start Address for Communication Server – saving start address of Communication Server.
5) Read Size – Read Size is fixed with 1.
Read schedule example)
READ, 0, VIR, 0, 0, 1,
READ, 0, SP1, 0, 1, 1,
READ,
0, SP2, 0, 2, 1,
READ, 0, UN, 0, 3, 1,
<Table 1> is a description of read commands type and stored values of KVC450 Compact SHIM Gauge communication driver.
| Read Command | Content | Stored Values | Remarks |
| VIR | Read of Virtual Vacuum Value | Start Addr + 0 : Virtual Vacuum Value | Float/Double |
| SP1 | Read of Setting Point 1 Value | Start Addr + 0 : Setting Point 1 Value | Float/Double |
| SP2 | Read of Setting Point 2 Value | Start Addr + 0 : Setting Point 2 Value | Float/Double |
| UN | Read of Unit/SP1/SP2 Status | Start Addr + 0 : Unit (0 = Torr, 1 = Pascal) Start Addr + 1 : SP1 Status (0 = Off, 1 = On) Start Addr + 2 : SP2 Status (0 = Off, 1 = On) |
|
| <Table 1> Read commands type and stored values of KVC450 Compact SHIM Gauge Communication Driver | |||
KVC450 Compact SHIM Gauge communication driver store the same data in WORD, DWORD, FLOAT, DOUBLE memory, but the data formats are different.
If you click the icon
in protocol option part, you can see the dialog
box such as <Figure 2>. you can also set read schedule by using this part.
 |

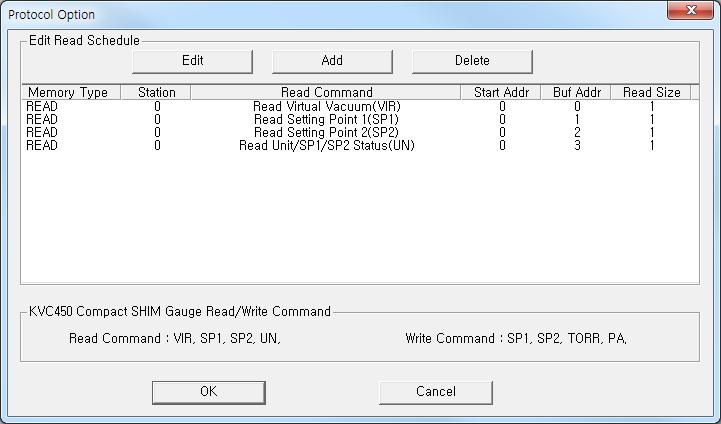

| <Figure 2> Example of KVC450 Compact SHIM Gauge Communication Driver’s Option dialog box |
You can set read schedule by using
,
,
button and listbox of <Figure 2>.
 |

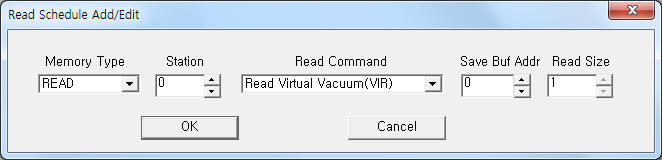

| <Figure 3> Example of KVC450 Compact SHIM Gauge communication driver’s read schedule Add/Edit dialog box |
When you click Add button or Edit button in dialogue box of <Figure 2>, dialogue box of <Figure 3> will be shown.
You can setting SP1, SP2 or Unit values of KVC450 Compact SHIM Gauge by using write commands.
Digital write
Digital write and analog write have the same setting parameters except output value(0 or 1).
Analog write
Analog write setting parameters are as follows:
1) PORT : Port no. (0 ~ 255)
2) STATION : 0 ~ 15, ID No.
3) ADDRESS : Don't care.
4) EXTRA 1 : Write Command = SP1, SP2, TORR, PA. (Refer to <Table 3>)
5) EXTRA 2 : Don't care.
<Table 2> is a description of write commands and contents of KVC450 Compact SHIM Gauge communication driver.
| Write Command | Contents | Output Value | |
| SP1 | Setting of SP1 Value | Float/Double Value | |
| SP2 | Setting of SP2 Value | Float/Double Value | |
| TORR | Unit Change to Torr | Don't care | |
| PA | Unit Change to Pascal | Don't care | |
| <Table 2> Write commands for KVC450 Compact SHIM Gauge communication driver | |||
Write example 1)
PORT:0, station:0, ADDRESS:0000, Extra1:SP1, Extra : 0
The setting parameter shown above is an example of word write for SP1 Setting of KVC450 Compact SHIM Gauge connected with 0 port.
Write example 2)
PORT:0, station:0, ADDRESS:0000, Extra1:TORR, Extra : 0
The setting parameter shown above is an example of word write for unit change to 'Torr' of KVC450 Compact SHIM Gauge connected with 0 port.
Block write
KVC450 Compact SHIM Gauge communication driver doesn’t support ‘Block write’.

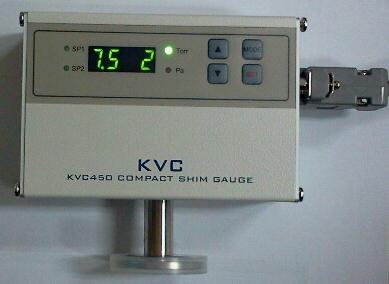

<Figure 4> shows the appearance of KVC450 Compact SHIM Gauge Module.
 |
| <Figure 4> Appearance of KVC450 Compact SHIM Gauge Module |
