KNX EIB 485 Protocol communication driver is the driver to communicate with standard protocol(by 485) of KNX Association.
<Figure 1> is read setting example of KNX EIB 485 Protocol communication driver.
|
|

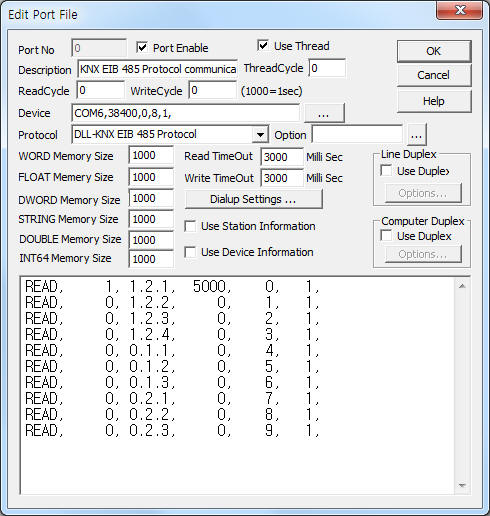

| <Figure 1> Read setting example of KNX EIB 485 Protocol communication driver |
Device part of <Figure 1> input Com Port(COM6), Baud Rate(38400), Parity Bit(0), Data Bit(8), Stop Bit(1) respectively, according to controller.
KNX EIB 485 Protocol communication driver read schedule
Read schedule setting parameters are as follows:
1) Use of periodic read – 1 = use, 0 = don't use.
2) Group address – Main.Sub.Device address separated by dot ( . ). example) 0.1.2.
3) Interval of periodic read – 0 ~ 600000 milli second( 1second = 1000).
4) Save start address for Communication Server – Saving start address of Communication Server.
5) Read Size – fixed to 1.
Read schedule example)
READ, 1, 1.2.1, 5000, 0, 1,
READ, 0, 1.2.2, 0, 1, 1,
READ, 0, 1.2.3, 0,
2, 1,
READ, 0, 1.2.4, 0, 3, 1,
READ, 0, 0.1.1, 0, 4, 1,
READ, 0, 0.1.2,
0, 5, 1,
READ, 0, 0.1.3, 0, 6, 1,
READ, 0, 0.2.1, 0, 7, 1,
READ, 0,
0.2.2, 0, 8, 1,
READ, 0, 0.2.3, 0, 9, 1,
KNX EIB 485 Protocol communication driver store the same data in WORD, DWORD, FLOAT, DOUBLE, INT64 memory, but the data format are different.
If you click the icon
in protocol option part, you can see the dialog
box such as <Figure 2>. you can also set read schedule by using this part.
 |

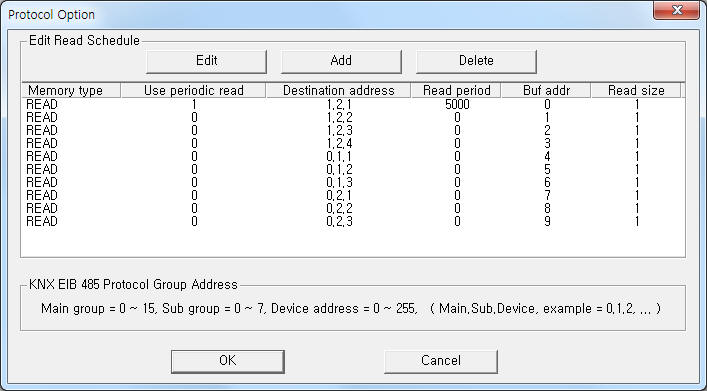

| <Figure 2> Example of KNX EIB 485 Protocol communication driver’s protocol option dialog box |
You can set read schedule by using
,
,
button and listbox of <Figure 2>.
 |

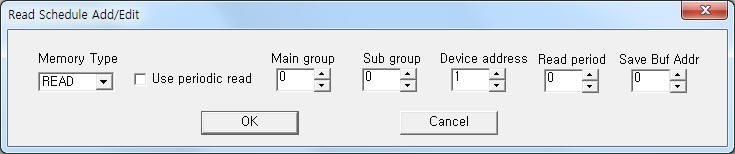

| <Figure 3> Example of KNX EIB 485 Protocol communication driver’s read schedule Add/Edit dialog box |
When you click Add button or Edit button in dialog box of <Figure 2>, dialog box of <Figure 3> will be shown.
You can set KNX EIB 485 controller by using 'writing settings'.
Digital Write
Digital write and analog write have the same setting parameters except output value and address.
Analog Write
Analog write setting parameters are as follows:
1) PORT Port no. (0 ~ 255)
2) STATION don't care.
3) ADDRESS don't care.
4) Extra1 Main.Sub.Device address separated by dot ( . ). example) 0.1.2.
5) Extra2 selection of writing data type.
0 = bit unit,
1 = byte unit,
2 = word unit.
Write example 1)
PORT:0, station:0, ADDRESS:0000, Extra1:0.0.1, Extra2 : 0
The setting parameter shown above is bit unit(On/Off) control example of 0 Main, 0 Sub, 1 Device address.
Write example 2)
PORT:0, station:0, ADDRESS:0000, Extra1:0.2.1, Extra2 : 1
The setting parameter shown above is byte unit writing example of 0 Main, 2 Sub, 1 Device address.
Write example 3)
PORT:0, station:0, ADDRESS:0000, Extra1:1.2.3, Extra2 : 1
The setting parameter shown above is word unit writing example of 1 Main, 2 Sub, 3 Device address.

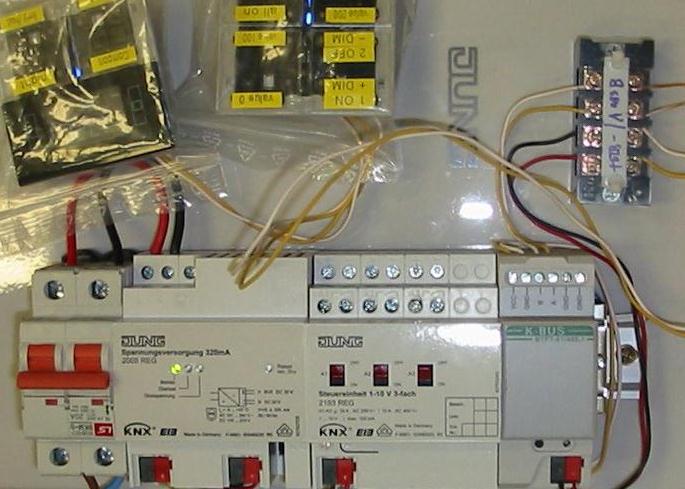

<Figure 4> is appearance of KNX EIB 485 controller.
 |
| <Figure 4> Appearance of KNX EIB 485 controller |
