Intellex-500 Fire Monitoring System Communication Driver



Intellex-500 Fire Monitoring System Communication Driver is the driver to communicate with Intellex-500 fire monitoring system.



Note) Intellex-500 Fire Monitoring System communication driver is designed data saving to WORD memory from the fire monitoring system.



1. Read settings

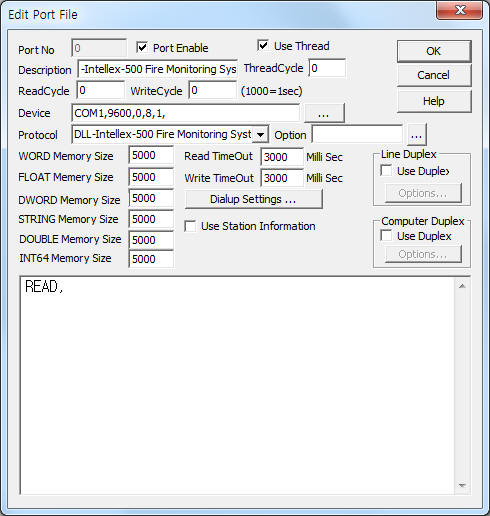

<Figure 1> is read setting example of Intellex-500 Fire Monitoring System communication driver.

<Figure 1>  Read setting example of Intellex-500 Fire Monitoring System communication driver



Device part of  <Figure 1> input Com Port(COM1), Baud Rate(9600), Parity Bit(0), Data Bit(8), Stop Bit(1) respectively.





Intellex-500 Fire Monitoring System communication driver¡¯s read schedule

Intellex-500 Fire Monitoring System's read schedule input only 'READ' one line.



Read schedule example)

READ,


<Table 1> is a description of stored values and contents of  Intellex-500 Fire Monitoring System communication driver.

Stored Values(WORD memory) and Contents Status Value
 0 :  Emergency broadcasting status 0 = normal(don't broadcasting), 1 = broadcasting
101 ~ 199 : 01-01 ~ 01-99 area fire alarm 0 = normal,
1 = fire
201 ~ 299 : 02-01 ~ 02-99 area fire alarm
301 ~ 399 : 03-01 ~ 03-99 area fire alarm
401 ~ 499 : 04-01 ~ 04-99 area fire alarm
501 ~ 599 : 05-01 ~ 05-99 area fire alarm
601 ~ 699 : 06-01 ~ 06-99 area fire alarm
701 ~ 799 : 07-01 ~ 07-99 area fire alarm
801 ~ 899 : 08-01 ~ 08-99 area fire alarm
901 ~ 999 : 09-01 ~ 09-99 area fire alarm
1001 ~ 1099 : 10-01 ~ 10-99 area fire alarm
<Table 1>  Stored values and contents Intellex-500 Fire Monitoring System communication driver



Intellex-500 Fire Monitoring System communication driver store the readed data to WORD memory.

 If you click the icon  in protocol option part, you can see the dialogue box such as <Figure 2>.

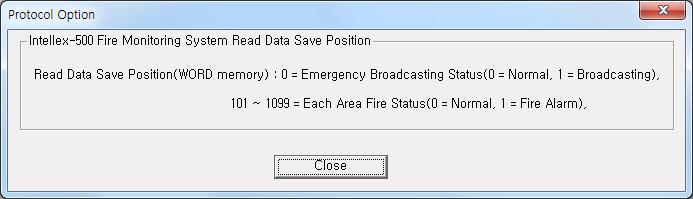

<Figure 2> shows the description of stored values and contents of Intellex-500 Fire Monitoring System communication driver.

<Figure 2> Description of stored values and contents of Intellex-500 Fire Monitoring System communication driver





2. Write settings

Intellex-500 Fire Monitoring System communication driver don¡¯t support ¡®Write setting¡¯.
