IICS TCP/IP 1 communication driver

IICS TCP/IP 1 communication driver is the driver to send 'analog value' by periods.

1. Read Settings

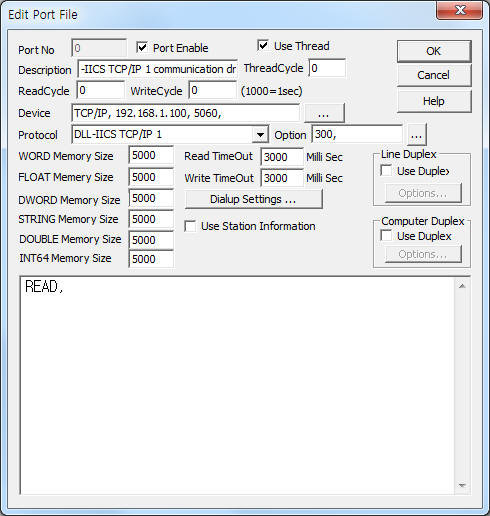

<Figure 1> is read setting example of IICS TCP/IP 1 communication driver.

<Figure 1>  Read setting example of IICS TCP/IP 1 communication driver

Device part of  <Figure 1> input Device type(TCP/IP), IP address of PLC(192.168.1.100), service port of TCP/IP protocol ( 5060 ),respectively.

Also you can input 'data send period' (0 ~ 1000 second, default = 300 ) by using option part.

IICS TCP/IP 1 communication driver read schedule

IICS TCP/IP 1 communication driver's read schedule input 'READ' one line.

 Note) IICS TCP/IP 1 communication driver send analog data of 0 ~ 8 FLOAT memory value.

So, you have to set the FLOAT(0 ~ 8 address) memory value at the SCADA Server.  Analog Output tag : Address = 0 ~ 8,  Extra1 = #MEM#,  Extra2 = 1 (FLOAT memory).

2. Writing settings

IICS TCP/IP 1 communication driver don't support 'writing settings'.
