ICP CON communication driver is the driver to communicate with controller of Measurement Systems Ltd. in U.K.

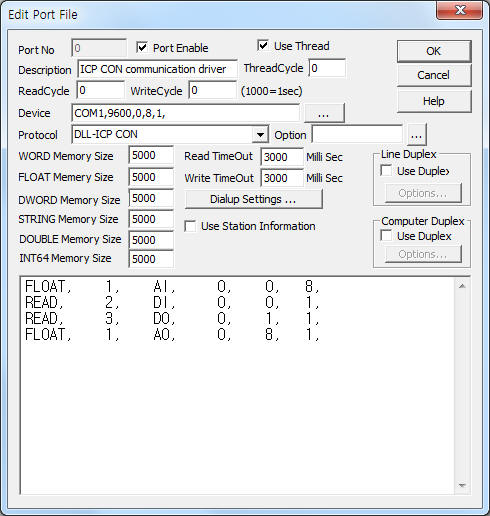

<Figure 1> is read setting example of ICP CON communication driver.
|
|
| <Figure 1> Read setting example of ICP CON communication driver |
Device part of <Figure 1> input Com Port(COM1), Baud Rate(9600), Parity Bit(0), Data Bit(8), Stop Bit(1) respectively, according to controller.
Please refer to ICP-CON user manaul for setting of baud rate, data bit, ...
ICP CON communication driver read schedule
Read schedule setting parameters are as follows:
1) Station – 0 ~ 255 controller station number. You can set by setup program of ICP-CON.
2) Read command – Command = AI, DI, AO, DO.
3) Read Start Address – Read start address of controller.
4) Save start address for Communication Server – Saving start address of Communication Server.
5) Read Size – Word unit read size.
Read schedule example)
FLOAT, 1, AI, 0, 0, 8,
READ, 2, DI, 0, 0, 1,
READ, 3, DO, 0, 1, 1,
FLOAT, 1, AO, 0, 8, 1,
You can control ICP CON controller by using write settings
Digital Write
Digital write setting parameters are as follows:
1) PORT Port no. (0 ~ 255)
2) STATION 0 ~ 255 controller station number.
3) ADDRESS Writing address of ICP CON controller.
4) Extra1 Writing area = DO.
5) Extra2 Don't care.
Write example 1)
PORT:0, station:1, ADDRESS:0000, Extra1: DO, Extra2 :
The setting parameter shown above is a 1st( 0 ) channel DO control( On/Off ) example of 1 station ICP CON controller.
Analog Write
Analog write setting parameters are as follows:
1) PORT Port no. (0 ~ 255)
2) STATION 0 ~ 255 controller station number.
3) ADDRESS Writing address of ICP CON controller.
4) Extra1 Writing area = AO.
5) Extra2 Don't care.
Write example 1)
PORT:0, station:1, ADDRESS:0000, Extra1: AO, Extra2 :
The setting parameter shown above is a 1st( 0 ) channel AO setting example of 1 station ICP CON controller.
Please connect direct RS-232C serial communication cable to ICP CON controller.
