HPR-MD MODBUS communication driver



HPR-MD MODBUS communication driver is the driver to communicate with digital protective relay controller of HyoSung in Korea.



1. Read Settings

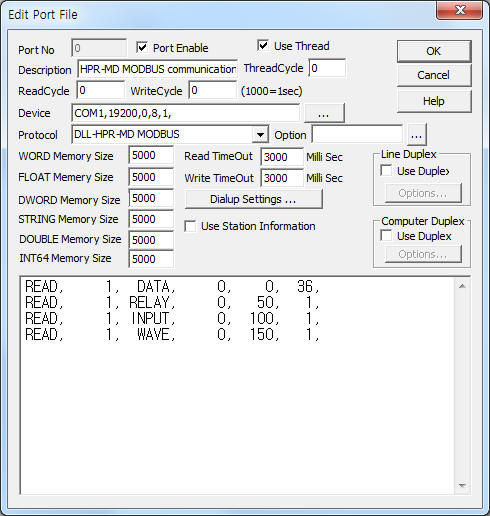

<Figure 1> is read setting example of HPR-MD MODBUS communication driver.

<Figure 1>  Read setting example of HPR-MD MODBUS communication driver

Device part of  <Figure 1> input Com Port(COM1), Baud Rate(19200), Parity Bit(0), Data Bit(8), Stop Bit(1) respectively, according to setting of controller.



Note) Station number, baud rate, etc of HPR-MD power meter can set by using operation button of front panel.



HPR-MD MODBUS communication driver read schedule

Read schedule setting parameters are as follows:

1) Station – 0 ~ 255 station number of power meter.(you can set by using operation button of fron panel)

2) Device name of function number – Device name or function number of Modbus protocol.

Device name = DATA, EVENT1 ~ 3, FAULT1 ~ 3, RELAY, WAVE, INPUT. ( refetr to <Table 1>)

3) Read Start Address Reading start address of modbus protocol. Don't care when using Device name.

4) Save start address for Communication Server – Saving start address of Communication Server.

5) Read Size – Read size(Word unit).



Read schedule example)

READ,    1,  DATA,     0,    0,  36,

READ,    1, RELAY,     0,   50,   1,

READ,    1, INPUT,     0,  100,   1,

READ,    1,  WAVE,     0,  150,   1,



<Table 1> is device type and contents of HPR-MD MODBUS communication driver.

<Table 2>, <Table 3> are data saving address and contetns of basic Data, Event record.

<Table 4>, <Table 5> are data saving address and contetns of Fault record, Relay Setting status.

<Table 6>, <Table 7> are data saving address and contetns of Header information and Fault wave Data, Digital Input status.

Device name

Contents

Read size

DATA

basic Data

36 Word

EVENT1

EVENT2

EVENT3

Event record

7 Word

FAULT1

FAULT2

FAULT3

Fault record

7 Word

RELAY

Relay Setting status

17 Word

WAVE

Header information and

Fault wave Data

15 : Header +

10 x 12 wave info (Word)

INPUT

Digital Input status

10 Bit

<Table 1> Device type and contents of HPR-MD MODBUS communication driver

Data Saving Address

Contents

Remarks

Start Addr + 0

HPR Type

0x11 (MD model)

Start Addr + 1

LOCAL/REMOTE

0 : Local,  1 : Remote

Start Addr + 2

R phase current LSB

X 100



unit : A

Start Addr + 3

R phase current MSB

Start Addr + 4

S phase current LSB

Start Addr + 5

S phase current MSB

Start Addr + 6

T phase current LSB

Start Addr + 7

T phase current MSB

Start Addr + 8

N phase current LSB

Start Addr + 9

N phase current MSB

Start Addr + 10

R phase voltage LSB

X 10



unit : V

Start Addr + 11

R phase voltage MSB

Start Addr + 12

S phase voltage LSB

Start Addr + 13

S phase voltage MSB

Start Addr + 14

T phase voltage LSB

Start Addr + 15

T phase voltage MSB

Start Addr + 16

N phase voltage LSB

Start Addr + 17

N phase voltage MSB

Start Addr + 18

RS phase voltage LSB

X 10



unit : V

Start Addr + 19

RS phase voltage MSB

Start Addr + 20

ST phase voltage LSB

Start Addr + 21

ST phase voltage MSB

Start Addr + 22

TR phase voltage LSB

Start Addr + 23

TR phase voltage MSB

Start Addr + 24

ACTIVE power LSB

X 1000

unit : KW

Start Addr + 25

ACTIVE power MSB

Start Addr + 26

REACTIVE power LSB

X 1000

unit : KVar

Start Addr + 27

REACTIVE power MSB

Start Addr + 28

ACTIVE ENERGY LSB

X 10

unit : KWh

Start Addr + 29

ACTIVE ENERGY MSB

Start Addr + 30

REACTIVE ENERGY LSB

X 1000

unit : KVarh

Start Addr + 31

REACTIVE ENERGY MSB

Start Addr + 32

POWER FACTER

X 1000

Start Addr + 33

frequency

X 100  unit : Hz

Start Addr + 34

DI State



Start Addr + 35

Event Count, Fault Count

higher 8 Byte : Fault Count,

lower 8 Byte : Event Count

<Table 2> Data saving address and contetns of basic Data
Data Saving Address

Contents

Remarks

Start Addr + 0

HPR Type

0x11 (MD model)

Start Addr + 1

higher 8 Byte : ID2,

lower 8 Byte : ID1

ID1, ID2, ID3

= refer to user manual of HPR

Start Addr + 2

higher 8 Byte : Event Position,

lower 8 Byte : ID3



Start Addr + 3

higher 8 Byte : Month,

lower 8 Byte : Year



Start Addr + 4

higher 8 Byte :Day,

lower 8 Byte : Date

Date = 1 (sunday) ~ 7 (saturday)

Start Addr + 5

higher 8 Byte : Min,

lower 8 Byte : Hour



Start Addr + 6

higher 8 Byte : 0x33,

lower 8 Byte : Sec



<Table 3> Data saving address and contetns of Event record
Data Saving Address

Contents

Remarks

Start Addr + 0

HPR Type

0x11 (MD model)

Start Addr + 1

higher 8 Byte : ID2,

lower 8 Byte : ID1

ID1, ID2 = refer to

user manual of HPR

Start Addr + 2

higher 8 Byte : Fault Position,

lower 8 Byte : 0x00



Start Addr + 3

higher 8 Byte : Month,

lower 8 Byte : Year



Start Addr + 4

higher 8 Byte :Day,

lower 8 Byte : Date

Date = 1 (sunday) ~ 7 (saturday)

Start Addr + 5

higher 8 Byte : Min,

lower 8 Byte : Hour



Start Addr + 6

higher 8 Byte : 0x44,

lower 8 Byte : Sec



<Table 4> Data saving address and contetns of Fault record
Data Saving Address

Contents

Remarks
Start Addr + 0

HPR Type

0x11 (MD model)
Start Addr + 1

IOCR current


Start Addr + 2

IOCR Lock


Start Addr + 3

IOCGR current


Start Addr + 4

IOCGR Lock


Start Addr + 5

higher 8 Byte : TOCR Curve,

lower 8 Byte : TOCR current


Start Addr + 6

higher 8 Byte : TOCR Lock,

lower 8 Byte : TOCR Time Tab


Start Addr + 7

higher 8 Byte : TOCGR Curve,

lower 8 Byte : TOCGR current


Start Addr + 8

higher 8 Byte : TOCGR Lock,

lower 8 Byte : TOCGR Time Tab


Start Addr + 9

TOVR voltage


Start Addr + 10

higher 8 Byte : TOVR Lock,

lower 8 Byte : TOVR Time Tab


Start Addr + 11

higher 8 Byte : TOVGR Time Tab,

lower 8 Byte : TOVGR voltage


Start Addr + 12

higher 8 Byte : 0x00,

lower 8 Byte : TOVGR Lock


Start Addr + 13

higher 8 Byte : TUVR Time Tab,

lower 8 Byte : TUVR voltage


Start Addr + 14

higher 8 Byte : 0x00,

lower 8 Byte : TUVR Lock


Start Addr + 15

SGR


Start Addr + 16

SGR


<Table 5> Data saving address and contetns of Relay Setting status
Data Saving Address

Contents

Remarks
Start Addr + 0

higher 8 Byte : FNum,

lower 8 Byte : HPR Type

FNum = Fault Num
(0 ~ 31)
Start Addr + 1

higher 8 Byte : ZCT Ratio,

lower 8 Byte : CNum

CNum = Segment Num
(0 ~ 23)
Start Addr + 2

CT Ratio


Start Addr + 3

GPT Ratio


Start Addr + 4

PT Ratio LSB


Start Addr + 5

PT Ratio MSB


Start Addr + 6

Index


Start Addr + 7

Ir Scale


Start Addr + 8

Is Scale


Start Addr + 9

It Scale


Start Addr + 10

In Scale


Start Addr + 11

Vr Scale


Start Addr + 12

Vs Scale


Start Addr + 13

Vt Scale


Start Addr + 14

Vn Scale


Start Addr + 15

R phase current


Start Addr + 16 ~ 24

S phase current

Point 1 wave information

T phase current

N phase current

R phase voltage

S phase voltage

T phase voltage

N phase voltage

DI status

DO status

Start Addr + 25 ~ 34

¡°

Point 2 wave information
~

¡°

~
Start Addr + 125 ~ 134

¡°

Point 12 wave information
<Table 6> Data saving address and contetns of Header information and Fault wave Data
Data Saving Address

Contents

Remarks

Start Addr + 0

digital input status

0 ~ 9 Bit

<Table 7> Data saving address and contetns of Digital Input status

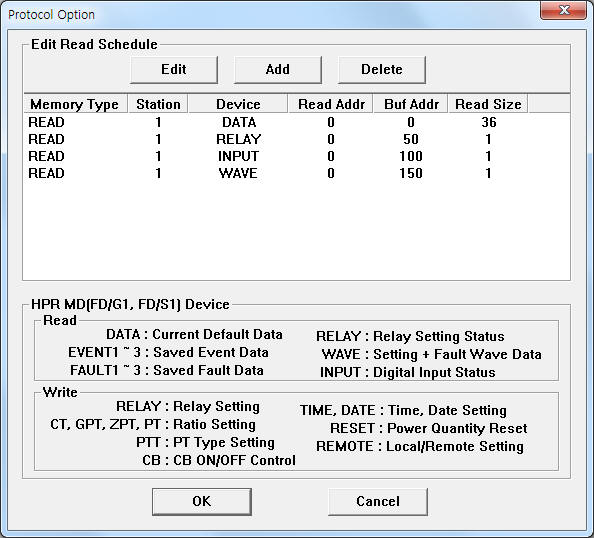

 If you click the icon  in protocol option part, you can see the dialogue box such as <Figure 2>. you can also set read schedule by using this part.

<Figure 2> Example of HPR-MD MODBUS communication driver¡¯s Option dialogue box

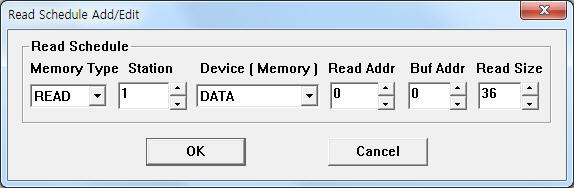

You can set read schedule by using , , button and listbox of <Figure 2>.

<Figure 3> Example of HPR-MD MODBUS communication driver¡¯s read schedule Add/Edit dialogue box

When you click Add button or Edit button in dialogue box of <Figure 2>, dialogue box of <Figure 3> is shown.



2. Writing settings

You can set HPR-MD controller by using write settings.



Digital Write

Digital write setting parameters are as follows:

1)  PORT                   Port no. (0 ~ 255)

2)  STATION              0 ~ 255 station number of HPR-MD controller.

3)  ADDRESS           Writing address according to Extra1.

RELAY – 0 ~ 25 address, refer to <Table 8>,

TIME – 0 ~ 23 = hour,

DATE – 0 ~ 99 = year,

Read Command  – Data saving address(WORD memory, decimal unit),

other command – don't care.(fixed according to command),

4)  Extra1                   Write command.

RELAY – Relay setting,

CT – CT Ratio setting (5 ~ 6000),

GPT– GPT Ratio setting (199 ~ 999),

PTT – PT Type setting ( 0 : 2PT, 1 : 3PT),

PT – PT Ratio setting ( 110 ~ 345000 ),

CB – CB ON/OFF control (0 : OFF, 1 : ON,  can control only Remote mode),

TIME – time setting,

DATE- data setting,

RESET- Reset of power,

REMOTE- Local/Remote setting (0 : Local, 1 : Remote)

DATA, EVENT1~3, FAULT1~3, RELAY, WAVE, INPUT read command - save to WORD memory from input 'Address' after reading the data.

5)  Extra2                   Minute or day of the week when TIME, DATE command.

TIME – minute (0 ~ 59),

DATE – day of the week (1(sunday) ~ 7(saturday),

Read command or other command - Don't care.



<Table 8> is Address and contents for Relay setting writie command.

Address

Contents

Output range

Remarks

0000

HPR Type

0x11 ~ 0x44



0001

IOCR current

100 ~ 1000

X 10

0002

IOCR Lock

0 ~ 1



0003

IOCGR current

25 ~ 400

X 10

0004

IOCGR Lock

0 ~ 1



0005

TOCR current

20 ~ 160

X 10

0006

TOCR Curve

1 ~ 4



0007

TOCR Time Tab

1 ~ 20



0008

TOCR Lock

0 ~ 1



0009

TOCGR current

5 ~ 25

X 10

0010

TOCGR Curve

1 ~ 4



0011

TOCGR Time Tab

1 ~ 20



0012

TOCGR Lock

0 ~ 1



0013

TOVR voltage

121 ~ 165

X 1

0014

TOVR Time Tab

1 ~ 19



0015

TOVR Lock

0 ~ 1



0016

TOVGR voltage

19 ~ 76

X 1

0017

TOVGR Time Tab

1 ~ 19



0018

TOVGR Lock

0 ~ 1



0019

TUVR voltage

55 ~ 99

X 1

0020

TUVR Time Tab

1 ~ 19



0021

TUVR Lock

0 ~ 1



0022

TSGR voltage



don't care

0023

TSGR current



0024

TSGR Time Tap



0025

TSGR Lock



<Table 8> Address and contents for Relay setting writie command

Write example 1)

PORT:0,  station:1, ADDRESS:0000, Extra1:CB,  Extra2 :

The setting parameter shown above is CB control(0 = OFF, 1 = ON) example of 1 station HPR-MD controller.



Write example 2)

PORT:0,  station:1, ADDRESS:0000, Extra1:REMOTE,  Extra2 :

The setting parameter shown above is Local(OFF)/Remote(ON) control example of 1 station HPR-MD controller.



Write example 2)

PORT:0,  station:1, ADDRESS:0100, Extra1:DATA,  Extra2 :

The setting parameter shown above is a example for 'DATA' reading command.

After 'write command', save the readed data at 100 ~ 135 WORD memory.



Analog Write

Analog write setting parameters are as follows:

1)  PORT                   Port no. (0 ~ 255)

2)  STATION              0 ~ 255 station number of HPR-MD controller.

3)  ADDRESS           Writing address according to Extra1.

RELAY – 0 ~ 25 address, refer to <Table 8>,

TIME – 0 ~ 23 = hour,

DATE – 0 ~ 99 = year,

Read Command  – Data saving address(WORD memory, decimal unit),

other command – don't care.(fixed according to command),

4)  Extra1                   Write command.

RELAY – Relay setting,

CT – CT Ratio setting (5 ~ 6000),

GPT– GPT Ratio setting (199 ~ 999),

PTT – PT Type setting ( 0 : 2PT, 1 : 3PT),

PT – PT Ratio setting ( 110 ~ 345000 ),

CB – CB ON/OFF control (0 : OFF, 1 : ON,  can control only Remote mode),

TIME – time setting,

DATE- data setting,

RESET- Reset of power,

REMOTE- Local/Remote setting (0 : Local, 1 : Remote)

DATA, EVENT1~3, FAULT1~3, RELAY, WAVE, INPUT read command - save to WORD memory from input 'Address' after reading the data.

5)  Extra2                   Minute or day of the week when TIME, DATE command.

TIME – minute (0 ~ 59),

DATE – day of the week (1(sunday) ~ 7(saturday),

Read command or other command - Don't care.



Note) Output Value = 0 ~ 59, setting of second for TIME write command,

Output Value = Higher 2 digit : 1 ~ 12 month, Lower 2 digit : 1 ~ 31 day for DATE write command.



Write example 1)

PORT:0,  station:1, ADDRESS:0000, Extra1:CT,  Extra2 :

The setting parameter shown above is a CT ratio setting example of 1 station HPR-MD controller.



Write example 2)

PORT:0,  station:1, ADDRESS:0000, Extra1:PTT,  Extra2 :

The setting parameter shown above is a PT type(0 : 2PT, 1 : 3PT) setting example of 1 station HPR-MD controller.



Write example 3)

PORT:0,  station:1, ADDRESS:0000, Extra1:PT,  Extra2 :

The setting parameter shown above is a PT ratio setting example of 1 station HPR-MD controller.



Write example 4)

PORT:0,  station:1, ADDRESS:0001, Extra1:DATE,  Extra2 : 2, Output Value : 1112

The setting parameter shown above is Date setting example of 1 station HPR-MD controller.  Date setting value = 2001-11-12, Monday.



Write example 5)

PORT:0,  station:1, ADDRESS:0013, Extra1:TIME,  Extra2 : 35, Output Value : 25

The setting parameter shown above is Time setting example of 1 station HPR-MD controller.  Time setting value = 13:35:25.



Write example 6)

PORT:0,  station:1, ADDRESS:0001, Extra1:RELAY,  Extra2 :

The setting parameter shown above is 'IOCR current'( refer to <Table 8> ) setting example of 1 station HPR-MD controller.
