HD-2200 Integrator & Batch Counter communication driver



HD-2200 Integrator & Batch Counter communication driver is the driver to communicate with Multi Integrator & Batch Counter controller of ISM Co,. Ltd. in Korea.



1. Read settings



<Figure 1> is read setting example of HD-2200 Integrator & Batch Counter communication driver.

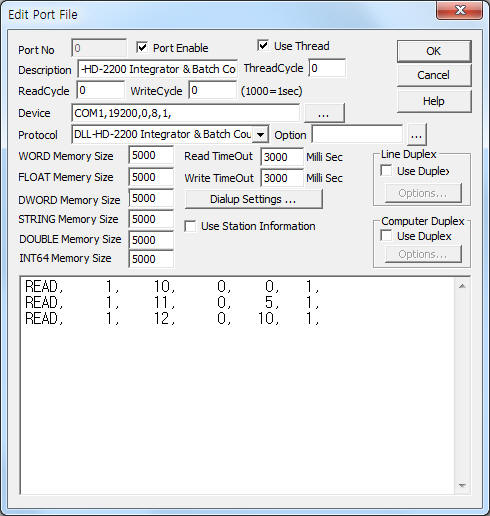

<Figure 1>  Read setting example of HD-2200 Integrator & Batch Counter communication driver

Device part of  <Figure 1> input Com Port(COM1), Baud Rate(19200), Parity Bit(0), Data Bit(8), Stop Bit(1) respectively according to setting of controller.



Note) Baud Rate, Parity Bit, Data Bit, Stop Bit of HD-2200 Integrator & Batch Counter controller are fixed to 19,200, 0, 8, 1.



HD-2200 Integrator & Batch Counter communication driver read schedule

Read schedule setting parameters are as follows:

1) STATION – Controller station number = 0 ~ 99.

2) Read command – Read command = 10, 11, 12, HD6000. ( refer to <Table 1> )

3) Read start address – Don't care.

4) Save start address for Communication Server – saveing start address of Communication Server.

5) Read size - Read size = fixed to 1.( always read 5 data, refer to <Table 2> )



Read schedule example)

READ,     1,    10,     0,    0,   1,

READ,     1,    11,     0,    5,   1,

READ,     1,    12,     0,   10,   1



<Table 1> is read command and contents of HD-2200 Integrator & Batch Counter communication driver.

<Table 2> is data saving address and contents for read command.

Read command

Contents

10 (default)

Read of PV value

11

Read of PV Total Count

12

Read of PV Current Count

HD6000

 PV value read of HD-6000 controller

<Table 1> Read command and contents of HD-2200 Integrator & Batch Counter communication driver

Data Saving Address

Contents

Remarks

Start Add + 0

Status of read value

0 = normal,

1 = low status,

2 = High status

Start Add + 1

Read value

8 or 4 digit number

HD-6000 = 4 digit number.

Start Add + 2

Calucated read value

float value

Start Add + 3

Decimal point

7 = don't exist decimal point,

6 = decimal point = 1, ¡¦.

Start Add + 4

LED status(Flag)

each bit 1 : ON, 0 : OFF

0 ~ 3 bit = AL1 ~ 4

4  bit = MINUS,

5 ~ 7 bit = reserved.

<Table 2> Data saving address and contents for read command

HD-2200 Integrator & Batch Counter communication driver store the same data in WORD, DWORD, FLOAT memory, but the data format are different.

 If you click the icon  in protocol option part, you can see the dialogue box such as <Figure 2>. you can also set read schedule by using this part.

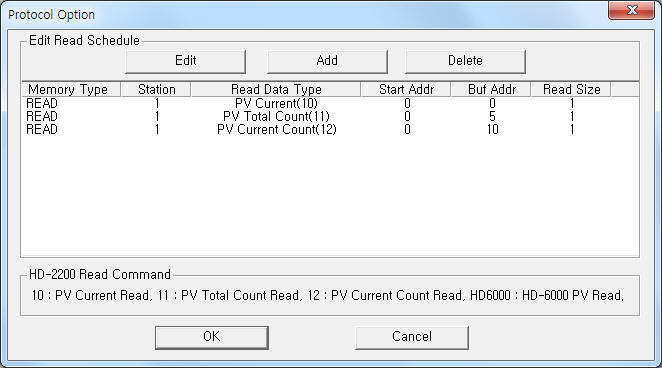

<Figure 2> Example of HD-2200 Integrator & Batch Counter communication driver¡¯s Option dialogue box

You can set read schedule by using , , button and listbox of <Figure 2>.

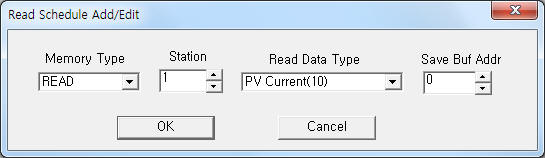

<Figure 3> Example of HD-2200 Integrator & Batch Counter communication driver¡¯s read schedule Add/Edit dialogue box

When you click Add button or Edit button in dialogue box of <Figure 2>, dialogue box of <Figure 3> is shown.



2. Writing settings

HD-2200 Integrator & Batch Counter communication driver don't support 'Writing settings'.



3. Connection of main power and communication cable

 Connection of main power and communication cable are as follows.



Connection of main power

Please connect 85 ~ 264V 50/60HZ AC main power to 12, 13 connector such as <Figure 4>.

<Figure 5>, <Figure 6> are appearance of  HD-2200 and HD-6000 controller.

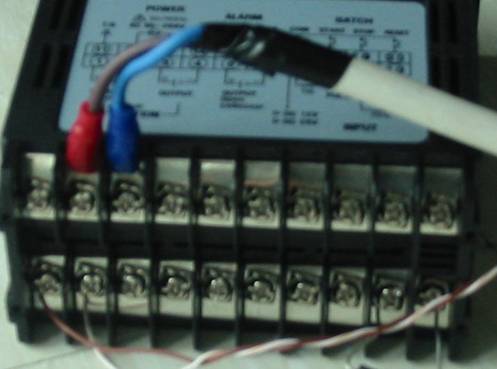

<Figure 4> Connection example of main power and communication cable to  HD-2200 Integrator & Batch Counter controller

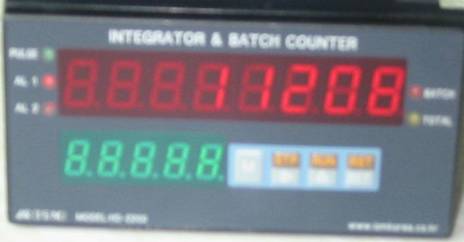

<Figure 5> Appearance of HD-2200 Integrator & Batch Counter controller

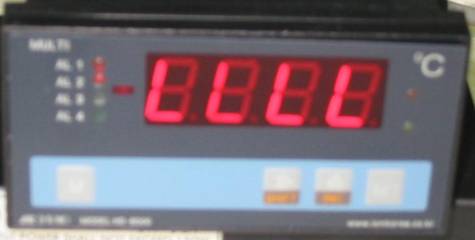

<Figure 6> Appearance of HD-6000 controller

Connection of communication cable

Please connect RS-485 communication cable to 1, 2 connector such as <Figure 4>.

RS-485 of computer            HD-2200 Integrator & Batch Counter side

 + connector  -----------------------------------  1 connector

 - connector   -----------------------------------  2 connector



4. Setting of station number

Station number of HD-2200 Integrator & Batch Counter controller can set by using front panel's operation button such as follows.

1) Press 'M' button, then will be 'On' Sum value LED.

2) Press 'STP' and 'RUN' button at the same time. Then will be displayed 'type setting' menu.

3) Please 'M' button continuously until the 'Addr' shown.

4) Please set address by using 'STP', 'RUN' button.

5) Press 'RST/SET' button, then return to normal mode.
