GS-500F Master communication driver is driver to communicate with GS-500F controller of Kotech Co., Ltd. in Korea.

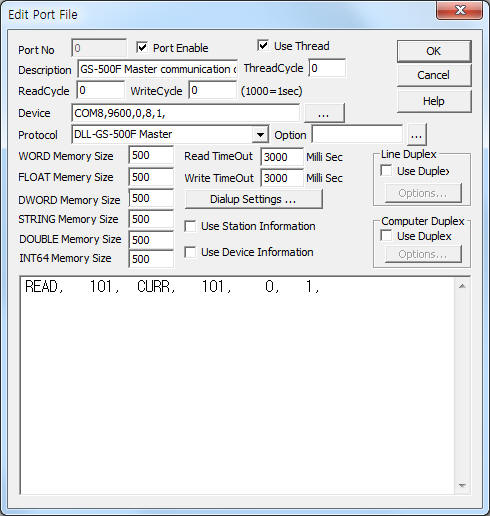

<Figure 1> is read setting example of GS-500F Master communication driver.
|
|
| <Figure 1> Read setting example of GS-500F Master communication driver |
Device part of <Figure 1> input Com Port(COM1), Baud Rate(9600), Parity Bit(0), Data Bit(8), Stop Bit(1) respectively.
Read schedule of GS-500F Master communication driver
Read schedule setting parameters are as follows:
1) Building Number – 0 ~ 65535 building number.
2) Read command – fixed to CURR read command.( refer to <Table 1> )
3) Room Number – 0 ~ 65535 room number.
4) Save Start Address for Communication Server – Saving start address of Communication Server.
5) Read Size – Size = Fix to 1.
Read schedule example)
READ, 101, CURR, 101, 0, 1,
<Table 1> is a description of read command and stored values of GS-500F Master communication driver.
| Read command | Contents | Stored Values | Remarks |
| CURR | Read of current value | Start Add + 0 : setting temperature Start Add + 1 : temperature of water(0 ~ 99) Start Add + 2 : temperature of out-water(0 ~ 99) Start Add + 3 : calorimeter heating supply temperature(0 ~ 99) Start Add + 4 : calorimeter water exchange temperature(0 ~ 99) Start Add + 5 : GS3100 heating supply temperature(0 ~ 99) Start Add + 6 : GS3100 water exchange temperature(0 ~ 99) Start Add + 7 : main flow(0 ~ 99.9) Start Add + 8 : calorific value(double word) Start Add + 9 : position value of driver(0 ~ 9000) Start Add + 10: reserved |
save at WORD, DWORD, FLOAT, DOUBLE memory, main flow = float value (refer to FLOAT, DOUBLE memory) |
| <Table 1> Read command and stored values of GS-500F Master communication driver | |||
GS-500F Master communication driver store the same data in WORD, DWORD, FLOAT, DOUBLE memory, but the data formats are different.

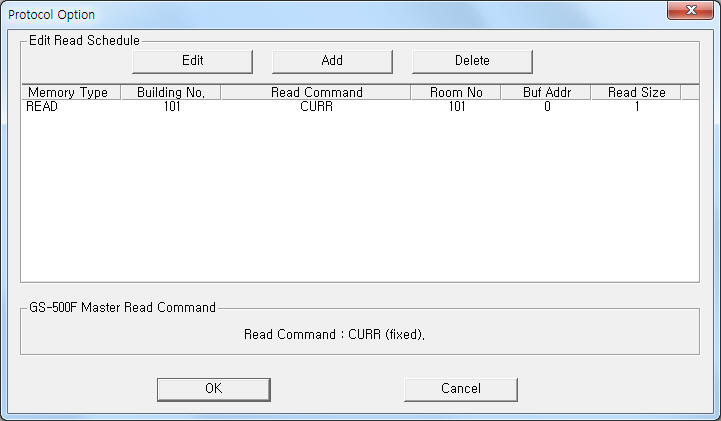

If you click the icon
in protocol option part, you can see the dialogue
box such as <Figure 2>. you can also set read schedule by using this part.
 |
| <Figure 2> Example of GS-500F Master communication driver’s Option dialogue box |
You can also set read schedule by using
,
,
button and listbox of <Figure 2>.
 |

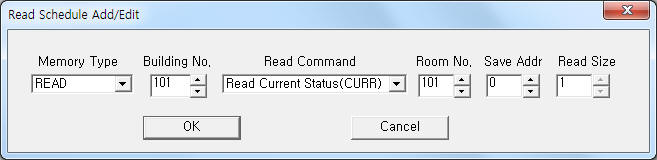

| <Figure 3> Example of GS-500F Master communication driver’s read schedule Add/Edit dialogue box |
When you click Add button or Edit button in dialogue box of <Figure 2>, dialogue box of <Figure 3> will be shown.
GS-500F Master communication driver don't support 'Write settings'.

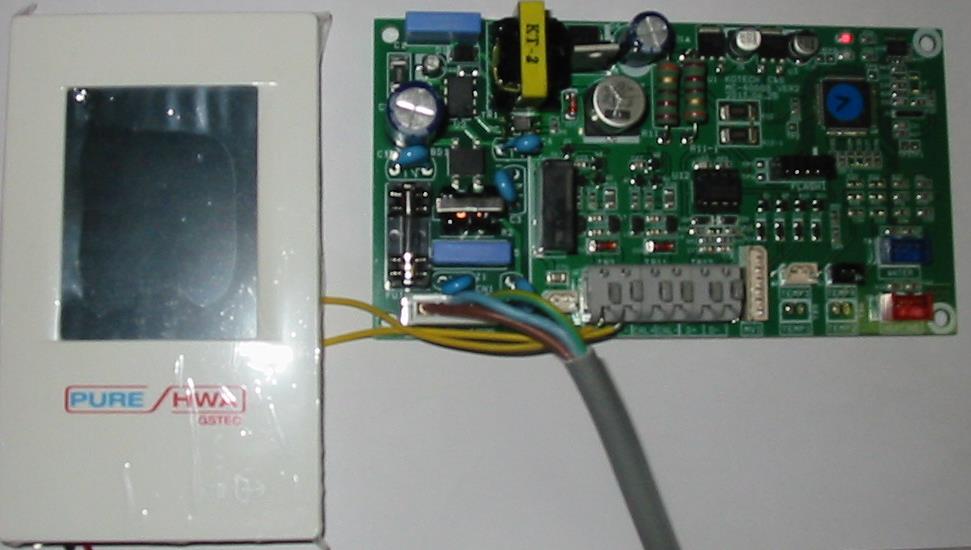

<Figure 4> shows the appearance of GS-500F controller.
 |
| <Figure 4> Appearance of GS-500F controller |
