GMPC II communication driver is the driver to communicate with power meter GIMAC/GIMACII/GIMACIII/GIPAM115 FI model of LSIS Co., Ltd. in Korea.
GIPAM115 FI model communicate with GMPC controller( GMPC I, GMPC II, GMPC III, GMPC V, ... ) and computer read and write GMPC's data.

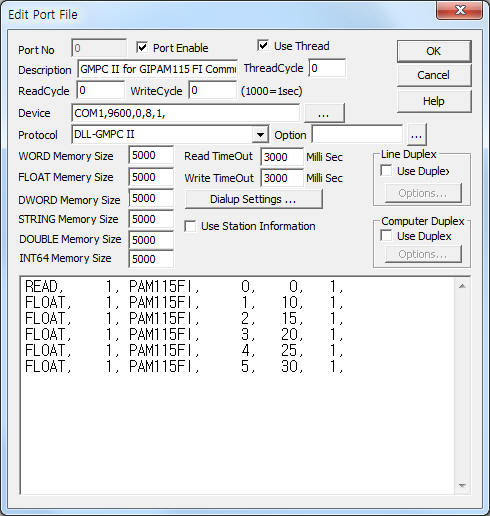

<Figure 1> is read setting example of GMPC II communication driver for GIPAM115 FI model.
|
|
| <Figure 1> Read setting example of GMPC II communication driver for GIPAM115 FI model |
Device part of <Figure 1> input Com Port(COM1 or TCP/IP, UDP/IP, etc), Baud Rate(9600), Parity Bit(0), Data Bit(8), Stop Bit(1) respectively according to setting of GMPC.
Baud rate, parity bit, data bit, stop bit can set by using switch of rear or front panel(GMPC controller).
GMPC II communication driver read schedule for GIPAM115 FI
Read schedule setting parameters are as follows:
1) STATION – GIPAM115 FI controller station number = 0 ~ 255.
2) Controller Model – Model = PAM115FI (when using GIPAM115 FI model).
3) Read data type – Data type = 0, 1, 2, 3.... ( Cmd - 10h, refer to reference manual of GIPAM115 FI )
4) Save Start Address for Communication Server – saveing start address of Communication Server.
5) Read Size – Read size. Fixed according to read data type. ( Refer to <Table 1> ~ <Table 2> )
6) Sub1 command - Input Sub1 command according to controller model.
7) Sub2 command - Input Sub 2 command according to controller model.
Read schedule example)
READ, 1, PAM115FI, 0, 0, 1,
FLOAT, 1, PAM115FI, 1, 10, 1,
FLOAT, 1, PAM115FI, 2, 15, 1,
FLOAT, 1, PAM115FI, 3, 20, 1,
FLOAT, 1, PAM115FI, 4, 25, 1,
FLOAT, 1, PAM115FI, 5, 30, 1,
<Table 1> is data saving address and contents for each read command.
<Table 2> is each bit value for I/O status read command.
Note) Data type = Cmd number - 10h. Please refer to GPAM115 FI reference manual for more information about Cmd, Sub1, Sub2, etc.
GIPAM115FI model setting method : Select '4 COMM SETTING' by using SET or RUN button of GIPAM115FI front panel.
Then select '6 I-NET TYPE' and set 'G115FI' model.
| Data type | Sub1 | Sub2 | Contents | Data size and unit | Data Saving Address |
0 |
- |
Read of I/O status |
9 BYTE ( Bit data ) |
Refer to <Table 2> |
|
1 |
Read of R, S, T phase current |
3 Float daa |
Start Add + 0 ~ 2 : Ir, Is, It phase current |
||
2 |
Read of Vab, Vbc, Vca voltage |
Start Add + 0 ~ 2 : Vrs, Vst, Vtr voltage |
|||
3 |
Power factor,active/reactive power |
Start Add + 0 ~ 2 : power factor,total active/reactive power |
|||
4 |
Frequency, amount of total active/reactive power |
Start Add + 0 ~ 2 : frequency, amount of total active/reactive power |
|||
5 |
Read of Va, Vb, Vc phase voltage |
Start Add + 0 ~ 2 : Vr, Vs, Vt voltage |
|||
6 |
zero-phase sequence voltage, max zero-phase sequence voltage |
2 Float data |
Start Add + 0 : zero-phase sequence voltage Start Add + 1 : max zero-phase sequence voltage |
||
7 |
0 |
0 |
phase difference |
3 Float data |
Start Add + 0 ~ 2 : phase difference Va-Ia, Vb-Ib, Vc-Ic |
7 |
0 |
1 |
Zero-phase sequence phase difference |
2 Float data |
Start Add + 0 ~ 1 : zero-phase sequence phase difference |
8 |
|
|
Number of CB ON, CB ON time |
WORD, DWORD data |
Start Add + 0 : number of CB ON Start Add + 1 : CB ON time |
13(0Dh) |
- |
Relay Setting data |
BYTE, WORD data |
Start Add + 0 : grequency(0 = 60Hz, 1 = 50Hz) Start Add + 1 : phase wiring method (0 = 3P4W, 1 = 3P3W, 2 = 1P3W, 3 = 1P2W) Start Add + 2 : CT 1st Start Add + 3 : CT 2nd Start Add + 4 : PT 1st Start Add + 5 : PT 2nd |
|
14(0Eh) |
1 |
0 |
Read of OCR Setting |
BYTE, WORD data |
Start Add + 0 : use or don't use(AAh = use, 55h = don't use) Start Add + 1 : instantaneous operation value(x 100, 0 = don't use) Start Add + 2 : time delay operation value(x 100, 0 = don't use) Start Add + 3 : instantaneous operating time(x 100) Start Add + 4 : time delay operating time(x 100) Start Add + 5 : time delay operation characteristic curve (0 = D2, 1 = D4, 2 = D8, 3 = SI, 4 = VI, 5 = EI, 6 = LI) Start Add + 6 : contact output mode (0 = don't use, 1 = Alarm, 2 = TRIP) |
14(0Eh) |
2 |
0 |
Read of OCGR Setting |
BYTE, WORD data |
Start Add + 0 : use or don't use(AAh = use, 55h = don't use) Start Add + 1 : instantaneous operation value(x 100, 0 = don't use) Start Add + 2 : time delay operation value(x 100, 0 = don't use) Start Add + 3 : Block use or don't use(AAh = use, 55h = don't use) Start Add + 4 : instantaneous operating time(x 100) Start Add + 5 : time delay operating time(x 100) Start Add + 6 : Block duration time(x 100) Start Add + 7 : time delay operation characteristic curve (0 = D2, 1 = D4, 2 = D8, 3 = SI, 4 = VI, 5 = EI, 6 = LI) Start Add + 8 : contact output mode (0 = don't use, 1 = Alarm, 2 = TRIP) |
14(0Eh) |
3 |
0 |
Read of OVR Setting |
BYTE, WORD data |
Start Add + 0 : use or don't use(AAh = use, 55h = don't use) Start Add + 1 : instantaneous operation value(x 100, 0 = don't use) Start Add + 2 : time delay operation value(x 100, 0 = don't use) Start Add + 3 : instantaneous operating time(x 100) Start Add + 4 : time delay operating time(x 100) Start Add + 5 : contact output mode (0 = don't use, 1 = Alarm, 2 = TRIP) |
14(0Eh) |
4 |
0 |
Read of UVR Setting |
BYTE, WORD data |
Start Add + 0 : use or don't use(AAh = use, 55h = don't use) Start Add + 1 : instantaneous operation value(x 100, 0 = don't use) Start Add + 2 : time delay operation value(x 100, 0 = don't use) Start Add + 3 : use or don't use of low voltage Lock (AAh = use, 55h = don't use) Start Add + 4 : instantaneous operating time(x 100) Start Add + 5 : time delay operating time(x 100) Start Add + 6 : contact output mode (0 = don't use, 1 = Alarm, 2 = TRIP) |
14(0Eh) |
5 |
0 |
Read of OVGR Setting |
BYTE, WORD data |
Start Add + 0 : use or don't use(AAh = use, 55h = don't use) Start Add + 1 : instantaneous operation value(x 100, 0 = don't use) Start Add + 2 : time delay operation value(x 100, 0 = don't use) Start Add + 3 : instantaneous operating time(x 100) Start Add + 4 : time delay operating time(x 100) Start Add + 5 : contact output mode (0 = don't use, 1 = Alarm, 2 = TRIP) |
14(0Eh) |
6 |
0 |
Read of SGR Setting |
BYTE, WORD data |
Start Add + 0 : use or don't use(AAh = use, 55h = don't use) Start Add + 1 : use or don't use of GR(AAh = use, 55h = don't use) Start Add + 2 : correction value of voltage(x 100) Start Add + 3 : correction value of current(x 100) Start Add + 4 : correction value of phase difference(x 1), fixed to 45 Start Add + 5 : time delay operating time(x 100) Start Add + 6 : contact output mode (0 = don't use, 1 = Alarm, 2 = TRIP) |
14(0Eh) |
7 |
0 |
Read of POR Setting |
BYTE, WORD data |
Start Add + 0 : use or don't use(AAh = use, 55h = don't use) Start Add + 1 : instantaneous operation value(x 100, 0 = don't use) Start Add + 2 : time delay operation value(x 100, 0 = don't use) Start Add + 3 : instantaneous operating time(x 100) Start Add + 4 : time delay operating time(x 100) Start Add + 5 : contact output mode (0 = don't use, 1 = Alarm, 2 = TRIP) |
15(0Fh) |
0 |
0 |
Read of out of order data |
WORD, DWORD data |
Start Add + 0 : High word of Fault Record content Start Add + 1 : Low word of Fault Record content Start Add + 2 : day Start Add + 3 : hour Start Add + 4 : minute Start Add + 5 : second Start Add + 6 : milli second( 1/100 second ) |
15(0Fh) |
0 |
1 ~ 4 |
Read of out of order data 1 ~ 4 |
3 Float data |
out of order 1 : Vr, Vs, Vt, out of order 2 : Vo, Ir, Is out of order 3 : voltage unblanced factor of It, Io out of order 4 : phase difference of voltage, current r, s, t |
15(0Fh) |
0 |
5 |
Read of out of order data 5 |
1 Float data |
Start Add + 0 : phase difference between zero-phase sequence voltage and zero-phase sequence current |
12(0Ch) |
- |
Read of SOE data |
WORD, DWORD data |
Start Add + 0 : High word of Fault Record content Start Add + 1 : Low word of Fault Record content Start Add + 2 : day Start Add + 3 : hour Start Add + 4 : minute Start Add + 5 : second Start Add + 6 : milli second( 1/100 second ) |
|
| <Table 1> Data saving address and contents for each read command | |||||
Data Saving Address |
Bit value for each bit |
Remarks |
Start Add + 0 |
7 Bit = SOE, 6 ~ 4Bit = -, 3 Bit = L/R, 2 ~ 1 Bit = -, 0 Bit = Calib, |
SOE Event : 0 = don't exist, 1 = exist Calib : 1 = Calibrated status |
Start Add + 1 |
7 Bit = Pick-up, 6 ~ 3 Bit = -, 2 Bit = Aux_DI, 1 Bit = DI_CB Off, 0 Bit = DI_CB On, |
Pick-up 상태 : 0 = Normal, 1 = Pick-up |
Start Add + 2 |
7 ~ 2 Bit = -, 1 Bit = L/R DO, 0 Bit = POR, |
Remote = 1, Local = 0 |
Start Add + 3 |
7 Bit = OVGR, 6 Bit = UVR, 5 Bit = OVR, 4 Bit = GR, 3 Bit = OCR, 2 Bit = Alarm, 1 Bit = CB Close, 0 Bit = CB Open, |
|
Start Add + 4 |
7 ~ 1 Bit = -, 0 Bit = POR-H, |
|
Start Add + 5 |
7 Bit = POR-L, 6 Bit = SGR, 5 Bit = 64H, 4 Bit = 64L, 3 Bit = 27PH-C, 2 Bit = 27PH-B, 1 Bit = 27PH-A, 0 Bit = 27PL-C, |
|
Start Add + 6 |
7 Bit = 27PL-B, 6 Bit = 27PL-A, 5 Bit = 59PH-C, 4 Bit = 59PH-B, 3 Bit = 59PH-A, 2 Bit = 59PL-C, 1 Bit = 59PL-B, 0 Bit = 59PL-A, |
|
Start Add + 7 |
7 Bit = 50G, 6 Bit = 51G, 5 Bit = 50P-C, 4 Bit = 50P-B, 3 Bit = 50P-A, 2 Bit = 51P-C, 1 Bit = 51P-B, 0 Bit = 51P-A, |
|
Start Add + 8 |
Fixed to 93h |
|
| <Table 2> Each bit value for I/O status read command | ||
GMPC II communication driver store the same data in WORD, DWORD, FLOAT memory, but the data format are different.
If you click the icon
in protocol option part, you
can see the dialogue box such as <Figure 2>. you can also set read schedule by
using this part.
 |

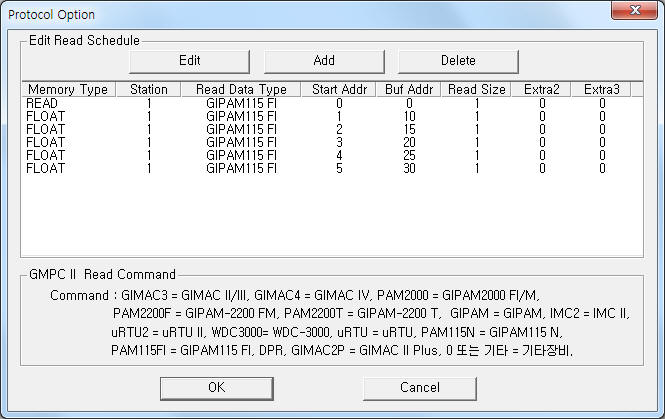

| <Figure 2> Example of GMPC II communication driver’s Option dialogue box |
You can set read schedule by using
,
,
button and listbox of <Figure
2>.
 |

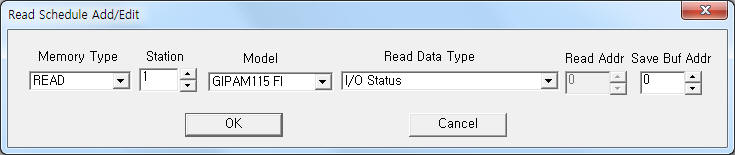

| <Figure 3> Example of GMPC II communication driver’s read schedule Add/Edit dialogue box |
When you click Add button or Edit button in dialogue box of <Figure 2>, dialogue box of <Figure 3> is shown.
You can write GIPAM115 FI equipment's setting value by using write settings.
Note) Write for GIPAM115 FI can control when the equipment's setting is 'remote'.
Digital Write
Digital write setting parameters are as follows:
1) PORT Port no. (0 ~ 255)
2) STATION GIPAM115 FI controller station number = 0 ~ 255.
3) ADDRESS Setting control or reset type(hex-decimal unit) number, refer to <Table 3>.
4) Extra1 Model name = PAM115FI . ( GIPAM115 FI model )
5) Extra2 Don't care.
Address |
Command contents |
Remarks |
0000 |
CB Close |
control command you can only control when 'remote mode' |
0001 |
CB Open |
|
0002 |
Relay Fault Reset |
Reset command |
0003 |
Clear WH |
|
0004 |
Clear VARH |
|
0005 |
Clear All SOE Data |
|
0006 |
Clear CB On Counter |
|
0007 |
Clear CB On Time |
|
0008 |
Clear VO. Max |
|
0009 |
Clear Backup Data |
|
000A |
Clear All Fault Record |
|
| <Table 3> Setting element and command contents for Digital write | ||
Write example 1)
PORT : 0 Station : 1, ADDRESS : 0000, EXTRA1 : PAM115FI, EXTRA2 : 0
The setting parameter shown above is CB Close control example for 1 controller station GIPAM115 FI.
CB Close write command can control when the controller's setting is 'remote'.
Write example 2)
PORT : 0 Station : 1, ADDRESS : 0001, EXTRA1 : PAM115FI, EXTRA2 : 0
The setting parameter shown above is CB Open control example for 1 controller station GIPAM115 FI.
CB Open write command can control when the controller's setting is 'remote'.
Write example 3)
PORT : 0 Station : 1, ADDRESS : 0002, EXTRA1 : PAM115FI, EXTRA2 : 0
The setting parameter shown above is Relay Fault reset example for 1 controller station GIPAM115 FI.
Analog Write
GMPC II communication driver for GIPAM115 FI model don't support analog write.
Connection of main power and communication cable are as follows.
Connection of main power

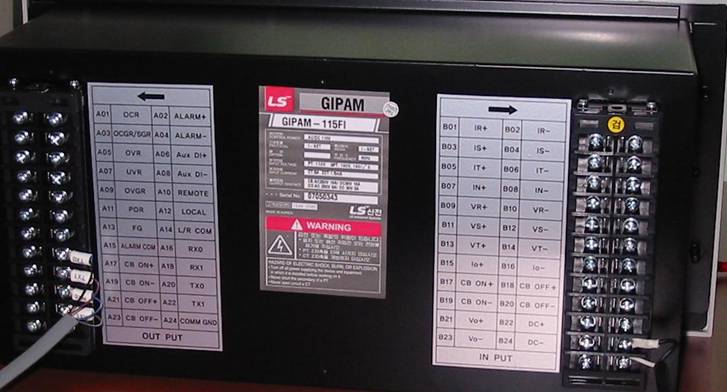

Please connect 110 V AC or DC main power to B22, B24 connector at GIPAM115 FI controller's rear panel such as <Figure 4>.

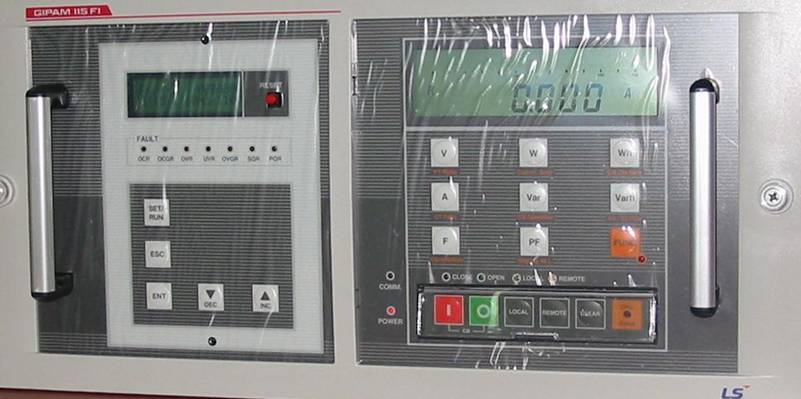

<Figure 5> is appearance of GIPAM115 FI controller.
 |
| <Figure 4> Connection example of main power and communication cable to GIMAC-IV controller |
 |
| <Figure 5> Appearance of GIPAM115 FI controller |
Connection of I-NET communication cable
Please connect I-NET RS-485 communication cable to A16 ( Rx1 ), A18 ( Rx0 ), A20 ( Tx1 ), A22 ( Tx0 ) connector such as <Figure 4>.
Note) When you connect GIPAM115 FI and GMPC, you have to connect Rx = Tx, Tx = Rx respectively. ( I-NET cable = offered by LSIS Co., Ltd. when you buying GMPC or GIPAM115 FI)
Connection of GMPC V almost equal with GMPC III. So you can refer to connection of GMPC III part.

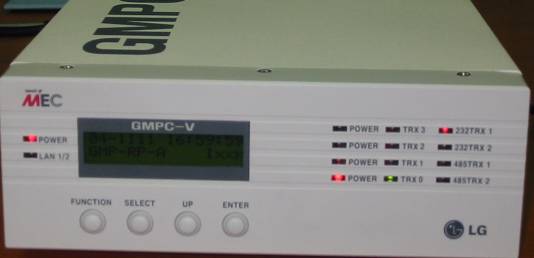

<Figure 6> is apperance of GMPC V controller.
 |
| <Figure 6> Apperance of GMPCV controller |
Note) Password input method : you can input 'password' by using 4 button of frong panel. ( Inital(default) Password : press 'FUNCTION', 'SELECT', 'UP', 'ENTER' button 2 times by turns )
Setting of GMPC V)
1. Time & Date : Date and Time setting of GMPC V.
2. Model : Model, protocol and communication method of GMPC V.
Model | Protocol : select GMP(I-NET protocol of GMPC) or MODBUS protocol,
Model | Media : select communication media of GMPC V.
Model | Main Port : select Primary(P) or Secondary(S).
3. Serial : select Com1 or Com2 port of GMPC V.
4. Network(This) : select LAN1, LAN2 Ethernet port.
Network(This) | Ethernet Port : select primary ethernet port of GMPC V.
Network(This) | IP_0 : input IP Address of Primary Ethernet,
Network(This) | Port_0 No_0 : input Port number of Primary Ethernet,
Network(This) | Netmask_0 : input Subnet mask of Primary Ethernet,
Network(This) | Gateway_0 : input Gateway IP Address of Primary Ethernet,
Network(This) | Host_IP0 : input Host(PC, etc) IP Address of Primary Ethernet.
After setting GMPC V controller, save the setting by using 'ENTER' button.
Also, you have to reset(power off and power on) in order to apply the setting value. (don't reset, GMPC V use the old setting value)
Note) When you using the 'Ethernet' communication, you have to set Host(PC, etc) IP address at GMPC V controller.
Also if you don't use gateway at network, please set 'Gateway' IP address to '0.0.0.0'.
Note) You must input power for the first time of GIMAC-IV, etc, and input power GMPC V.
If you input power GMPC V the first and input GIMAC-IV, etc, GMPC V can't find connected equipment. So it may not be able to communicate with connected equipment.
