GMPC II communication driver is the driver to communicate with power meter GIPAM of LSIS Co., Ltd. in Korea.

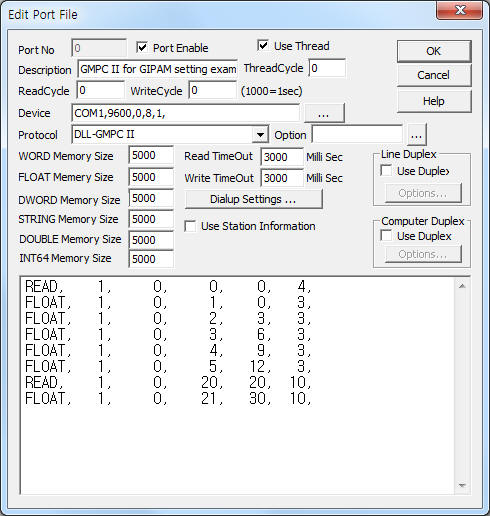

<Figure 1> is read setting example of GMPC II communication driver for GIPAM model.
<Figure 1> Read setting example of GMPC II communication driver for GIPAM model |
Device part of <Figure 1> input Com Port(COM1), Baud Rate(9600), Parity Bit(0), Data Bit(8), Stop Bit(1) respectively according to setting of GMPC.
Baud rate, parity bit, data bit, stop bit can set by using switch of rear panel(GMPC controller).
GMPC II communication driver read schedule for GIPAM
Read schedule setting parameters are as follows:
1) STATION – GIMAC controller station number = 0 ~ 255.
2) Controller Model – Model = 0 -GIPAM.
3) Read data type – Data type = 0, 1, 2, 3, 4, 5....
4) Save Start Address for Communication Server – saveing start address of Communication Server.
5) Read Size – Read size. Fixed according to read data type. ( Refer to <Table 1> )
Read schedule example)
READ, 1, 0, 0, 0, 4,
FLOAT, 1, 0, 1, 0, 3,
FLOAT, 1, 0, 2, 3, 3,
FLOAT, 1, 0, 3, 6, 3,
FLOAT, 1, 0, 4, 9, 3,
FLOAT, 1, 0, 5, 12, 3,
READ, 1, 0, 20, 20, 10,
FLOAT, 1, 0, 21, 30, 10,
<Table 1> is read data type and contents for GIPAM model.
<Table 2> is data saving address and contents of '0' read data type for GIPAM.
Read Data Type | Contents | Data Unit | Data Size |
0 |
Read status of contact |
WORD |
4 |
1 |
IR,IS,IT |
FLOAT |
3 |
2 |
VRS,VST,VRT |
||
3 |
PF,W,VAR |
||
4 |
FREQ,WH,VARH |
||
5 |
VRN,VSN,VTN |
||
6 |
Vo,VoMAX |
2 |
|
20 |
Read of measurement setting value |
WORD |
8 |
21 |
OCR/OCGR setting value |
FLOAT |
9 |
22 |
OVR/UVR setting value |
6 |
|
23 |
OVGR/SGR setting value |
8 |
|
<Table 1> Read data type and contents for GIPAM model |
Data Saving Address | Bit position | Contents | Remarks |
0 |
7 |
Lr(time over) |
Out of order or error status of system |
6 |
Ls(time over) |
||
5 |
Lt(time over) |
||
4 |
Ln(time over) |
||
3 |
Lr(instantaneous) |
||
2 |
Ls(instantaneous) |
||
1 |
Lt(instantaneous) |
||
0 |
Ln(instantaneous) |
||
1 |
7 |
OVR |
Out of order or error status of system |
6 |
UVR |
||
5 |
OVGR(time over) |
||
4 |
SGR |
||
3 |
OVGR(time over) |
||
0 |
SYS Error |
||
2 |
4 |
Output status of CB ON |
GIPAM's contact status for Circuit Breaker |
3 |
Output status of CB OFF |
||
2 |
0 – Local, 1 – Remote |
||
1 |
Input status of CB ON |
||
0 |
Input status of CB OFF |
||
3 |
7 |
Event Occurred (Event history when setting) |
Changed when reset or clear |
6 |
Change of relay setting |
||
5 |
Reset of local fault |
||
4 |
Reset of remote fault |
||
3 |
Clear local(0) / Remote(1) |
||
<Table 2> Data saving address and contents of '0' read data type for GIPAM (Data of 4 byte) |
Data Saving Address | Contents | Remarks |
0 |
CT : rated current |
|
1 |
PT : rated voltage |
|
2 |
CONNECTION : wiring method |
|
3 |
Selected relay element status |
BIT 7 - OCGR BIT 6 - OVR BIT 5 - UVR BIT 4 - OVGR BIT 3 - SGR |
4 |
CB Operaton |
|
5 |
CB ON Time |
|
6 |
CB ON Time |
|
7 |
Over Flow |
|
<Table 3> Data saving address and contents of '20' read data type for GIPAM (Data of 8 word) |
Data Saving Address | Relay element | Contents | Remarks |
0 |
OCR |
time over current |
|
1 |
OCR |
instantaneous current |
|
2 |
OCR |
characteristic |
0 : D2 , 1: D4 , 2:D8, 3:SI, 4: VI, 5 : EI, 6:LI |
3 |
OCR |
operating time |
|
4 |
OCGR |
time over current |
|
5 |
OCGR |
instantaneous current |
|
6 |
OCGR |
characteristic |
0 : D2 , 1: D4 , 2:D8, 3:SI, 4: VI, 5 : EI, 6:LI |
7 |
OCGR |
operating time |
|
8 |
OCGR |
mode |
0:XX , 1 :
|
<Table 4> Data saving address and contents of '21' read data type for GIPAM (Data of 9 float) |
Data Saving Address |
Relay element |
Contents |
Remarks |
0 |
OVR |
voltage |
|
1 |
OVR |
operating time |
|
2 |
OVR |
mode |
0 : XX, 1:
|
3 |
UVR |
voltage |
|
4 |
UVR |
operating time |
|
5 |
UVR |
mode |
0 : XX, 1:
|
<Table 5> Data saving address and contents of '22' read data type for GIPAM (Data of 6 float) |
Data Saving Address |
Relay element |
Contents |
Remarks |
0 |
OVGR |
ime over voltage |
|
1 |
OVGR |
instantaneous voltage |
|
2 |
OVGR |
operating time |
|
3 |
OVGR |
mode |
0 : XX, 1:
|
4 |
SGR |
current |
|
5 |
SGR |
voltage |
|
6 |
SGR |
operating time |
|
7 |
SGR |
mode |
0 : XX, 1:
|
<Table 6> Data saving address and contents of '23' read data type for GIPAM (Data of 8 float) |
You can control GIPAM equipment by using write settings.
Note) You can write when the GIPAM controller setting is 'REMOTE'.
Digital Write
Digital write setting parameters are as follows:
1) PORT Port no. (0 ~ 255)
2) STATION GIPAM controller station number = 0 ~ 255.
3) ADDRESS Control type.
EXTRA1 = GIPAM, GIPAM2, space , ....
0000 - CB ON
0001 - CB OFF
0002 - FAULT RESET
0003 - WH CLEAR
0004 - VARH CLEAR
0005 - HISTORY CLEAR
0006 - CB ON Ƚ¼ö CLEAR
0007 - CB ON Time Clear
0008 - Vo MAX Clear
0009 - All Back Up Data Clear
EXTRA1 = CB, CBON, CBOFF - Don't care.
4) Extra1 GIPAM model or CB ON/OFF command.
5) Extra2 Don't care.
Note) You can control CB ON, CB OFF, etc when the GIPAM controller setting is 'REMOTE'.
Write example 1)
PORT : 0 Station : 1, ADDRESS : 0000, EXTRA1 : GIPAM2, EXTRA2 : 0
The setting parameter shown above is a CB ON control example for 1 station number of GIPAM II controller.
Write example 2)
PORT : 0 Station : 1, ADDRESS : 0001, EXTRA1 : GIPAM2, EXTRA2 : 0
The setting parameter shown above is a CB OFF control example for 1 station number of GIPAM II controller.
Write example 3)
PORT : 0 Station : 1, ADDRESS : 0000, EXTRA1 : CB, EXTRA2 : 0
The setting parameter shown above is a CB ON/OFF control example for 1 station number of GIPAM II controller.
Write example 4)
PORT : 0 Station : 1, ADDRESS : 0000, EXTRA1 : , EXTRA2 : 0
The setting parameter shown above is a CB ON control example for 1 station number of GIPAM(before 2001 GIPAM model) controller.
Write example 5)
PORT : 0 Station : 2, ADDRESS : 0002, EXTRA1 : GIPAM2, EXTRA2 : 0
The setting parameter shown above is a fault reset example for 2 station number of GIPAM II controller.
Analog Write
GMPC II communication driver for GIPAM don't support 'Analog Write'.
